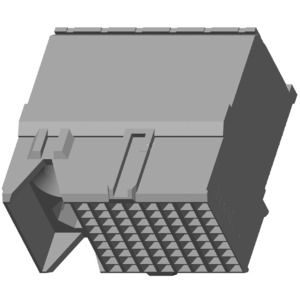

Molex / Waldom 76170-3008

mpn76170-3008
brandname: Molex Incorporated
manufacturername: Molex Incorporated

76170-3008, Molex/Waldom (5 Items)

76170-3008, Molex/Waldom (5 Items)

zoom

Brand: Molex / Waldom
PartNumber: 76170-3008
Model: 98298-0004
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Base Product Number	076170
Category	Connectors, Interconnec.
Color	Black
Connector Style	Impact, Guide Left
Connector Type	Receptacle, Female Sock.
Connector Usage	-
Contact Finish	Gold
Contact Finish Thickness	30.0?in (0.76?m)
Contact Layout, Typical	24 Differential Pairs
Current Rating	0.75 A
Current Rating (Amps)	-
Description	CONN RCPT IMPACT 72POS .
Detailed Description	72 Connector Receptacle.
Digi-Key Part Number	0761703008-ND
Family Name	Impact
Features	-
Impedance	100 Ohm
Manufacturer	Molex
Manufacturer Product Nu.	0761703008
Manufacturer Standard L.	13 Weeks
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Board Edge, Through Hol.
Number of Circuits	72
Number of Columns	8
Number of Contacts	72
Number of Pairs	3
Number of Positions	72
Number of Positions Loa.	All
Number of Rows	9
Operating Temperature	-55?C ~ 85?C, -55 - 85 C
Orientation	Right Angle
Package	Tray
Pitch	0.053" (1.35mm)
Plating Material	Gold
Primary Type	Impact Backplane Connec.
Product Status	Active
Series	Impact 76170, 76170 Ser.
Temperature Range	-55 to 85 C
Termination	Through Hole, Press-Fit
Type	PCB Receptacle
Voltage Rating	30V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Avnet	76170-3008	6.66667	231	In Stock		Molex		6.66667 @ 231
	Waldom	MOLEX 76170-3008	8.25	10	69		MOLEX		8.25 @ 10
	Digi-Key	4554209	10.23303	231	In Stock		Molex		10.23303 @ 231
	jensentools.com	10196782	10.27	1	69		Molex		10.27 @ 1
	Newark	95W2213	11.64	231	In Stock		MOLEX		11.64 @ 100
	us.rs-online.com	71466181	13.72	1	In Stock		Molex Incorporated		13.72 @ 1
