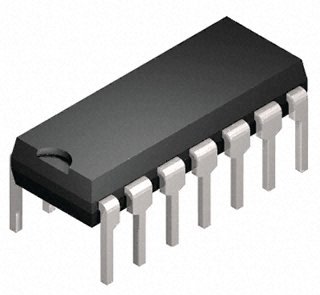

Texas Instruments TLC2274IN

TLC2274IN

TLC2274INzoom

Attributes

Key Value
Alternate Part No.595-TLC2274IN
Amplifier TypeGeneral Purpose, Low No.
Bandwidth2.2MHz
Base Product NumberTLC2274
BrandTEXAS INSTRUMENTS
CaseDIP14
CategoryIntegrated Circuits (IC.
CMRR - Common Mode Reje.70 dB
Current - Input Bias1 pA
Current - Output / Chan.50 mA
Current - Supply4.8mA (x4 Channels)
DescriptionIC OPAMP GP 4 CIRCUIT 1.
Detailed DescriptionGeneral Purpose Amplifi.
Digi-Key Part Number296-7132-5-ND
Dual Supply Voltage+/- 3 V, +/- 5 V
en - Input Voltage Nois.50 nV
Gain Bandwidth Product2.25 MHz
GBP - Gain Bandwidth Pr.2.18 MHz
Ib - Input Bias Current60 pA
Input offset voltage1.5mV
Integrated circuit feat.rail-to-rail output
Kind of packagetube
ManufacturerTEXAS INSTRUMENTS
Manufacturer Part No.TLC2274IN
Manufacturer Product Nu.TLC2274IN
Manufacturer Standard L.6 Weeks
Maximum Dual Supply Vol.+/- 8 V
Maximum Operating Tempe.+ 125 C
MfrTEXAS INSTRUMENTS
Minimum Dual Supply Vol.+/- 2.2 V
Minimum Operating Tempe.- 40 C
MountingTHT
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of channels4
Number of Channels4 Channel
Number of Circuits4
Operating Supply Voltage4.4 V to 16 V, +/- 2.2 .
Operating temperature-40...125?C
Operating Temperature-40?C ~ 125?C (TA)
Output Current per Chan.50 mA
Output TypeRail-to-Rail
Packagetube
Package / Case14-DIP (0.300", 7.62mm)
Package/CasePDIP-14
Packagingtube
ProductOperational Amplifiers
Product CategoryOperational Amplifiers .
Product StatusActive
SeriesTLC2274, -
ShutdownNo Shutdown
SKU451127
Slew rate3.6V/?s
Slew Rate3.6V/?s
SR - Slew Rate3.6 V/us
Supplier Device Package14-PDIP
Supply Current per Chan.6 mA
Supply Voltage - Max16 V
Supply Voltage - Min4.4 V
TechnologyLinCMOS
TypeSemiConductor
Type of integrated circ.operational amplifier
Unit Weight1 g
Voltage - Input Offset300 ?V
Voltage - Supply Span (.16 V
Voltage - Supply Span (.4.4 V
Voltage supply range? 2.2...8V DC/
Vos - Input Offset Volt.2.5 mV

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark08F90231.7630056TEXAS INSTRUMENTS1.76 @ 100
thumbzoomRadwellTLC2274IN2.4330041TEXAS INSTRUMENTS SEMI1.02.43 @ 300
thumbzoomTMETLC2274IN2.46122TEXAS INSTRUMENTS2.46 @ 1
HotendaH26918482.581317Texas Instruments2.58 @ 1
RS Delivers331-21824.272120Texas Instruments4.272 @ 1
thumbzoomswatee.comTLC2274IN4.73155Texas Instruments4.73 @ 1
Little DiodeTLC2274IN5.93312851In StockTI5.9331285 @ 1
thumbzoomDigi-Key37852514.751653Texas Instruments14.75 @ 1
