Weg Electric 01536OT3V215JPV-S

B07C9888S7

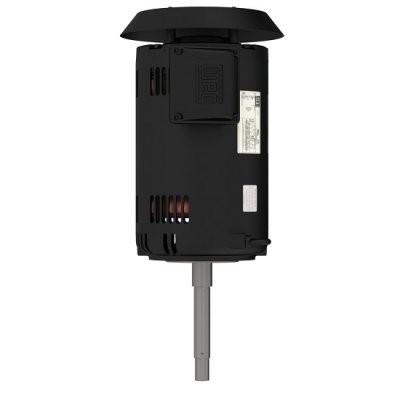

Weg Electric 01536OT3V215JPV-S, 15HP, 3600 RPM, 3PH, 200V,400V, 213/5JP Frame, C-Face Flange, Footless, Open, General Purpose Motor

Weg Electric 01536OT3V215JPV-S, 15HP, 3600 RPM, 3PH, 200V,400V, 213/5JP Frame, C-Face Flange, Footless, Open, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating19.8 A
Application TypeJet Pump (JM/JP) Motors
ClassificationJM-JP & Jet Pump
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Description:MOTOR 15HP 2P 213/5JP W.
Dimensions24.016 in L
Drive End Flange TypeC-Face
EnclosureODP, Open, IC01 - ODP
Enclosure TypeOpen Drip-Proof
Estimated Weight160.00
Family SeriesWEG Electric Motors
FL Amps19.8
FL Efficiency90.2
FlangesFlange C
Frame215JPV, 215JP, 213/5JP
Frame RemarksFootless
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower15 hp
HP15
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number01536OT3V215JPV-S
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number01536OT3V215JPV-S
MFG Part #:01536OT3V215JPV-S
Model13482984
MountingFootless (W-6), Footless
Mounting TypeFootless Vertical, Foot.
NEMA Frame213/5JP
Net Weight0 lbs
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating15 hp
Part Number01536OT3V215JPV-S
Phase3, 3 ph
Product TypePump
RPM3600, 3,600 RPM
Service Factor1.15
Speed3600 rpm
Speed (RPM)3600
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Terminal BoxLeft position
TypeClosed Couple Pump
UPC:7909322237626
Variable Torque Speed R.1000:1
Voltage200/400, 200/400 V, 200.
Voltage (AC)200 VAC
Voltage Rating200/400 VAC
Volts200/400
Weight156.990000
