- mpnADG5236BRUZ
- brandname: Analog Devices Inc.
- manufacturername: Analog Devices Inc.

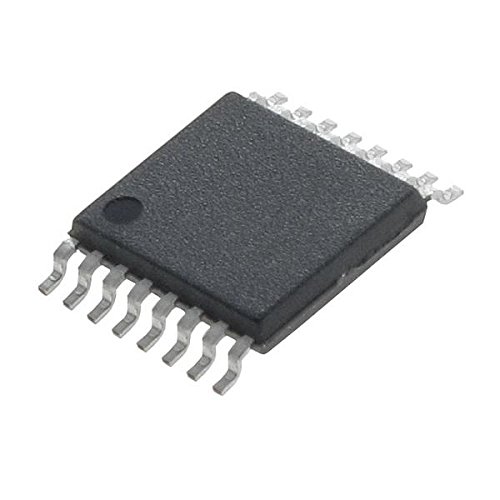

ADG5236BRUZ
- Brand: ANALOG DEVICES
- PartNumber: ADG5236BRUZ
- Size: 1 Piece
- PackageQuantity: 1
- Manufacturer: Analog Devices
- Label: Analog Devices
Attributes
| Key | Value |
|---|
| -3db Bandwidth | 266MHz |
| Alternate Part No. | 584-ADG5236BRUZ |
| Base Part Number | ADG5236 |
| Base Product Number | ADG5236 |
| Brand | Analog Devices |
| Category | Integrated Circuits (IC. |
| Channel Capacitance (CS. | 2.5pF, 12pF |
| Channel-to-Channel Matc. | 1.3Ohm |
| Channel-to-Channel Matc. | 1.3Ohm |
| Charge Injection | -0.6pC |
| Configuration | Configuration |
| Crosstalk | -85dB @ 1MHz |
| Current - Leakage (IS(o. | 100pA |
| Dimensions | Dimensions |
| Height | 1.05mm |
| Input Signal Type | Differential |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length | 5.1mm |
| Manufacturer | Analog Devices Inc. |
| Manufacturer Part No. | ADG5236BRUZ |
| Manufacturer Part Number | ADG5236BRUZ |
| Manufacturer Standard L. | 8 Weeks |
| Maximum Operating Tempe. | + 125 C, +125 ?C |
| Maximum Power Dissipati. | 1.1 mW |
| Mfr | Analog Devices Inc. |
| Minimum Operating Tempe. | -40 ?C, - 40 C |
| Mounting Style | SMD/SMT |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplex. | 2:1 |
| Number of Channels per . | 2 |
| Number of Circuits | 2 |
| Number of Inputs per El. | 1 |
| Number of Outputs per E. | 1 |
| Number of Switches | 2 |
| Off Time - Max | 160 ns |
| On Time - Max | 170 ns |
| On-State Resistance (Ma. | 160Ohm |
| Operating Supply Voltage | 22 V to 36 V |
| Operating Temperature | -40, -40?C ~ 125?C (TA) |
| Output Signal Type | Single Ended |
| Package | Tube |
| Package / Case | 16-TSSOP (0.173", 4.40m. |
| Package Type | TSSOP |
| Package/Case | TSSOP-16 |
| Packaging | Tube |
| Part Status | Active |
| Pin Count | Pin Count |
| Power Supply Type | Dual, Single |
| Product Category | Analogue Switch ICs |
| Series | -, ADG5236 |
| Standard Package | 96 |
| Stock | Stock |
| Supplier Device Package | 16-TSSOP |
| Supply Current - Max | 70 uA |
| Supply Voltage - Max | 36 V |
| Supply Voltage - Min | 22 V |
| Switch Circuit | SPDT |
| Switch Configuration | SPDT |
| Switch Current - Max | 35 mA |
| Switch Time (Ton, Toff). | 190ns, 180ns |
| Switch Type | Switch Type |
| Switch Voltage - Max | 36 V |
| Typical Dual Supply Vol. | Typical Dual Supply Vol. |
| Typical Single Supply V. | 40 V |
| Voltage - Supply, Dual . | ?9V ~ 22V |
| Voltage - Supply, Singl. | 9V ~ 40V |
| Width | 4.5mm |
