- mpnCWDM3534
- brandname: Baldor
- manufacturername: Baldor

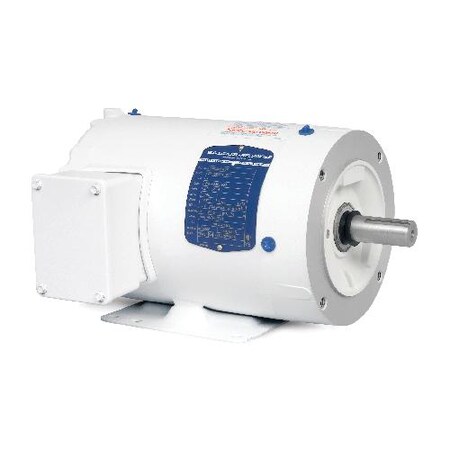

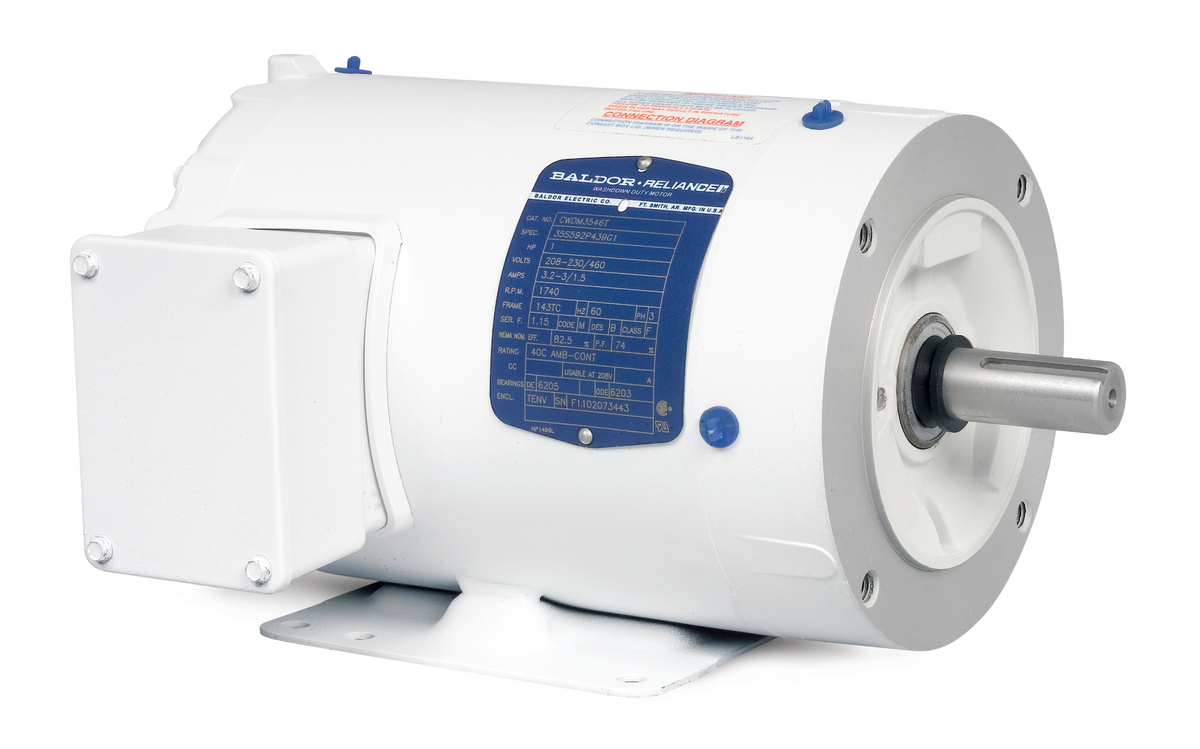

Baldor Electric CWDM3534.33HP, 1800 RPM, 3PH, 208V/230V/460V, 56C Frame, C-Face Flange, Foot Mount, TENV, Washdown Duty Motor
- Brand: Baldor Electric
- PartNumber: CWDM3534
- Manufacturer: Baldor Electric
- Label: Baldor Electric
Attributes
| Key | Value |
|---|
| Amps | 1.3/1.3/0.65 |
| Approvals | CSA, UR |
| Bearing Type | Sealed |
| Bearings | Sealed |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 75.5% |
| Efficiency % | 75.5 % |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Material | Steel |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 33.00 |
| Family Series | Baldor Motors |
| FL Amps | 1.3 A @ 230 V; 1.3 A @ . |
| FL Efficiency | 75.5% |
| Frame | 56C |
| Gross Weight | 33 lbs |
| Hertz | 60 |
| Horsepower | 1/3 hp |
| HP | 1/3, 0.33 |
| Hz | 60 |
| IEC Frame | 56C |
| Insulation Class | F |
| Item Number | CWDM3534 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 35S588G155G4 |
| Manufacturer Part Number | CWDM3534 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, C-Face/Rigid |
| Net Weight | 33 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 11.06 ", 11.06" |
| Phase | 3 |
| Product Type | Washdown Duty, Three Ph. |
| Rotation | Reversible |
| RPM | 1780, 1,755 RPM, 1700 -. |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625" |
| Ship Weight | 33 lbs. |
| Speed (RPM) | 1800 |
| Voltage | 208-230/460, 208V, 230V. |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Purvis | CWDM3534 | 500.97 | 1 | In Stock | | Baldor-Reliance | | 500.97 @ 1 |
 | emotorpro.com | CWDM3534 | 506.76 | 1 | In Stock | | Baldor | 33.0 | 506.76 @ 1 |
| Airline Hydraulics | 2577295 | 557.73 | 1 | In Stock | | BALDOR | | 557.73 @ 1 |
| factorysupplyoutlet.com | ZT72QA | 559.33 | 1 | In Stock | | Baldor-Reliance | | 559.33 @ 1 |
 | Galco | CWDM3534-BLDR | 560.73 | 1 | In Stock | | Baldor | 33.0 | 560.73 @ 1 |
| motorsandcontrol.com | CWDM3534 | 584.09 | 1 | In Stock | | Baldor Reliance | 33.0 | 584.09 @ 1 |
 | Zoro | G3292288 | 634.99 | 1 | In Stock | | Baldor-Reliance | | 634.99 @ 1 |
| motionindustries.com | 05902259 | 808.68 | 1 | In Stock | | Baldor-Reliance | | 808.68 @ 1 |
 | pumpproducts.com | CWDM3534 | 997.33 | 1 | In Stock | | Baldor | | 997.33 @ 1 |
 | Raptor Supplies | AJ6QNR | 1670.1142185 | 1 | In Stock | | BALDOR MOTOR | | 1670.1142185 @ 1 |
