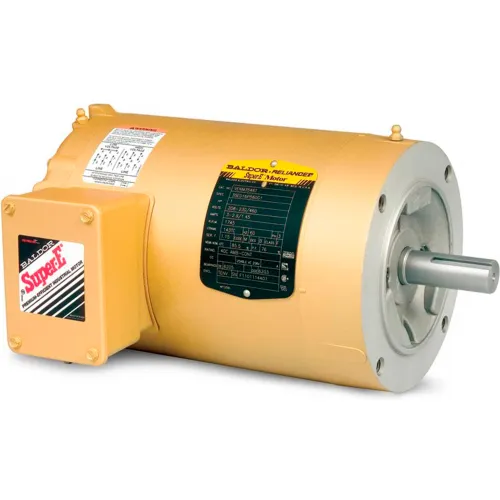

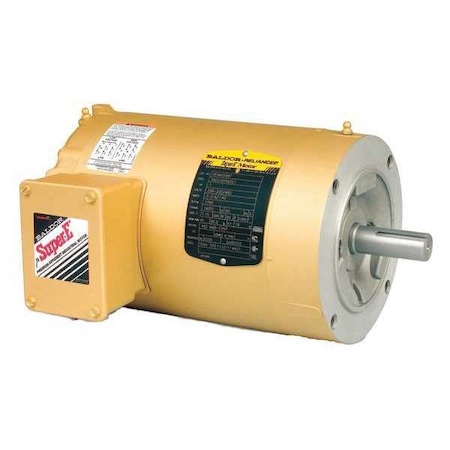

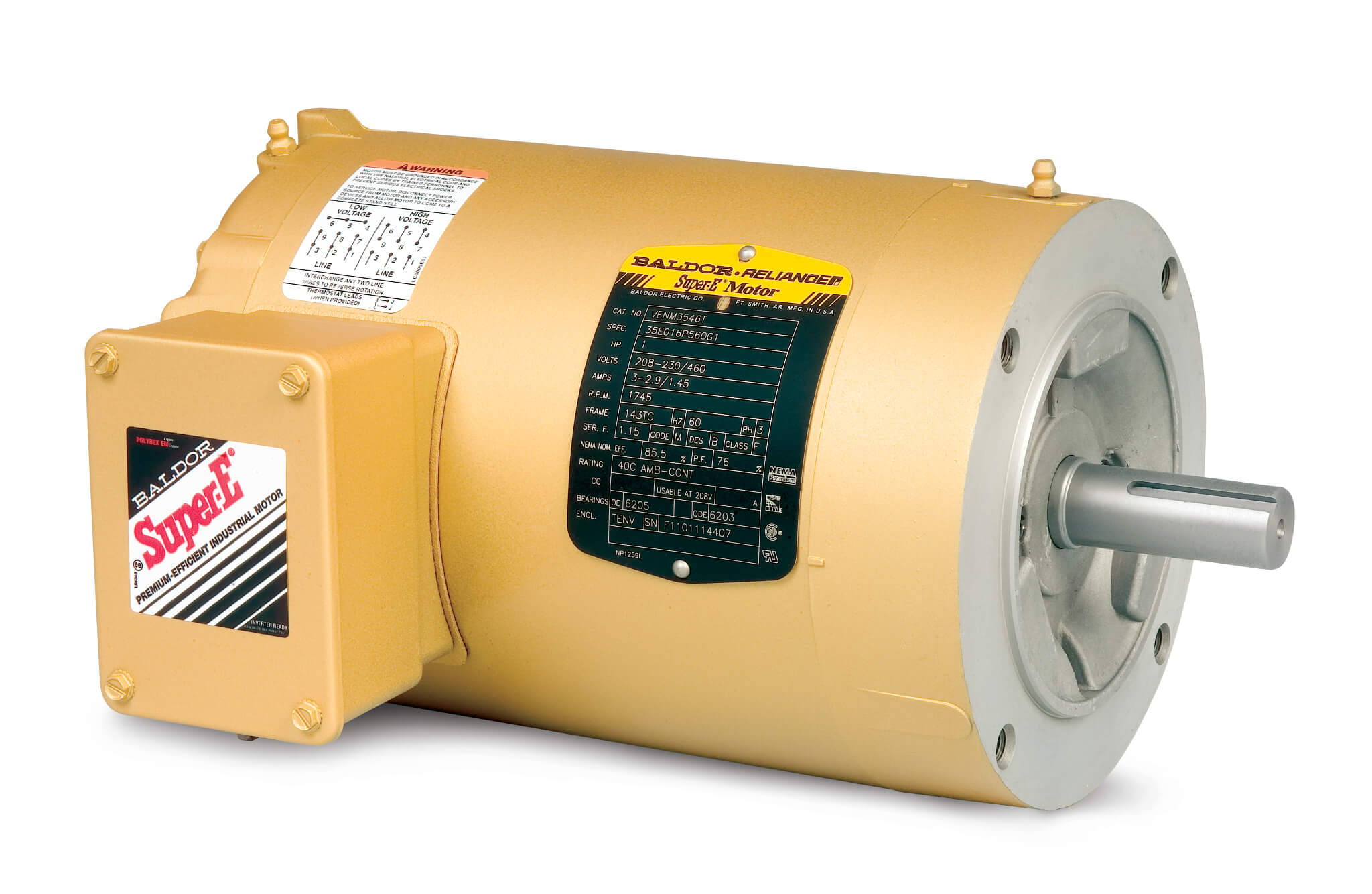

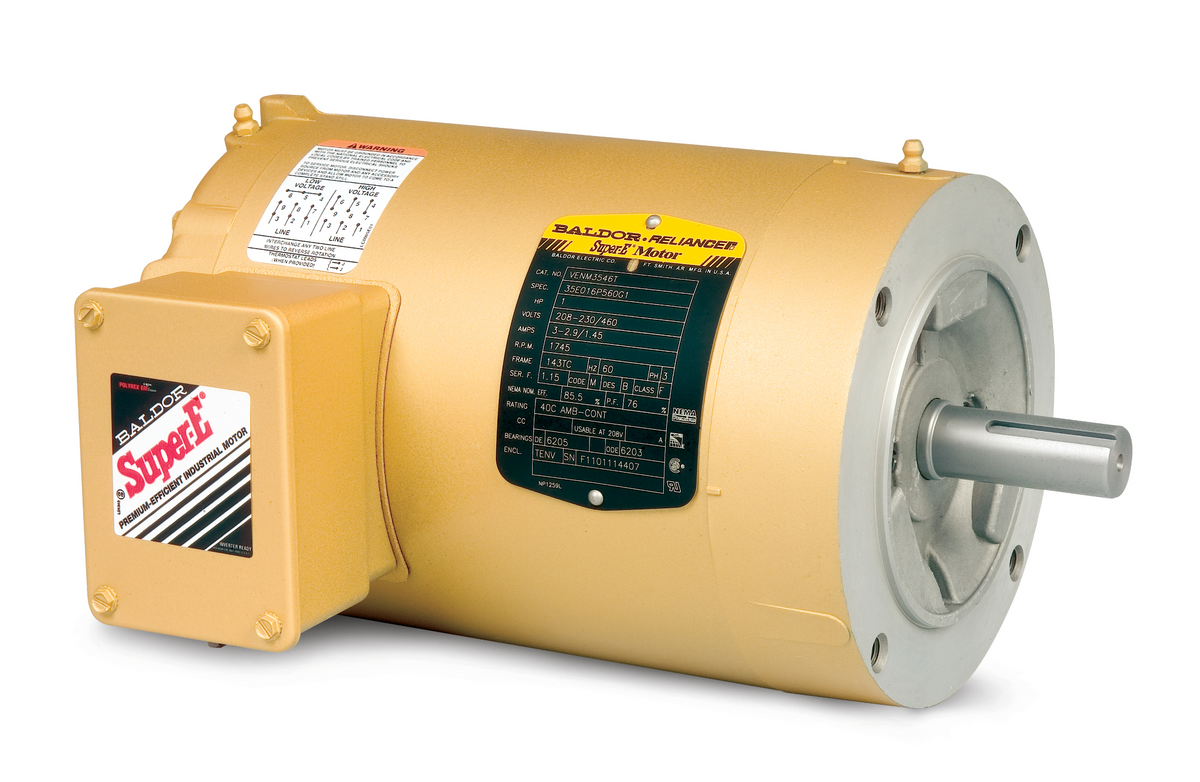

Baldor Electric Motors VENM3546T

B00BC7HAO4

Baldor VENM3546T 1HP1745RPM3PH60HZ143TC3524MTE NVF1

Baldor VENM3546T 1HP1745RPM3PH60HZ143TC3524MTE NVF1zoom

Attributes

Key Value
Amps1.45/2.9
ApplicationGeneral Purpose
Bearing TypeBall
BearingsBall
CC NumberCC031A
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.United States
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency85.5%
Efficiency %85.5 %
EnclosureTotally Enclosed Non-Ve.
Enclosure MaterialSteel
Enclosure TypeTENV (Totally Enclosed .
Estimated Weight40.00
Family NameThree Phase Enclosed Fa.
Family SeriesBaldor Motors, VM Series
FL Amps3-2.9/1.45
FL Efficiency85.5
Frame143TC
Gross Weight39 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassF
Inverter DutyNo
ItemMotor,1HP,1745rpm,3PH,6.
Item NumberVENM3546T
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #35E016Z818G1
Manufacturer Part NumberVENM3546T
Maximum Ambient Tempera.40? C
MountingC-Face, Footless
Mounting TypeC-Face Footless, Footle.
NEMA Frame143TC
Net Weight39 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
Overall Length12.12", 12.12 "
Overload ProtectionNone
Part NumberVENM3546T
Phase3, 3 Phase
Product SeriesVM
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1,800 RPM, 1745 RPM, 17.
SeriesGE3 Series
Service Factor1.15
Shaft Diameter0.875"
Ship Weight40 lbs.
Speed (RPM)1745
UPC Code781568502877
Voltage208V, 230V, 460V, 230/4.
Voltage (AC)208-230 VAC, 460 VAC
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
motionindustries.com0373430619.971In StockBaldor-Reliance19.97 @ 1
thumbzoomemotorpro.comVENM3546T726.881In StockBaldor40.0726.88 @ 1
factorysupplyoutlet.comQJ61FN796.251In StockBaldor-Reliance796.25 @ 1
thumbzoomGalcoVENM3546T-BLDR804.291In StockBaldor39.0804.29 @ 1
thumbzoomWalker IndustrialVENM3546T804.291In StockBaldor804.29 @ 1
thumbzoomGlobal IndustrialWBB391120805.01In StockBaldor-Reliance805.0 @ 1
motorsandcontrol.comVENM3546T837.81In StockBaldor Reliance40.0837.8 @ 1
thumbzoomZoroG7036578848.491In Stock15Baldor-Reliance40.0848.49 @ 1
thumbzoomapexindustrialautomation.comVENM3546T928.0312Baldor-Reliance928.03 @ 1
thumbzoompumpproducts.comVENM3546T951.51In StockBaldor951.5 @ 1
us.rs-online.com719444781005.361In StockBaldor-Reliance1005.36 @ 1
kirbyrisk.com23527711054.591In StockBaldor1054.59 @ 1
thumbzoomRaptor SuppliesAJ6YVV2395.54253251In StockBALDOR MOTOR2395.5425325 @ 1
