- mpn1829R 010U1000
- brandname: Belden
- manufacturername: Belden

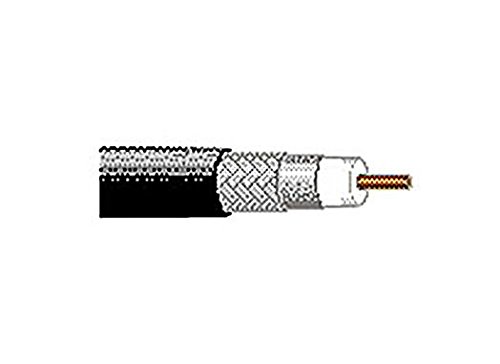

Belden 1829R 010U1000 18 AWG Solid Bare Copper-Covered Steel Conductor DBS Coax Cable - Black - 1000 Foot
- Brand: Belden
- PartNumber: 1829R 010U1000
- Manufacturer: Belden
- Label: Belden
Attributes
| Key | Value |
|---|
| Application | Satellite, DBS, TV, Ant. |
| Base Product Number | 1829R |
| Cable Group | RG-6 |
| Cable Type | RG-6/U, Coaxial - Riser |
| Category | Cables, Wires |
| Conductor Material | Steel, Copper Coated, B. |
| Conductor Strand | Solid |
| Dielectric Diameter | 0.180" (4.57mm) |
| Dielectric Material | Foam Polyethylene (FPE) |
| Impedance | 75 Ohms |
| Insulation Material | Foam Polyethylene (FPE) |
| Jacket (Insulation) Dia. | 0.275" (6.99mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Length | 1000.0' (304.80m), 1000. |
| Mfr | Belden Inc. |
| Operating Force | Foam Polyethylene (FPE) |
| Operating Temperature | -40?C ~ 80?C |
| Outer Diameter | 0.27 " |
| Package | Spool |
| Packaging | Box |
| Product Header | 6 Series DBS Coaxial Ca. |
| Product Status | Active |
| Series | -, 1829R Series |
| Shield Coverage | 100%, 60% |
| Shield Material | Aluminum |
| Shield Type | Foil, Braid |
| Shielding | Braid |
| Standards | UL NEC/cUL CEC, EU CE |
| Stranding | Solid |
| VoP, Velocity of Propag. | 83 |
| Wire Gauge | 18 AWG |
| Wire Size | 18 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| us.rs-online.com | 70003597 | 279.06 | 1 | In Stock | | Belden | | 279.06 @ 1 |
 | Newark | 10K3493 | 297.03 | 1 | In Stock | | BELDEN | | 297.03 @ 1 |
| Digi-Key | 8135865 | 300.87 | 1 | In Stock | | Belden Inc. | | 300.87 @ 1 |
