Century H536L

mpn56T17DRS40003A2
brandname: Century
manufacturername: Century

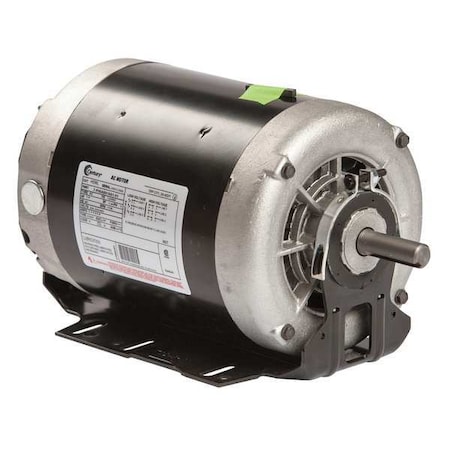

Mtr 3 Ph 1.5hp 1725 200-230/460 Eff 75.7

Mtr 3 Ph 1.5hp 1725 200-230/460 Eff 75.7

zoom

Brand: Century
PartNumber: H536L
PackageQuantity: 1
Manufacturer: CENTURY
Label: CENTURY

Attributes

Key	Value
Body Dia.	6 1/2 in
Brand	Century
Country of Origin (subj.	Mexico
Current Stock	27
Duty	Continuous
Duty Cycle	Continuous
Frame	56H
Frame Material	Steel
Full Load Amps	5.0-4.8/2.4
HP	1 1/2
Hz	60
Includes	Resilient Base
Ins. Class	B
International Shipping	No
Item	Belt Drive Motor
Length Less Shaft	10 in
Material	HAWA
Max. Ambient Temp.	40 Degrees C
Motor Application	HVAC/R
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Open Dripproof
Motor Frame Material	Steel
Motor Mounting Position	All Angle
Motor Mounting Type	Cradle Base
Motor Service Factor	1.2
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Belt Drive Fan/Blower
Motor Thermal Protection	None
Mounting Stud Pattern	4-1/8" x 4-1/8"
Mpn	56T17DRS40003A2
Nameplate RPM	1,725
No. of Speeds	1
Nominal Efficiency	80 %
Overall Length	11 15/16 in
Phase	Three
Resilient Ring Dia.	2 1/2 in
Ring to Ring Center	9 5/8 in
RPM Range	1,701-1,800
Shaft Dia.	5/8 in
Shaft Length	1 7/8 in
SKU	ZO-G3721347
Standards	CSA Certified, UL Recog.
SubCategory	Motors/Ac Motors
Usable @ 200V	Yes
Usable @ 208V	Yes
Voltage	200-230/460V AC
Voltage Compatibility	200-230/440V AC, 200-23.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	simsupply.com	ZO-G3721347	304.32	1	In Stock		Century		304.32 @ 1
	Zoro	G3721347	312.84	1	In Stock		Century	30.25	312.84 @ 1
