Century ARB2034L1

B007ICKOCC

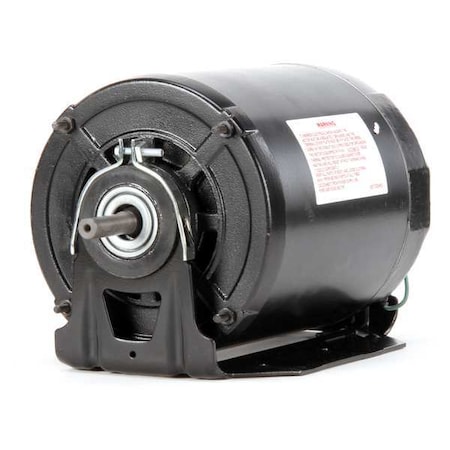

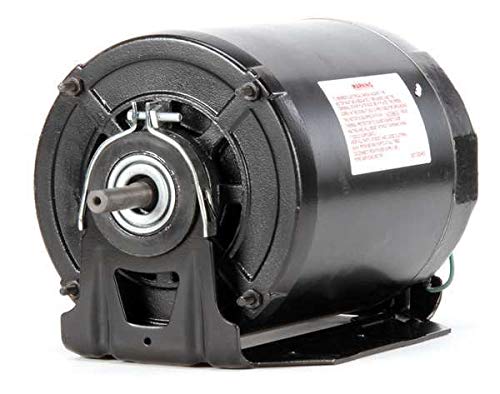

Century Motor Split Ph 1/3 HP 1725 115V 56Z Tea

Century Motor Split Ph 1/3 HP 1725 115V 56Z Teazoom

Attributes

Key Value
Amps5.5/4
ApplicationBlowers, Fans and Air C.
ARB2034L1 is listed in .A.O. Smith ARB2034, A.O.
BearingsBall
Body Dia.6 1/2 in
Bolt Circle Dia.5 13/16 in
BrandCentury
Capacitor RequiredNo
CategoryElectric Motor
Current Stock9
Duty CycleContinuous
EnclosureTEAO
Enclosure TypeTEAO (Totally Enclosed .
Frame56Z
Frame RemarksDOUBLE SPEED, Resilient.
HP1/9, 1/3, 1/3 & 1/9, 0..
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
Item ConditionFACTORY NEW
Lead TimeExpected to ship in 1-2.
Length Less Shaft9 3/8 in
ManufacturerCentury
Manufacturers Warranty .1 yr
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor DesignSplit-Phase
Motor Diameter6-1/2"
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Service Factor1
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
MountingCradle/Stud
mountingResilient Base
Mounting Stud Length1/2 in
Mounting Stud LocationShaft End
MpnARB2034L1
Nameplate RPM1,725/1,140
Number of Speeds2
Overall Length11 in
Phase1
Product TypeSplit Phase
Resilient Ring Dia.2 1/2 in
RotationReversible
RPM1800/1200, 1700 - 1800,.
RPM Range1,701-1,800
Service Factor (SF)1.00
Shaft Dia.5/8 in
Shaft Diameter1/2"
Shaft Length1-5/8", 1 5/8 in
Ship Weight29 lbs.
SKUZO-G0949487
StandardsCSA Certified
Stud Size#10-32
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Voltage115
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply5811591123.231In StockCentury123.23 @ 1
thumbzoomktool.netBGF2014L162.691In StockCentury162.69 @ 1
thumbzoomZoroG0949487227.99119Century28.43227.99 @ 1
thumbzoomDealers ElectricARB2034L1249.911In StockCentury29.0249.91 @ 1
thumbzoomVoomi SupplyARB2034L1257.651In StockCentury Motors257.65 @ 1
thumbzoomemotorpro.comARB2034L1262.271In StockCentury29.0262.27 @ 1
thumbzoomsustainablesupply.comC2090478268.431In StockCentury15.0268.43 @ 1
thumbzoomsimsupply.comZO-G0949487269.919Century269.9 @ 1
thumbzoommidwestapplianceparts.comARB2034L1-AO-P272.381In StockAO Smith272.38 @ 1
AmazonTPB007ICKOCC302.511In Stock5CENTURY302.51 @ 1
AmazonUNKB007ICKOCC302.511In StockCENTURY302.51 @ 1
