Century ARB2034L2

mpnARB2034L2
brandname: Century
manufacturername: Century

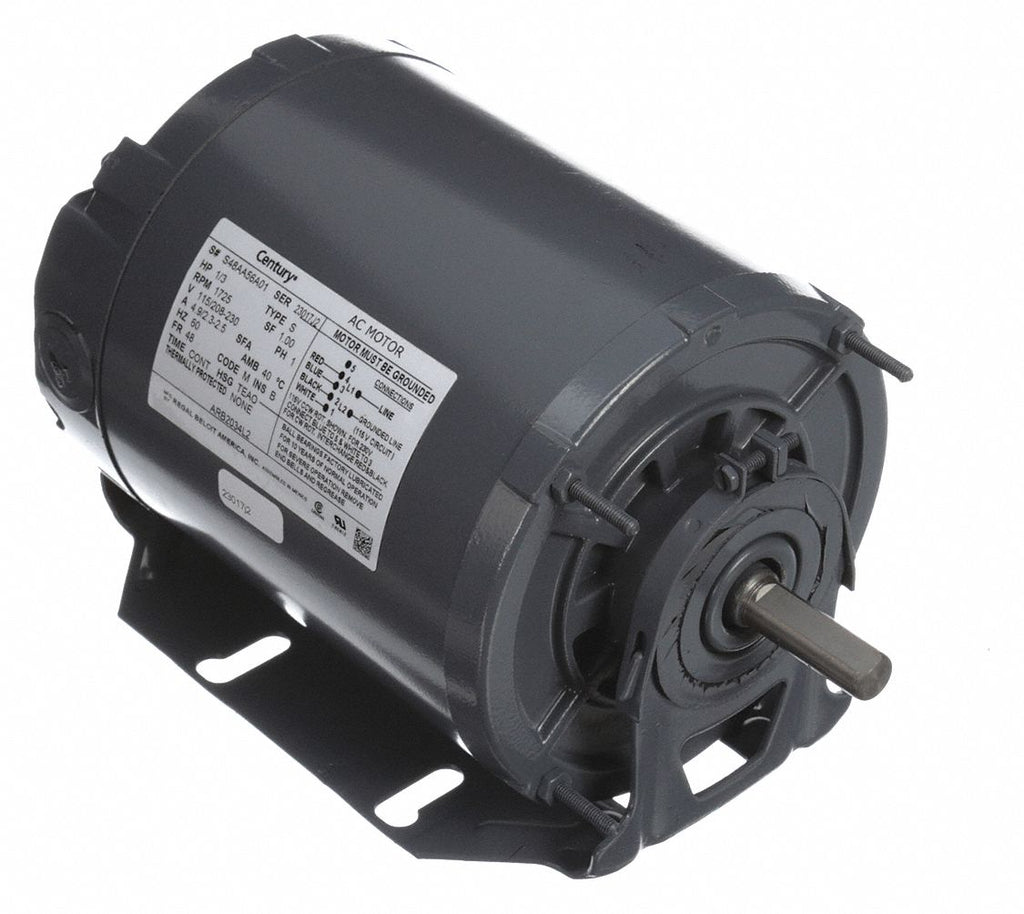

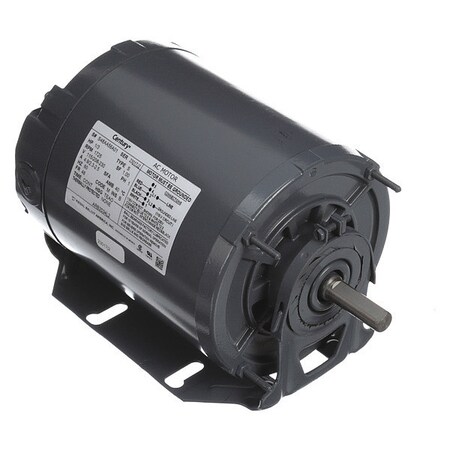

Century Motor Sp Ph 1/3 HP 1725 115/208-230V 48

Brand: Century
PartNumber: ARB2034L2
Model: ARB2034L2
PackageQuantity: 1
Manufacturer: CENTURY
Label: CENTURY

Attributes

Key	Value
Amps	4.9/2.3-2.5, 4.9/2.3/2.5
ARB2034L2 is listed in .	A.O. Smith ARB2034SLV1,.
Bearings	Ball
Body Dia.	5 5/8 in, 5-5/8"
Brand	Century
C-Dimemsion	9.80 (in.)
Catalog Number	ARB2034L2
Category	Electric Motor
CE	N
CSA	Y
DE Bearing Type	Ball
DEM Reference	NOHP
Duty	Continuous
Duty Cycle	Continuous
Electrical Type	Split Phase
Enclosure	TEAO
Enclosure Type	TEAO (Totally Enclosed .
Frame	48
Frame Material	Rolled steel
Frame Remarks	Resilient Base
Frame Type	48
Frequency	60
Full Load Amps	4.9/2.3-2.5
HP	0.33, 1/3
Hz	60
Ins. Class	B
Insulation Class	B
International Shipping	No
IP Code	-
Item	Belt Drive Motor
Item Condition	FACTORY NEW
KVA Code	-
Length Less Shaft	8 1/4 in, 8-3/8"
Manufacturer	Century
Max Ambient	40?C
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Ball
Motor Design	Split-Phase
Motor Diameter	5-5/8"
Motor Enclosure Design	Totally Enclosed Air-Ov.
Motor Frame Material	Steel, Rolled steel
Motor Mounting Position	All Angle
Motor Mounting Type	Cradle Base
Motor Orientation	-
Motor Service Factor	1, 1.00
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Belt Drive Fan/Blower
Motor Thermal Protection	None
mounting	Resilient Base
Mounting	Cradle/Stud
Mounting Stud Pattern	3-5/8" x 3-5/8"
Mounting Type	Resilient Base
Mpn	ARB2034L2
Nameplate RPM	1,725
No. of Speeds	1
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	9-7/8", 9 13/16 in
Phase	1, Single
Product Category	HVAC/R Motors > Fan an.
Product Type	Split Phase
Resilient Ring Dia.	2-1/2", 2 1/2 in
Rotation	Reversible
RPM	1725, 1800
RPM (Nameplate)	1725
RPM (Number of Poles)	4 (1201 RPM to 1800 RPM)
RPM Range	1,701-1,800, 1,701 - 1,.
Service Factor	1
Service Factor (SF)	1.00
Shaft Dia.	1/2", 1/2 in
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	1.56 (in.)
Shaft Length	1-1/2", 1-5/8", 1 9/16 .
Shaft Type	Flat
Ship Weight	18 lbs.
SKU	ZO-G0895255
Speeds	1
Standards	UL Recognized (E46412),.
SubCategory	Motors/Ac Motors
Thermal Protection	None
Type of Overload Protec.	None
UL	Recognized
Voltage	115/208-230V AC, 115/20.
Voltage Compatibility	115, 120, 208, 230, 240.
Volts	115/208/230, 115/208-230
