Century ARB2034L6

mpnARB2034L6
brandname: Century
manufacturername: Century

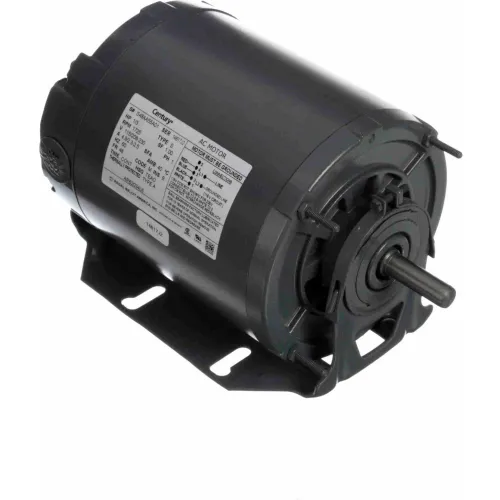

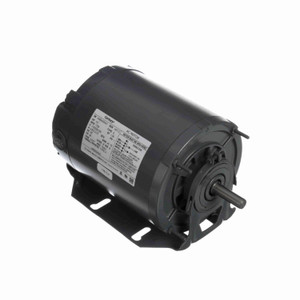

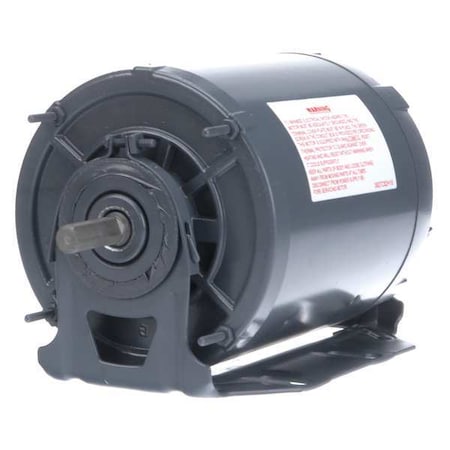

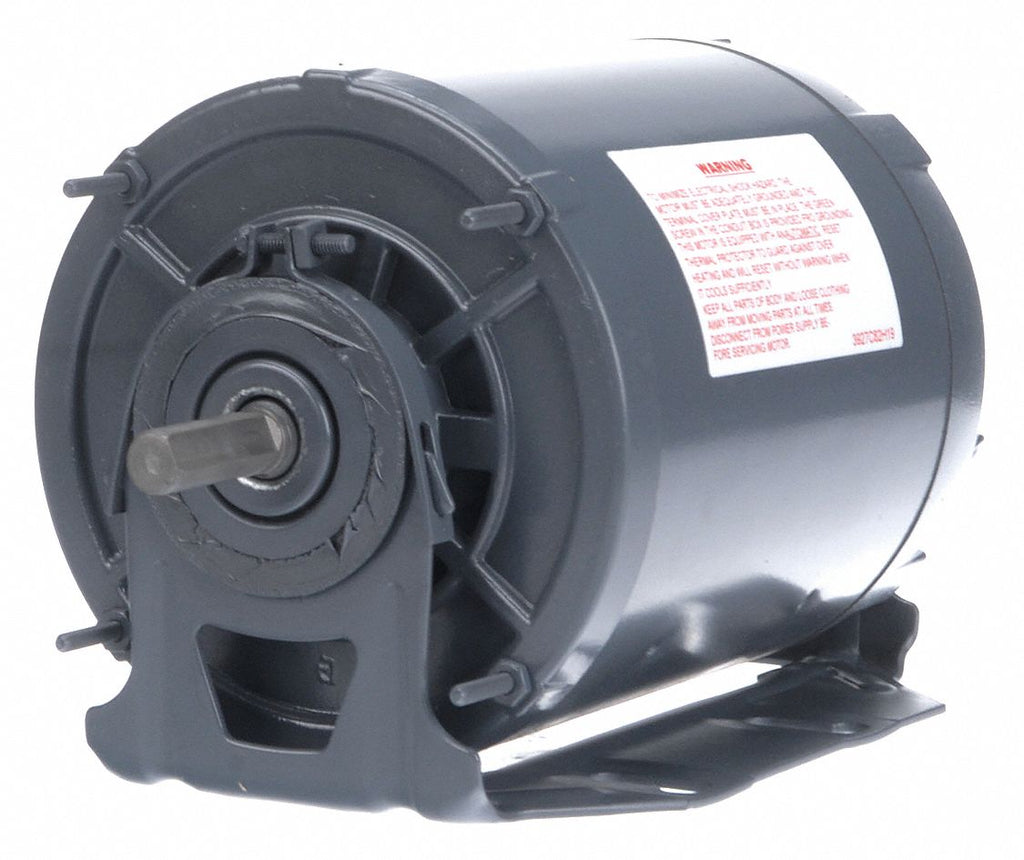

Century Motor Sp Ph 1/3 HP 1725 115/208-230V 48

Brand: Century
PartNumber: ARB2034L6
PackageQuantity: 1
Manufacturer: CENTURY
Label: CENTURY

Attributes

Key	Value
Amps	4.9/2.3-2.5, 4.9/2.3/2.5
Application	Blowers, Fans and Air C.
ARB2034L6 is listed in .	Dayton 6K666, A.O. Smit.
Bearings	Ball
Body Dia.	5 13/16 in
Bolt Circle Dia.	5 3/16 in
Brand	Century
C-Dimemsion	9.80 (in.)
Capacitor Required	No
Catalog Number	ARB2034L6
Category	Electric Motor
CE	N
CSA	Y
Current Stock	47
DE Bearing Type	Ball
DEM Reference	NOHP
Duty	Continuous
Duty Cycle	Continuous
Electrical Type	Split Phase
Enclosure	TEAO
Enclosure Type	TEAO (Totally Enclosed .
Frame	48
Frame Material	Rolled Steel
Frame Remarks	Resilient Base
Frame Type	48
Frequency	60
HP	0.33, 1/3
Hz	60
Insulation Class	B
International Shipping	No
IP Code	-
Item	Direct Drive Blower Mot.
Item Condition	FACTORY NEW
KVA Code	-
Lead Time	Expected to ship in 1-2.
Length Less Shaft	8 1/4 in
Manufacturer	Century
Manufacturers Warranty .	1 yr
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Ball
Motor Diameter	5-5/8"
Motor Mounting Position	Horizontal
Motor Mounting Type	Cradle Base
Motor Orientation	-
Motor Shaft Design	Flat
Mounting	Cradle/Stud
mounting	Resilient Base
Mounting Stud Length	3/4 in
Mounting Stud Location	Shaft End
Mounting Type	Resilient Base
Mpn	ARB2034L6
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	9 13/16 in
Phase	1, Single
Product Category	HVAC/R Motors > Fan an.
Product Type	Split Phase
Resilient Ring Dia.	2 1/2 in
Ring to Ring Center	7 3/4 in
Rotation	Reversible
RPM	1725, 1700 - 1800, 1800
RPM (Nameplate)	1725
RPM (Number of Poles)	4 (1201 RPM to 1800 RPM)
RPM Range	1,701-1,800
Service Factor	1
Service Factor (SF)	1.00
Shaft Dia.	1/2 in
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	1.56 (in.)
Shaft Length	1 1/2 in, 1-5/8"
Shaft Type	Flat
Ship Weight	18 lbs.
SKU	ZO-G3333897
Speeds	1
Stud Size	#8-32
SubCategory	Motors/Ac Motors
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized
Voltage	115/208-230V AC, 115/20.
Volts	115/208/230, 115/208-230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
AmazonTP	B01A468WQ8	204.79	1	In Stock	2	A.O. Smith		204.79 @ 1
AmazonUNK	B01A468WQ8	204.79	1	In Stock		A.O. Smith		204.79 @ 1
Zoro	G3333897	262.99	1	64		Century	18.4	262.99 @ 1
hvacdiscountstore.com	CEN--ARB2034L6	267.41	1	In Stock		CENTURY MOTORS		267.41 @ 1
ktool.net	ARB2034L6	270.8	1	In Stock		Century		270.8 @ 1
MRO Supply	5811596	275.14	1	In Stock		Century		275.14 @ 1
Dealers Electric	ARB2034L6	293.48	1	In Stock		Century	18.0	293.48 @ 1
sustainablesupply.com	C1560531	319.71	1	In Stock		Century	18.4	319.71 @ 1
emotorpro.com	ARB2034L6	324.24	1	In Stock		Century	18.0	324.24 @ 1
simsupply.com	ZO-G3333897	325.52	1	47		Century		325.52 @ 1
Voomi Supply	ARB2034L6	326.3	1	In Stock		Century Motors		326.3 @ 1
midwestapplianceparts.com	ARB2034L6-AO-P	336.77	1	In Stock		AO Smith		336.77 @ 1
Dreisilker	CE-RBC-ARB2034L6	338.63	1	In Stock		Century		338.63 @ 1
National Supply Network	B2776658	339.09	1	In Stock		AO SMITH		339.09 @ 1
Global Industrial	WBB2776658	349.95	1	In Stock		Century		349.95 @ 1
industrialstores.com	ARB2034L6	368.71	1	In Stock	19	Century Motors by Regal Beloit		368.71 @ 1
