A.O. Smith Corporation FB1076V1

mpnFB1076V1
brandname: CENTURY
manufacturername: CENTURY

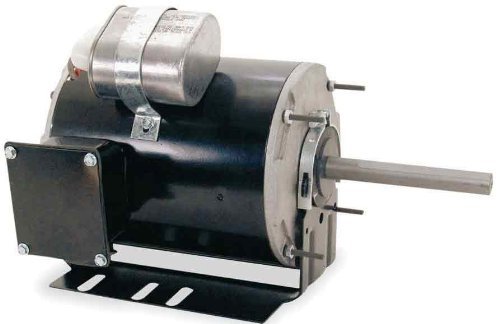

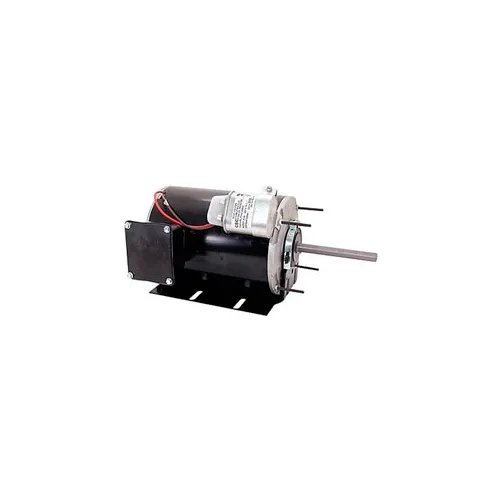

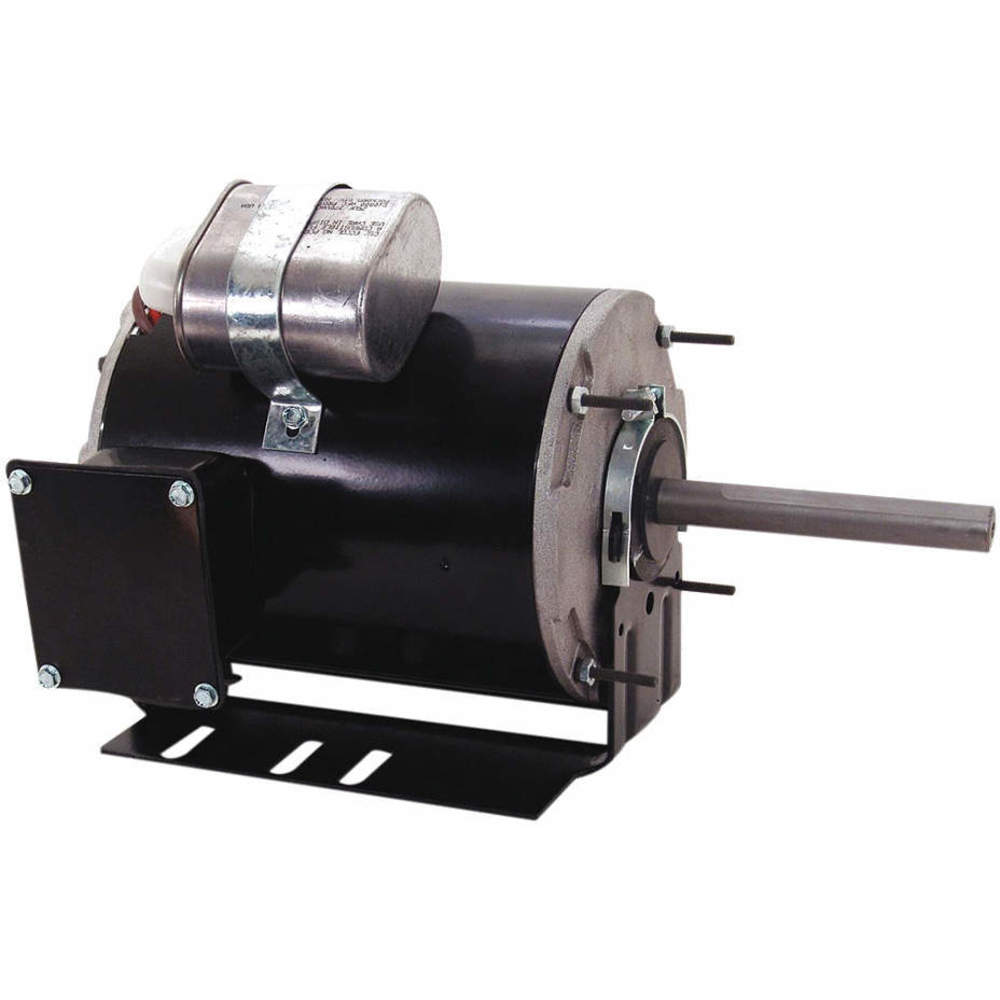

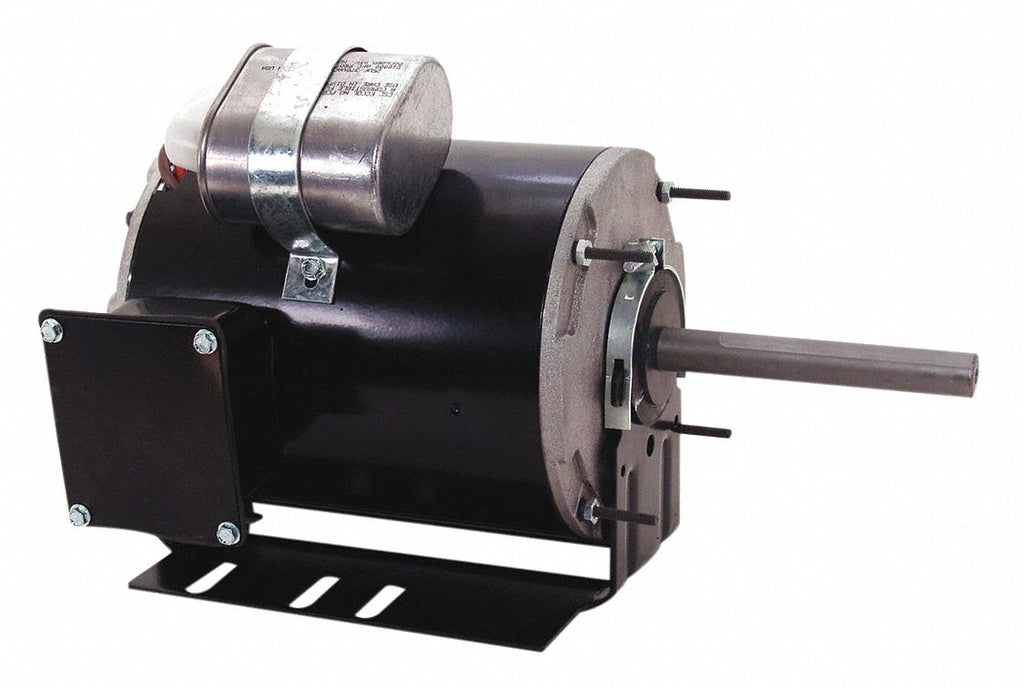

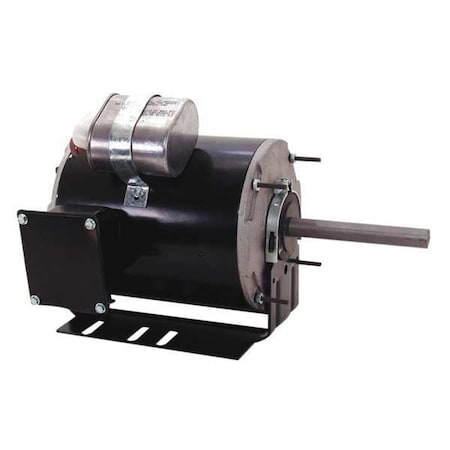

A.O. Smith Corporation FB1076V1 3/4HP 208-230/460V 1075RPM Mtr

Brand: A.O. Smith Corporation
PartNumber: FB1076V1
Model: FB1076V1
Manufacturer: A.O. Smith Corporation
Label: A.O. Smith Corporation

Attributes

Key	Value
Amps	5/2.5, 5.0/2.5
Batteries Required?	No
Bearings	Ball
Best Sellers Rank	#2,799,241 in Tools & H.
Body Dia.	5-5/8", 5 5/8 in
Brand	Century
C-Dimemsion	12.31 (in.)
Capacitor	17.5MFD @ 370VAC (Inclu.
Capacitor Required	Included
Catalog Number	FB1076
CE	N
CSA	Y
Current Stock	9
Date First Available	September 25, 2005
DE Bearing Type	Ball
DEM Reference	AOS#FB1076
Duty	Continuous, Continuous .
Duty Cycle	Continuous
Electrical Type	Permanent Split Capacit.
Enclosure	Semi Enclosed
Enclosure Type	OAO (Open Air Over)
FB1076V1 is listed in C.	A.O. Smith F48U91A01, D.
Features	Internal Conduit Box fo.
Frame	56Y, 48Y
Frame Material	Rolled Steel
Frequency	60
Full Load Amps	5.0-5.0/2.5
HP	3/4
Hz	60
Ins. Class	B
Insulation Class	B
International Shipping	No
IP Code	-
Item	Condenser Fan Motor
Item model number	FB1076V1
Item Package Quantity	1
Item Weight	0.96 ounces
KVA Code	-
Lead Time	Expected to ship in 1-2.
Length Less Shaft	8-3/4", 8 3/4 in
Manufacturer	Century Electric/AO Smi.
Max Ambient	60?C
Max. Ambient Temp.	60 Degrees C
Maximum Ambient Tempera.	60? C
Motor Application	HVAC/R
Motor Bearings	Ball
Motor Design	Permanent Split Capacit.
Motor Diameter	5-5/8"
Motor Enclosure Design	Open Air-Over
Motor Mounting Position	Vertical Shaft Up
Motor Mounting Type	Cradle Base
Motor Orientation	Horizontal
Motor Service Factor	1, 1.00
Motor Shaft Design	Flat
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Condenser Fan
Motor Thermal Protection	Auto
Mounting	Cradle
Mounting Stud Length	1 1/2 in
Mounting Stud Pattern	3-5/8" x 3-5/8"
Mounting Type	Resilient Base
Mpn	FB1076V1
Nameplate RPM	1,075
No. of Speeds	1
Nominal Efficiency	0.69
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	13-3/4", 13 3/4 in
Part Number	FB1076V1
Phase	1, Single
Product Category	HVAC/R Motors > Conden.
Product Dimensions	14.75 x 8.25 x 7.25 inc.
Product Type	PSC (Permanent Split Ca.
Product with faster shi.	true
Resilient Ring Dia.	2 1/4 in, 2-1/4"
Ring to Ring Center	8-5/16"
Rotation	Reversible
RPM	1075
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
RPM Range	1,000 - 1,380, 1,001-1,.
Service Factor	1
Service Factor (SF)	1.00
Shaft Dia.	1/2", 1/2 in
Shaft Diameter	5/8 (in.), 1/2"
Shaft Extension	4.5 (in.)
Shaft Length	5-1/2", 6 in, 5"
Shaft Type	Keyed
Ship Weight	27 lbs.
Shipping	undefined (Fixed Shippi.
SKU	ZO-G0273201
Speeds	1
Standards	UL Recognized (E46412/E.
Stud Quantity	4
Stud Size	#8-32, 8-32 x 1-1/2"
SubCategory	Motors/Ac Motors
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized
Voltage	208-230/460V AC, 208-23.
Voltage Compatibility	208, 230, 240, 460, 208.
Volts	208-230/460

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
grainger.ca	AOSFB1076V1	104.76276775	1	In Stock		CENTURY	27.5	104.76276775 @ 1
AmazonTP	B0092LL56Q	342.48	1	In Stock	5	Century Electric/AO Smith Motors Co		342.48 @ 1
AmazonUNK	B0092LL56Q	342.48	1	In Stock		Century Electric/AO Smith Motors Co		342.48 @ 1
Zoro	G0273201	364.99	1	41		Century	27.5	364.99 @ 1
Voomi Supply	FB1076V1	384.92	1	In Stock		Century Motors		384.92 @ 1
emotorpro.com	FB1076V1	392.44	1	In Stock		Century	27.0	392.44 @ 1
National Supply Network	B244999	399.43	1	In Stock		AO SMITH		399.43 @ 1
Global Industrial	WBB244999	399.95	1	In Stock		Century		399.95 @ 1
sustainablesupply.com	C1561096	414.51	1	In Stock		Century	27.5	414.51 @ 1
midwestapplianceparts.com	FB1076V1-AO-P	417.01	1	In Stock		AO Smith		417.01 @ 1
simsupply.com	ZO-G0273201	432.02	1	9		Century		432.02 @ 1
homeessentialsdirect.com	FB1076V1	432.55	1	In Stock		Century Electric/AO Smith Motors Co	0.06	432.55 @ 1
hvacdiscountstore.com	CEN--FB1076V1	433.01	1	In Stock		CENTURY MOTORS		433.01 @ 1
ptacsolutions.com	FB1076V1	514.92	1	In Stock		A.O. Smith		514.92 @ 1
Raptor Supplies	AD8TLT	558.7979085	1	In Stock		CENTURY		558.7979085 @ 1
Dreisilker	CE-RBC-FB1076	574.36	1	In Stock		Century		574.36 @ 1
turtle.com	AO2 FB1076	993.57	1	In Stock		A. O. Smith		993.57 @ 1
