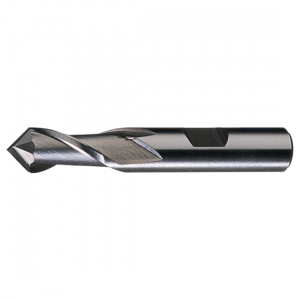

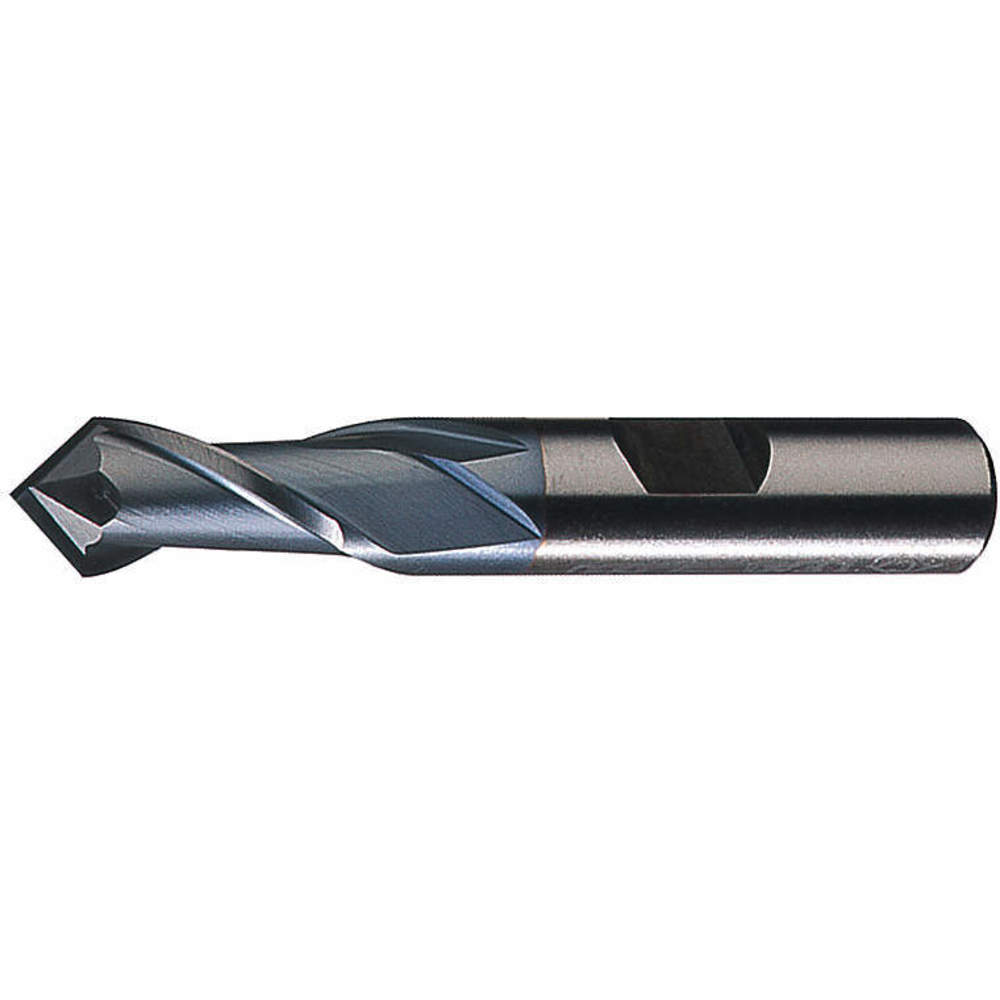

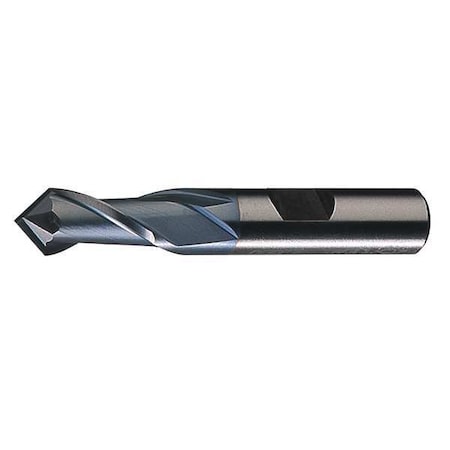

Cleveland C40521 HPDM-2 High Speed Steel Single End 2-Flute Center Cutting End Mill

Cleveland C40521 HPDM-2 High Speed Steel Single End 2-Flute Center Cutting End Mill

zoom

Brand: CLEVELAND
PartNumber: C40521
Model: C40521
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Alloy Steel, Cast Iron,.
Center Cutting:	Yes
Construction:	General Purpose Finisher
Cutting Direction	Right Hand
Cutting Direction - Mac.	Right Hand
Cutting Edge Material	HSS
Cutting Type	Center
Decimal Equivalent:	0.3750"/9.53mm
Diameter	3/8 in
Diameter Fractional:	3/8"
Dimension Type	Fractional Inch
Double Ended:	No
End Mill Application	Finishing
End Mill Cutting Type	Center Cutting
End Mill Material	High Speed Steel
End Mill Style	Drill
End Style:	90? Point
Finish	TiCN Coated, TiCN
Finish - Machining	TiCN
Flute Length	9/16 in
Flute Type	Right Spiral
Grade	General Purpose
Hand of Spiral Cut:	RHS/RHC
Helix Angle	30 Degrees
Included Angle	90 Degrees
Item	Drill Mill
Length of Cut	9/16 in
Length of Cut:	0.5625"/ 14.29mm
List Number	HPDM-2-TC
List Style:	HPDM-2
Material	HSS
Material:	High Speed Steel
Measurement System	Fractional Inch
Milling Dia.	3/8 in
Milling Diameter	3/8"
Number of Flutes	2
Number of Flutes:	2
Overall Length	2 5/16 in, 2-5/16 in
Overall Length:	2.3125"/58.74mm
Point Angle	90 deg
Primary Material Applic.	All Materials
Series	HPDM-2-TC
Shank Dia.	3/8 in
Shank Diameter	3/8 in
Shank Diameter:	0.3750"/9.52mm
Shank Type	Straight/Weldon Flat
Shank:	Straight w/ Weldon Flats
Single End/Double End	Single End
Style	HPDM-2-TC
Surface Condition	TiCN
Surface Condition:	TiCN
Tool Size	3/8" x 3/8" x 9/16" x 2.
Type	Center Cutting Single E.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6116542	41.95	1	In Stock		Cleveland		41.95 @ 1
	Zoro	G6003322	43.99	1	1		Cleveland	0.2	43.99 @ 1
	sustainablesupply.com	C1404299	45.96	1	In Stock		Cleveland	0.2	45.96 @ 1
	Megadepot	C40521	48.1	1	In Stock		Cleveland		48.1 @ 1
	usmegastore.com	C40521	52.78	1	In Stock		Cleveland		52.78 @ 1
	bscsource.com	C40521	57.19	1	In Stock		Cleveland		57.19 @ 1
	Raptor Supplies	AC4ZKH	72.448974	1	In Stock		CLEVELAND		72.448974 @ 1
	Grainger	31C867	84.75	1	In Stock	12	CLEVELAND		84.75 @ 1
	National Supply Network	87405999	118.62	1	In Stock		Cleveland		118.62 @ 1
