Hamilton R-MD-103FST

B007I9WRKC

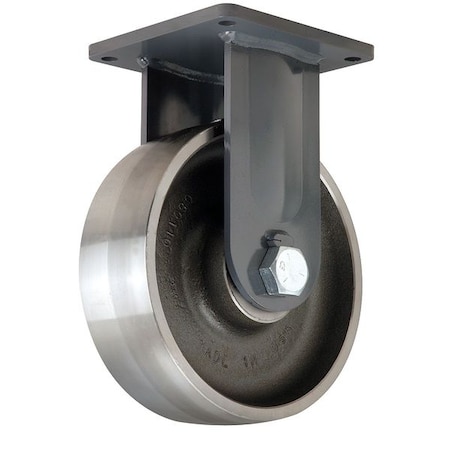

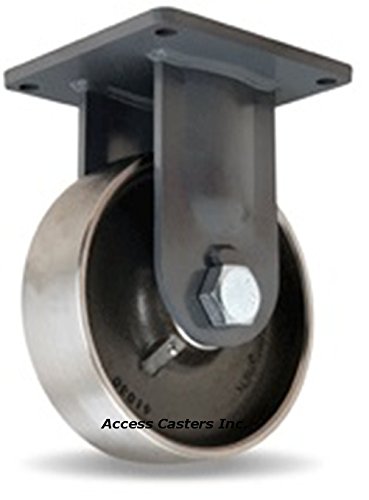

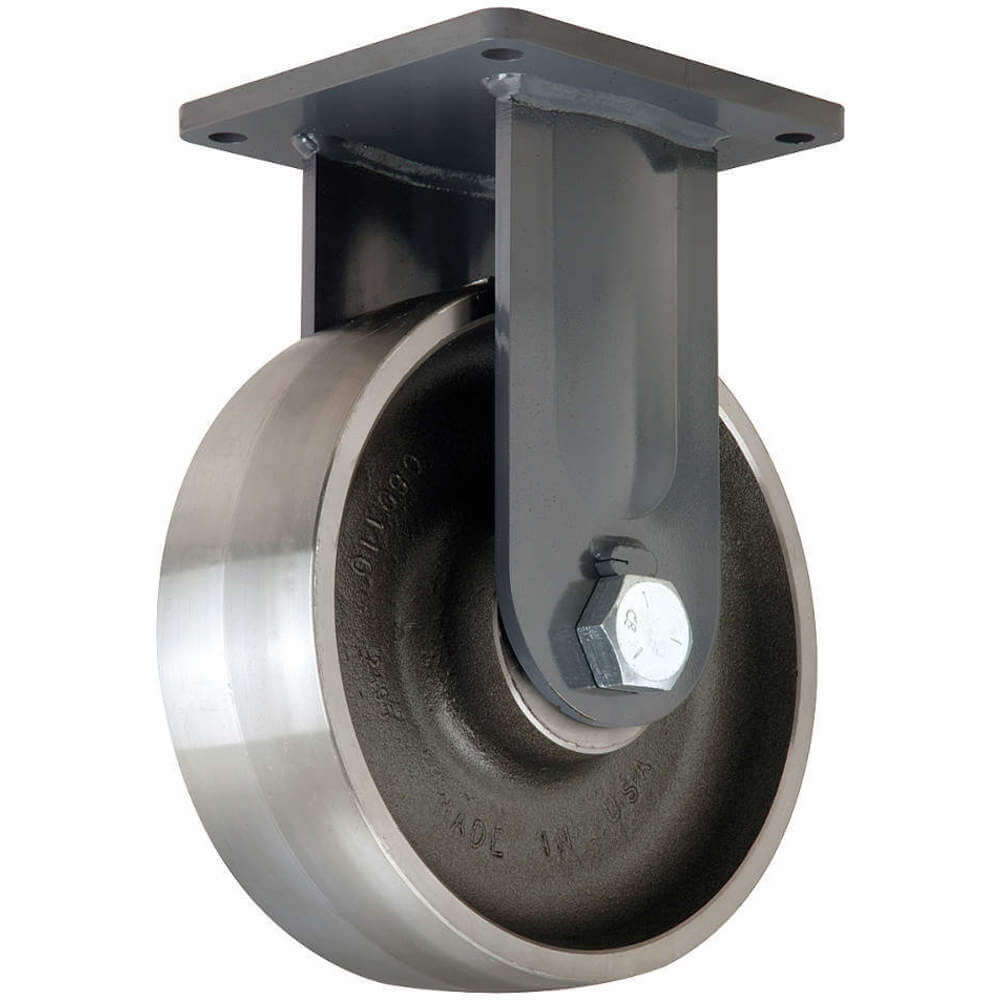

Hamilton R-MD-103FST Rigid Caster MD 10X3 Forged STL 16000 Battleship Gray

Hamilton R-MD-103FST Rigid Caster MD 10X3 Forged STL 16000 Battleship Grayzoom

Attributes

Key Value
ApplicationAerospace Tooling, All .
Caster Brake IncludedNo
Caster Brake TypeNo Brake Included
Caster Core MaterialForged Steel
Caster Frame MaterialSteel
caster load capacity ra.Greater than 4,000 lb
Caster Load Rating RangeExtra Super Duty
Caster Max. Temp.250 Degrees F
Caster Min. Temp.-40 Degrees F
Caster Plate Hole Patte.D
Caster Plate Size8-1/2" x 8-1/2"
Caster Plate Thickness1/2"
Caster Product GroupRigid Caster
caster rig type:Maxi-Duty
caster series:MD Series
Caster Sub-TypeRigid
Caster Swivel Lock TypeNo Lock Included
Caster Temp. Range-40 Degrees to 250 Deg.
Caster Temp. Range Avai.Yes
caster type:Rigid
Caster Wheel BearingsRoller
Caster Wheel ShapeStandard
Caster Wheel/Tread Mate.Forged Steel
Core ColorSilver
Core ColourSilver
Country of Origin (subj.United States
Durometer179 BHN
Extended LeadNo
face width:3 in
Frame FinishEnamel
Frame MaterialSteel
IncludesSpanner Bushing
Includes Thread GuardsNo
Inside Bolt Hole Spacing7 in x 7 in
ItemStandard Plate Caster
load capacity:16000 lbs
Load Rating16,000 lb
Load Rating Range6000 lb and Greater
maximum bolt hole spaci.7 x 7 in
minimum bolt hole spaci.7 x 7 in
Mounting Bolt Dia.1/2 in
Mounting Height13 in
Mounting Plate Bolt Hol.D
Mounting Plate Size8 1/2 in x 8 1/2 in
Non-MarkingYes
Number of Mounting Holes4
Number of Wheels1
Outside Bolt Hole Spaci.7 in x 7 in
Overall Height13"
Plate Caster Bolt Hole .D
Plate Size8-1/2" x 8-1/2"
Plate Thickness1/2"
Replacement Wheel23ED73
StandardsICWM
Swivel ConstructionKingpin
Swivel Lock TypeNo Lock Included
Thread GuardsNo
Tread ShapeStandard
Wheel Bearing TypeTapered Roller
wheel bearing type:Tapered
Wheel ColorSilver
Wheel Core MaterialForged Steel
Wheel Dia.10 in
wheel diameter:10 in
wheel hardness:179 BHN
wheel material/type:Forged Steel
Wheel Width3 in
Wheel/Tread ColorSilver
Wheel/Tread ColourSilver
Wheel/Tread Hardness179 BHN
Wheel/Tread Hardness Ra.Extra Hard
Wheel/Tread MaterialSteel

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC1522305490.591In StockHamilton50.0490.59 @ 1
thumbzoomZoroG6503235492.91In Stock26Hamilton50.0492.9 @ 1
thumbzoommotionindustries.com01068011521.241In StockHamilton Caster521.24 @ 1
thumbzoomRaptor SuppliesAE6VNQ785.66465251In StockHAMILTON785.6646525 @ 1
grainger.caHCTR-MD103FST814.521267381In StockHAMILTON55.0814.52126738 @ 1
