Hubbell HBL3764C

B002FYGIC8

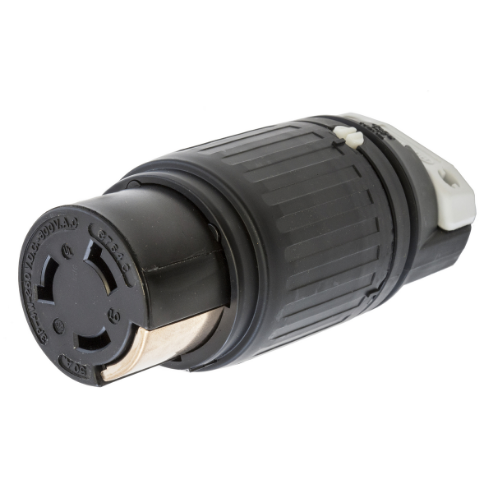

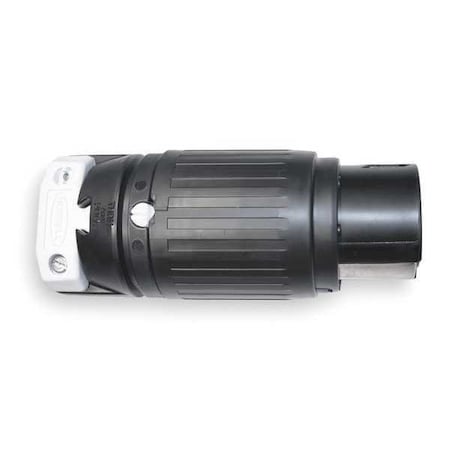

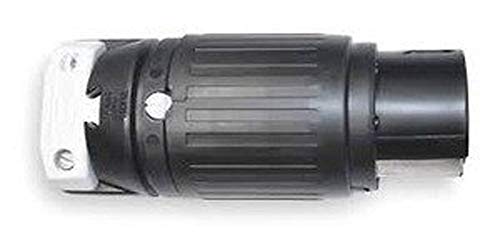

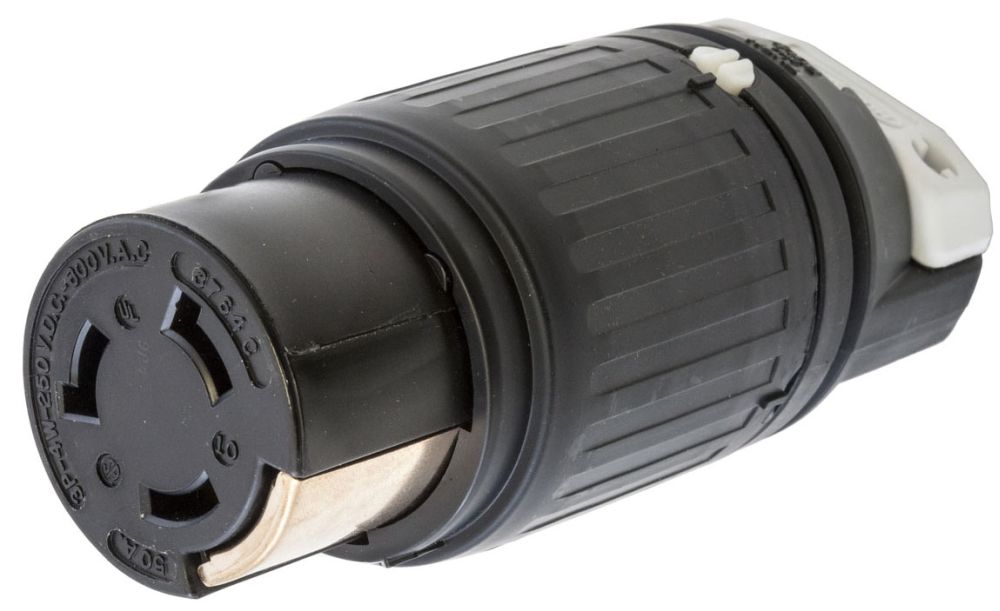

Hubbell HBL3764C Locking Connector, 50 amp, 250 VDC/600 VAC, 3 Pole, 4 Wire, Black, White

Hubbell HBL3764C Locking Connector, 50 amp, 250 VDC/600 VAC, 3 Pole, 4 Wire, Black, Whitezoom

Attributes

Key Value
Amperage50A
Amperage Rating50 A, 50, 50A
Amps50
Amps - Plugs and Recept.50
AntimicrobialNo
ApplicationHeavy Duty Industrial
ApprovalsCSA, UL
AWG Range#8 AWG to #4 AWG
Base Unit of MeasureEA
Body TypeStraight
BOX SIZE5.875x13.995x7.875 (in)
BrandTwist-Lock, Hubbell Wir.
Cable Range0.830 - 1.250 in., 0.83.
Cap TypeNo Cap or Cover
Carton - Gross Weight p.11.000 lb.
Carton - Number of Sub .10
Carton - Pack Descripti.Carton
Carton - SCC-14 Next Lo.783585236421
Carton - Total Units10 EA
Case Weight0.000
Catalog NumberHBL3764C
Class CodeA08
ColorBlack/White, Black, Bla.
Color - Plugs and Recep.Black/White
Color FamilyBlack
Conductor Range#6AWG
ConnectionPressure Screw Terminal
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Contact MaterialBrass
Contact TypeSocket
Cord dia750 in-1.125 in
Cord Diameter0.830-1.250 in
Cord Size0.750 in to 1.125 in
Corrosion ResistantNo
Country of OriginUnited States, PR, US -.
Country of Origin (subj.United States
Cross Reference Products3764C
Current / Amperage Rati.50 A
Current Rating50 A
Description - InvoiceLKG CONN, 50A 250VDC/60.
Dielectric StrengthWithstands 2,000V minim.
Dimensions2.59 in x 2.59 in x 6.5.
Display SizeStandard
Display TypeStandard
Each - Pack DescriptionEach
Each - Width2.678 in
ECCNEAR99
Environmental ConditionsIndoor Dry Unless Prote.
EU RoHS IndicatorNo
Family SeriesHubbell Plugs & Recepta.
For EnvironmentDry
For LocationIndoor
For Maximum Cable Diame.1.25 in
For Minimum Cable Diame.0.83 in
Freight Class Code06168002
GradeIndustrial, Industrial/.
Grade - Plugs and Recep.Industrial
Gross Weight1.1 lbs
GroundingGrounded
GTIN00783585236421
Harmonization Code8536694020
Height6.5 in., 6.50 in
Housing ColorBlack, White
Housing MaterialNylon
Image Actual Or Represe.A
Industry Standard(s)Certified to CSA C22.2 .
InsulationInsulated Body
IP Rating20
Isolated GroundNo
ItemLocking Connector
Item - Plugs and Recept.Locking Connector
Item NumberHBL3764C
Item TypeConnector Body
Length2.59 in, 2.59 in.
Lowest Level UOMEach
Made in USAYes
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberHBL3764C
MarketIndustrial
MaterialNylon, Super Tough Nylon
Material - Mounting Har.Cord Mounted
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size4 AWG
Midget LockingNo
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size8 AWG
MountingCord
Mounting TypeCable
MSDS FlagNo
NEMA ConfigurationNon-NEMA
NEMA Plug Configuration.50A, Non-NEMA
NEMA Receptacle Configu.Non-NEMA
NEMA TypeNon-NEMA
Net Weight0.995 lbs
No. of Poles3
No. of Wires4
Number of Conductors4-Wire Non-Grounding
Number of Contacts4
Number of Poles3, 3-Pole
Number Of Poles3-Pole
Number Of Wires4-Wire
Number of Wires4
Operating TemperatureMaximum continuous 75?C.
Outside Diameter2.563 in
Overall Length2.59 in
PerformanceElectrical - Current In.
Phase1, 3
Power Indicating LightNo
Power IndicatorNo
Primary TypeTwist Lock
Rated Voltage250V DC/600V AC
Replaced Catalog Number3764C
Resistance PropertiesHeat Resistant
SeriesInsulgrip Series
ShroudedNo
Shrouded / Non-ShroudedNon-Shrouded
Size2.59 in x 2.59 in x 6.5.
Special FeaturesFor Use With 3D126, Sta.
StandardCertified to CSA C22.2 .
StandardsUL/CSA
Standards - RoHS Compli.CM
Sub Brand50A Twist-Lock
Sub Class CodeA08A150
Temperature RatingMaximum Continuous: 75?.
TerminationScrew
TypeLocking Socket, Connect.
UL 94 Flammability Rati.HB
UNSPSC39121421
UPC783585236421
UPC Code783585236421
Voltage600VAC/250VDC, 250V DC,.
Voltage - Plugs and Rec.600V AC/250V DC
Voltage Rating250 VDC/600 VAC, 250V D.
Voltage Rating Descript.250 VDC/600 VAC
WatertightNo
Weight1.05 lb.
Width2.678 in, 2.59 in.
Wire Connection TypeScrew Terminals
Wire Size#8 AWG to #4 AWG, 4-8 A.
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomrobsindustrial.comHBL3764C126.151In StockHUBBELL126.15 @ 1
Onlinecomponents.comHBL3764C129.141In StockHUBBELL129.14 @ 1
thumbzoomZoroG1479143160.231In StockHubbell0.95160.23 @ 1
thumbzoomKelly HayesHBL3764C163.18175Hubbell Wiring Device-Kellems163.18 @ 1
Sager ElectronicsHBL3764C182.281In StockHubbell Wiring Device-Kellems182.28 @ 1
Grainger3D125205.511360HUBBELL WIRING DEVICE-KELLEMS205.5 @ 1
standardelectricsupply.com131068208.571In StockHubbell208.57 @ 1
thumbzoomMRO Supply1022328208.571In StockHubbell Wiring208.57 @ 1
thumbzoomgordonelectricsupply.comHBL3764C211.71In StockHUBBELL211.7 @ 1
thumbzoomturtle.comHUB HBL3764C223.421In StockHubbell223.42 @ 1
cbtcompany.comHBL3764C228.081In StockHubbell Wiring Device-Kellems228.08 @ 1
thumbzoomGalcoHBL3764C-HBBL229.921In StockHubbell1.1229.92 @ 1
thumbzoomRadwellHBL3764C240.01In StockHUBBELL KELLEMS240.0 @ 1
thumbzoombscsource.comHBL3764C246.591In StockHubbell Wiring Device-Kellems246.59 @ 1
thumbzoomcrescentelectric.com111774255.2412Hubbell Wiring Device - Kellems255.24 @ 1
Graybar88126769260.926411Hubbell Wiring Device - Kellems260.9264 @ 1
thumbzoomNational Supply Network67870626263.921In StockHubbell Wiring Device-Kellems263.92 @ 1
Newark94F9732265.721In StockHUBBELL WIRING DEVICES265.72 @ 1
thumbzoommayerelectric.comHUBHBL3764C271.4713HUBBELL WIRING DEVICES1.05271.47 @ 1
steinerelectric.com26612276.461In StockHubbell Wiring Device-Kellems276.46 @ 1
us.rs-online.com70116363291.571In StockHubbell Wiring Device-Kellems291.57 @ 1
thumbzoomUnited Electric51127321.5512WIRING DEVICE-KELLEMS321.55 @ 1
kirbyrisk.com489197331.6715Hubbell331.67 @ 1
thumbzoomRaptor SuppliesAC8PZB441.7554961In StockHUBBELL WIRING DEVICE-KELLEMS441.755496 @ 1
