Hubbell Wiring Systems IG20CRLA

mpnIG20CRLA
brandname: HUBBELL WIRING DEVICE-KELLEMS
manufacturername: HUBBELL WIRING DEVICE-KELLEMS

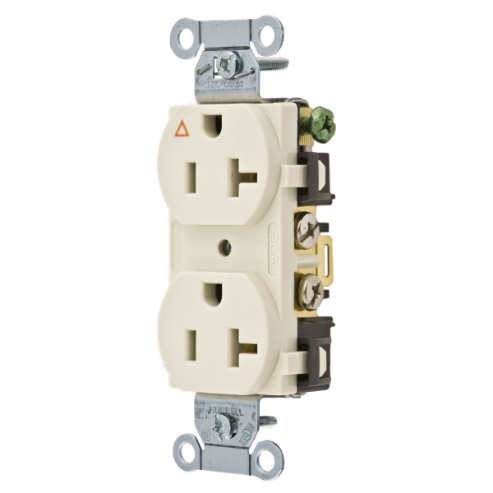

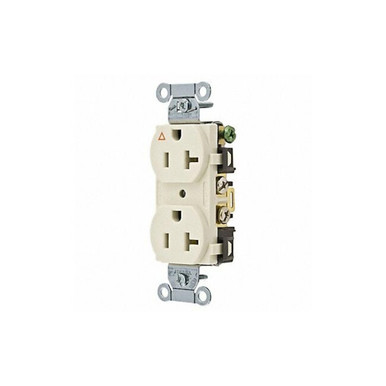

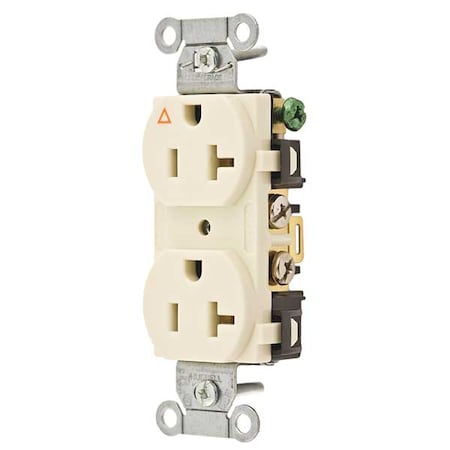

Hubbell Wiring Systems IG20CRLA SpikeShield Commercial Specification Grade Straight Blade Isolated Ground Receptacle, 125V, 20A, 1 HP, 2-Pole, 3-Wire, Light Almond

Brand: Hubbell Wiring Systems
PartNumber: IG20CRLA
Model: IG20CRLA
Color: Light Almond
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Accessory Group	-
Additional Electrical P.	Isolated Ground
Additional Electrical P.	Isolated Grounding
AFCI	No
Amperage	20 A
Amps	20
Amps - Plugs and Recep.	20
Amps - Plugs and Recept.	20 A
Application	Commercial Specificatio.
Application Environment	Commercial
Approvals	CSA, UL
Boot Code	-
Brand	Hubbell Wiring Device-K.
Carton Quantity	10
Color	Light Almond
Color - Plugs and Recep.	Light Almond
Comments	Commercial Specificatio.
Connection Orientation	Straight
Connectivity	Side Wired
Contact Material	Brass
Corrosion Resistant	No
Country of Origin (subj.	China
Cover Type	No Cover
Current / amperage rati.	20 A
Current Rating	15 A, 20 A
Current rating	20 A
Current Stock	57
Description	Smooth
Dielectric Strength	Withstands 2,000V minim.
Dielectric strength	Withstands 2,000V minim.
Dimensions	1.32 in x 1.06 in x 3.2.
Display Size	Standard Sized Product
Display size	Standard Sized Product
Environmental conditions	Indoor Dry Unless Prote.
Face Plate Height	2.73 in
Face Plate Width	1.33 in
Family Series	Hubbell Plugs & Recepta.
Flange Type	Non-Flanged
For Location	Indoor
GFCI	No
Grade	Federal Specification
Gross Weight	0.15 lbs
Grounding	Isolated Ground
Height	3.28 in
Horsepower Rating	1 hp
Housing Color	Light Almond
Housing Material	Nylon
HP	1 hp
Illuminated	No
Includes	Grounding Staple, Mount.
Includes Mounting Hardw.	Yes
International Shipping	No
Isolated Ground	Yes
Isolated Grounding	Yes
Item	Traditional Duplex
Item - Plugs and Recept.	Isolated Ground Recepta.
Item Number	IG20CRLA
Item type	Traditional Duplex
Key Resistance Properti.	Corrosion Resistant
Length	1.32 in
Manufacturer	Hubbell
Manufacturer Part Number	IG20CRLA
Market	Commercial
Material	Nylon
Material - mounting har.	Screw Mounting
Max HP	1
Maximum Horsepower	1
Maximum Operating Tempe.	75 Degrees C
Maximum Wire Size	10 AWG
Minimum Operating Tempe.	-40 Degrees C
Minimum Wire Size	12 AWG
Mount Hole Center-to-Ce.	3.28 in
Mount Type	Flush
Mounting Type	Flush
Mounting Type - Plugs a.	Flush
Mpn	IG20CRLA
Multimedia Outlet	No
NEMA Configuration	5-20, 5-15R
NEMA Enclosure Rating	1
Nema Rating	5-20R
NEMA Receptacle Configu.	5-20R
NEMA Receptacle Configu.	5-20R
Net Weight	0 lbs
Number of Gangs	1
Number of poles	2-Pole
Number of Poles	2
Number Of Poles	2-Pole
Number of Poles & Wires	2 Pole / 3 Wire
Number Of Wires	3-Wire
Number of Wires	3
Number of wires	3-Wire
OEM brand name	Hubbell Wiring Device-K.
Operating temperature	Maximum continuous 75C .
Outlet Type	Duplex
Outlet Type - Plugs and.	Standard Duplex
Overall Depth	3.28 in
Phase	1, Single Phase
Polarized	Yes
Power Indicator	No
Primary Resistance Prop.	Corrosion Resistant - C.
Product Type	Receptacle
Receptacle Type	Duplex
Resistance Properties	Corrosion Resistant
Series	Commercial Specificatio.
Shrouded	No
SKU	ZO-G1037827
Special Features	Isolated Ground
Standards	CSA Certified C22.2 No..
Style	Smooth Face
Sub-Category	Duplex Receptacles
SubCategory	Electrical
Surge Protection	No
Surge Suppression	No
Tamper Resistant	No
Type	Standard Duplex
UL 94 Flammability Rati.	V-2
UPC	783585147673
USB	No
Voltage	125VAC, 125 V, 125 VAC
Voltage - Plugs and Rec.	125V AC
Voltage Rating	125 V
Voltage rating descript.	125 V
Wattage	2500 W
Weather Resistant	No
Weather Resistant - Plu.	No
Width (in)	1.06
Wire Connection Type	Screw Terminals
Wire Connection Types	Screw Terminals
Wire size	#12 AWG to #10 AWG
Wire Size	#12 AWG to #10 AWG
Wiring Method	Side
Wiring Method - Plugs a.	Side
