Leviton 8300-HT

B003F77QU2

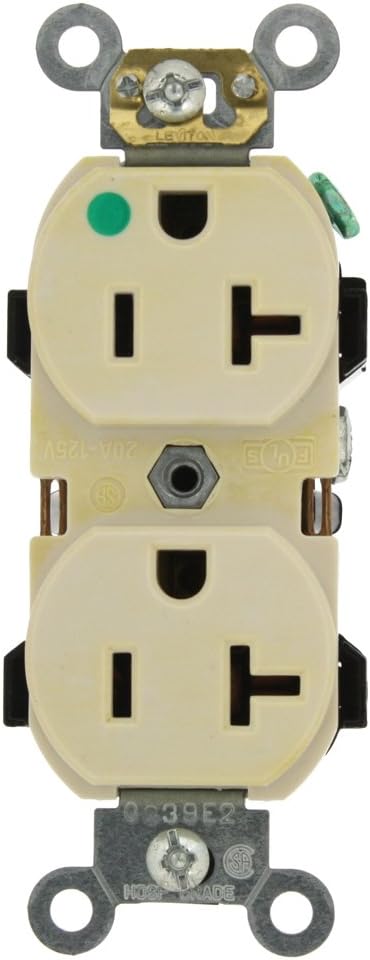

Leviton 8300-HT 20-Amp, 125-Volt, Heavy Duty Hospital Grade, Duplex Receptacle, Straight Blade, Self Grounding, Light Almond

Leviton 8300-HT 20-Amp, 125-Volt, Heavy Duty Hospital Grade, Duplex Receptacle, Straight Blade, Self Grounding, Light Almondzoom

Attributes

Key Value
(2P) Double PolePole
-40?CStart Temp. (Min)
07847747522UPC
10-Year LimitedWarranty
125 VoltVoltage (V)
20 AmpAmperage
20AAmp Rating
3Wire Number
5-20RNEMA
60?CStart Temp. (Max)
8300-HTStock Code
Amperage Rating20A, 20 A
Amperage Rating:20 A
Amps20
ASINB003F77QU2
Body MaterialNylon
CategoryElectrical Receptacles
Clamp NutsZinc-Plated Steel
ColorAlmond, Light Almond
Color FamilyBrown
Color:Light Almond
Connection:Back and Side Wired
Country of OriginMX - Mexico, MX
Description:LA REC DUP HG NRW BODY .
Device TypeDuplex Receptacle Outlet
Dielectric Strength:2000 (Min.) V
Dielectric VoltageWithstands 2000V per UL.
Dimensions4.06 in H x 1.51 in W x.
ECCNEAR99
EnclosureNEMA WD-1/WD-6
Environmental Condition.Flammability (Rated V-2.
Face MaterialNylon
Feature 4Smooth Face
FlammabilityRated V-2 per UL94
For additional options .Notes
GradeHospital
Ground ClipsBrass
GroundingSelf-Grounding
Grounding ScrewBrass
Horsepower1 hp
Included Components8300-HT
Item model number8300-HT
Item Package Quantity1
LevitonBrand
Light AlmondColor
Line ContactsPhosphor Bronze
ManufacturerLeviton Manufacturing, .
MaterialNylon, Thermoplastic
Material:Thermoplastic
MFG Part #:8300-HT
Mounting:Wall Box
NEMAWD-6
NEMA Configuration5-20R
NEMA RatingNEMA 5-20R
NEMA Rating:5-20R
No. of Poles2
No. of Wires3
Number of Poles2
Number Of Poles:2
Number of Wires3
Number Of Wires:3
NylonMaterial
Operating Temperature-40?C to 60?C
Part Number8300-HT
Phase:1
Pole2
Size:46 H x 1.51 W x 1.18 D .
Standard Duplex OutletsFamily
Standard Pack:Order QTY must be in mu.
Standard:NEMA (WD-1, WD-6);ANSI .
Strap MaterialGalvanized Steel with R.
Supplier:LEVITON
Temperature Rating-40 to 60 deg C
Temperature Rating:-40 to +60 DEG C
Terminal Accom.14-10 AWG
Terminal IDBrass-Hot, Green-Ground.
Terminal ScrewsBrass
Terminal TypeBack/Side Wire
Torque Range14-16 inch pounds
TypeReceptacle, Hospital Gr.
Type:Straight Blade;Duplex O.
UL / CSA ListedUL Listed
UL Fed Spec WC-596File E13399
UL498HGFile E13399
UNSPSC39121406
UPC078477475225
UPC:078477475225
Voltage125, 125 VAC
Voltage Rating125 VAC
Voltage Rating:125 V
Volts AC120
Wire3
Wire Size:14-10 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Global IndustrialB3845775.31In StockLeviton5.3 @ 1
kscdirect.comLEV 8300-HT5.861In StockLEVITON5.86 @ 1
thumbzoomLighting Supply8300-HT6.481In StockLeviton6.48 @ 1
thumbzoomZoroG38452236.991In StockLeviton6.99 @ 1
thumbzoomAmazonB003F77QU28.251In StockLeviton8.25 @ 1
thumbzoomimprovedepot.com8681849.991In StockLeviton9.99 @ 1
thumbzoomturtle.comLEV 8300-HT10.981In StockLeviton10.98 @ 1
Dale-Electric8300-HT11.9819Leviton Manufacturing11.98 @ 1
Graybar2528212415.0641In StockLeviton15.064 @ 1
thumbzoomPlatt.com079379316.71In StockLeviton16.7 @ 1
thumbzoomRadwell8300-HT26.050In StockLEVITON26.0 @ 50
thumbzoombulbspro.com8300-HT32.581In StockLeviton32.58 @ 1
steinerelectric.com59162637.711In StockLeviton37.71 @ 1
