Leviton M1636-R

B003CYKAWY

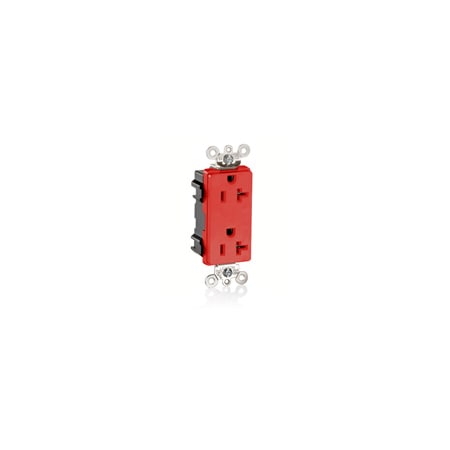

Leviton M1636-R Lev-Lok Modular Wiring Device 20-Amp, 125-Volt, Decora Plus Duplex Receptacle, Commercial Grade, Straight Blade, Self Grounding, Red

Leviton M1636-R Lev-Lok Modular Wiring Device 20-Amp, 125-Volt, Decora Plus Duplex Receptacle, Commercial Grade, Straight Blade, Self Grounding, Redzoom

Attributes

Key Value
(2P) Double PolePole
07847736428UPC
10 Year LimitedWarranty
125 VACVoltage (V)
20 AAmperage
20A-125VAmp Rating
3Wire Number
5-20RNEMA
Amperage20 A
Amperage Rating20 A
Amperage Rating:20 A
ASINB003CYKAWY
Base MaterialNylon
Batteries Required?No
CategoryElectrical Receptacles
ColorRed
Color:Red
Connection:Modular Terminal
Country of OriginMX
Cover MaterialNylon
cULusListed
cULus / ANSI / NOM List.UL Listed
Description:RD LEVLOK COMM RECEP DE.
Device TypeDuplex Receptacle Outlet
Dielectric Strength:2000 (Min.) V
Dimensions4.062 in H x 1.549 in W.
EnclosureNEMA WD-1/WD-6
Environmental Condition.Flammability (Rated V-2.
Feature 4Smooth Face
FlammabilityRated V-2 per UL94
For additional options .Notes
GradeHeavy-Duty Industrial S.
Ground ClipsBrass
GroundingSelf-Grounding
Horsepower1 hp
Horsepower Rating1 hp
Item model numberM1636-R
Item Package Quantity1
Lev-Lok? Modular DevicesFamily
LevitonBrand
Line Contacts0.040 Thick Solid Brass
Locking PinsSolid Brass
M1636-RStock Code
ManufacturerLEVITON, Leviton Manufa.
MaterialThermoplastic, Nylon, T.
Material:Thermoplastic
Maximum Working Voltage125V as rated
MFG Part #:M1636-R
Mounting ScrewsTriple Combination Head.
Mounting StrapGalvanized Steel with R.
Mounting:Wall Box
NEMAWD-1 & WD-6
NEMA RatingNEMA 5-20R
NEMA Rating:5-20R
NOM Certified57
Number of Poles2
Number Of Poles:2
Number of Wires3
Number Of Wires:3
Operating Temperature-40?C to 60?C
Part NumberM1636-R
Phase:1
Pole2
RedColor
Size:462 H x 1.549 W x 1.245.
Standard Pack:Order QTY must be in mu.
Standard:NEMA (WD-1, WD-6);ANSI .
Sub Brand:Lev-Lok;Decora Plus
Supplier:LEVITON
Temperature Rating-40 to 60 deg C
Temperature Rating:-40 to +60 DEG C
Terminal TypeModular
TerminationModular
TypeSelf-Grounding, Heavy D.
Type:Straight Blade;Duplex O.
UNSPSC39121406
UPC078477364284
UPC:078477364284
Voltage125, 125 VAC
Voltage Rating125 VAC
Voltage Rating:125 V
Wire3
Wire Size:12 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Dale-ElectricM1636-R11.861In StockLeviton Manufacturing11.86 @ 1
thumbzoomimprovedepot.com86911711.991In StockLeviton11.99 @ 1
thumbzoomLighting SupplyM1636-R12.211In StockLeviton12.21 @ 1
kscdirect.comLEV M1636-R12.271In StockLEVITON12.27 @ 1
thumbzoomgordonelectricsupply.comM1636-R12.361In Stock755LEVITON12.36 @ 1
thumbzoomPlatt.com080441212.741In StockLeviton12.74 @ 1
thumbzoomturtle.comLEV M1636-R13.771In StockLeviton13.77 @ 1
thumbzoomZoroG384346414.991In StockLeviton14.99 @ 1
thumbzoomRadwellM1636-R16.050In StockLEVITON16.0 @ 50
thumbzoomAmazonB003CYKAWY17.351In StockLeviton17.35 @ 1
us.rs-online.com7240431619.350In StockLeviton19.3 @ 50
thumbzoombulbspro.comM1636-R31.311In StockLeviton31.31 @ 1
