Lovejoy 68514426085

mpn68514426085
brandname: LoveJoy
manufacturername: LoveJoy

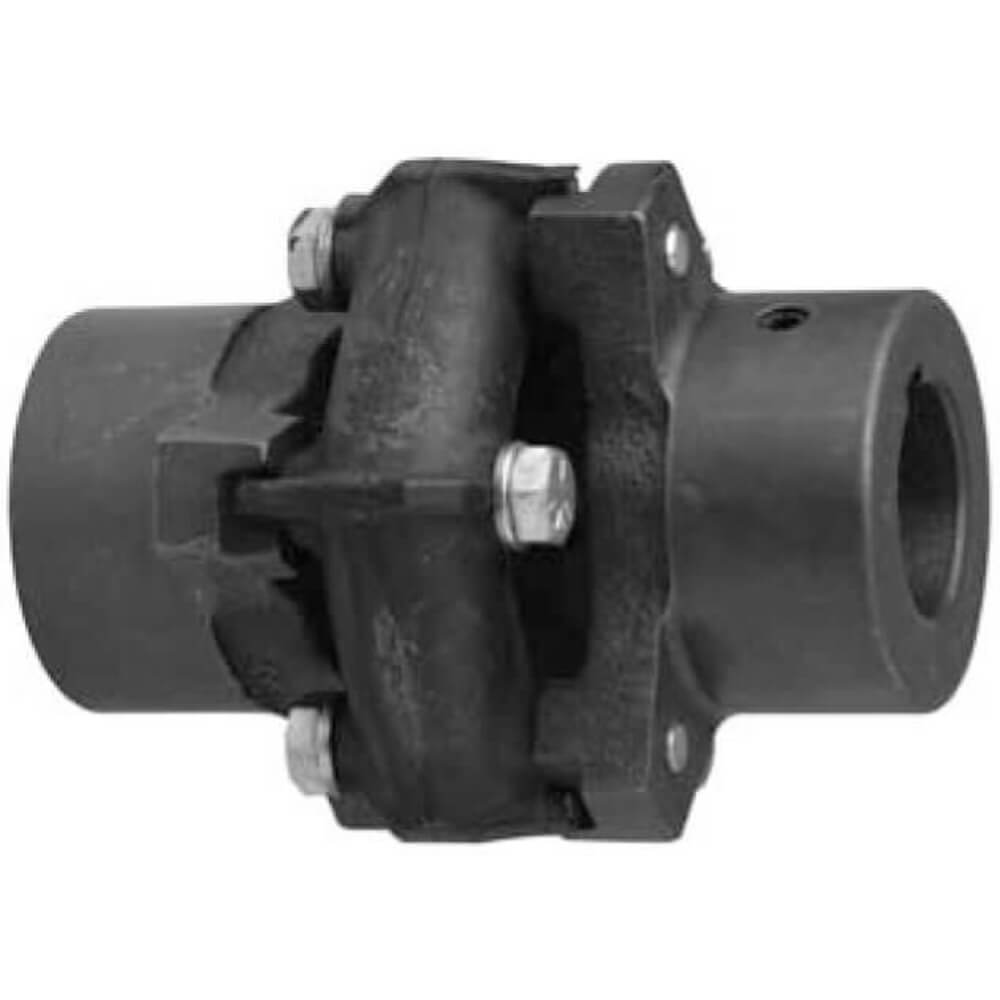

Lovejoy 68514426085 34 Saga Coupling, 2-1/8" x 2-1/8" Bore, 4.34" Length Through Bore, 11.09" OD, 12.66" OAL

Lovejoy 68514426085 34 Saga Coupling, 2-1/8" x 2-1/8" Bore, 4.34" Length Through Bore, 11.09" OD, 12.66" OAL

zoom

Brand: Lovejoy
PartNumber: 68514426085
Model: 68514426085
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
# of Bolts	8
Bolt Grade	# 5
Bolt Size	3/4-10 x 4-1/2
Bore Type	Rough Stock Bore
Color	Gray/Metallic
Complete Coupling Weight	122.00 lb
Connection Type A x B	2-1/8 x 2-1/8 in
Coupling	S34
Coupling Type	Torsional
Cubic in ches	1557.02935 in3
Dimension BC	8.250 in (209.55 mm)
Dimension HD	6.250 in
Dimension L	3.440 in (87.38 mm)
Dynamic Torsional Stiff.	2000.00 in-lb/deg (1145.
Element Material	Natural Rubber
Length thru Bore	4.340 in
Material	Steel
Max. Bore (Dimensions I.	4.000 in
Max. Shock Load	36000.00 in-lb
Max. Speed	2800.00 rpm
Moment of in ertia WR2	832.000 lb-in2
Operating Temperature R.	-60 to 200 ?F
Outside Diameter	11.090 in
Overall Length	12.660 in
Rated HP at 100 rpm for.	19.04 hp
Rated Torque for 1.0 Se.	12000.00 in-lb
Rated Torque for 1.0 SF	12000.00 in-lb
Recommended Torque (Dry)	260.00 ft-lb
Recommended Torque (Wet)	200.00 ft-lb
Rough Stock Bore	2-1/8 in
Set Screw Thread Size (.	No Setscrew
Specific Torsional Stif.	9.55 in-lb /rad
Style	Flexible
Type	Torsional
Weight	105.00 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	68514426085	3019.0	1	In Stock		Lovejoy	105.0	3019.0 @ 1
	usmegastore.com	68514426085	3019.0	1	In Stock		Lovejoy	105.0	3019.0 @ 1
	heavydutydepot.com	68514426085	3019.0	1	In Stock		Lovejoy		3019.0 @ 1
	Amazon	B013T0Y2OM	3534.06	1	In Stock	42	Lovejoy		3534.06 @ 1
	Raptor Supplies	AN9DAR	5349.7265445	1	In Stock		LOVEJOY		5349.7265445 @ 1
