Lovejoy 68514426092

mpn68514426092
brandname: LOVEJOY
manufacturername: LOVEJOY

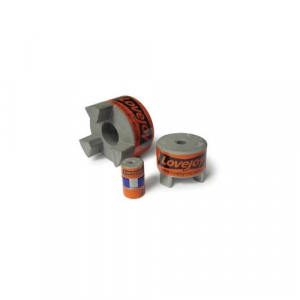

Lovejoy 26092 Size L225 Standard Jaw Coupling Hub, Cast Iron, Inch, 2.063" Bore, 5" OD, 0.5" x 0.25" Keyway

Lovejoy 26092 Size L225 Standard Jaw Coupling Hub, Cast Iron, Inch, 2.063" Bore, 5" OD, 0.5" x 0.25" Keyway

zoom

Brand: Lovejoy
PartNumber: 68514426092
Model: 68514426092
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
# of Jaws	3
Bore Size	2-1/16 in
Color	Metallic
Coupling Size	L225
Coupling Type	Jaw
Cubic inches	79.50000 in3
Description:	L225-HUB-2-1/6-1/2X1/4K.
Dimension G	1 in (25.40 mm)
Dimension SL	1.000 in (25.40 mm)
Dimension T	1/2-13
Elastomeric Member	SOX (NBR) Rubber
Hub Length	3.180 in (80.77 mm)
Hub Style	2
Keyway Size (W x D)	1/2 x 1/4 in
Length thru Bore	2.180 in (55.37 mm)
Manufacturer	LOVEJOY INC
Material	Cast Iron
Max. Bore (Dimensions I.	2.625 in (67 mm)
Max. Speed	4200 rpm
MFG Part #:	68514426092
Min. Bore (Dimensions I.	0.750 in (19.00 mm)
Nominal Torque	2340 in-lb
Outside Diameter	5.00 in (127.00 mm)
Overall Length	5.340 in (135.64 mm)
Rated HP at 1,200 rpm	44.40 hp
Rated HP at 1,800 rpm	67.00 hp
Rated HP at 100 rpm	3.70 hp
Rated HP at 3,600 rpm	133.20 hp
Supplier:	LOVEJOY INC
UPC:	685144260925
Weight	7.93 lb
Weight (Complete Coupli.	19.60 lb
Weight (Complete Coupli.	15.00 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	heavydutydepot.com	68514426092	115.3	1	In Stock		Lovejoy		115.3 @ 1
	usmegastore.com	68514426092	119.0	1	In Stock		Lovejoy	7.93	119.0 @ 1
	kscdirect.com	LOV 68514426092	135.37	1	In Stock		LOVEJOY INC		135.37 @ 1
	cbtcompany.com	68514426092	193.3	1	In Stock		Lovejoy		193.3 @ 1
