Lovejoy MDS50C 3/4X3/4

B007IAJJRK

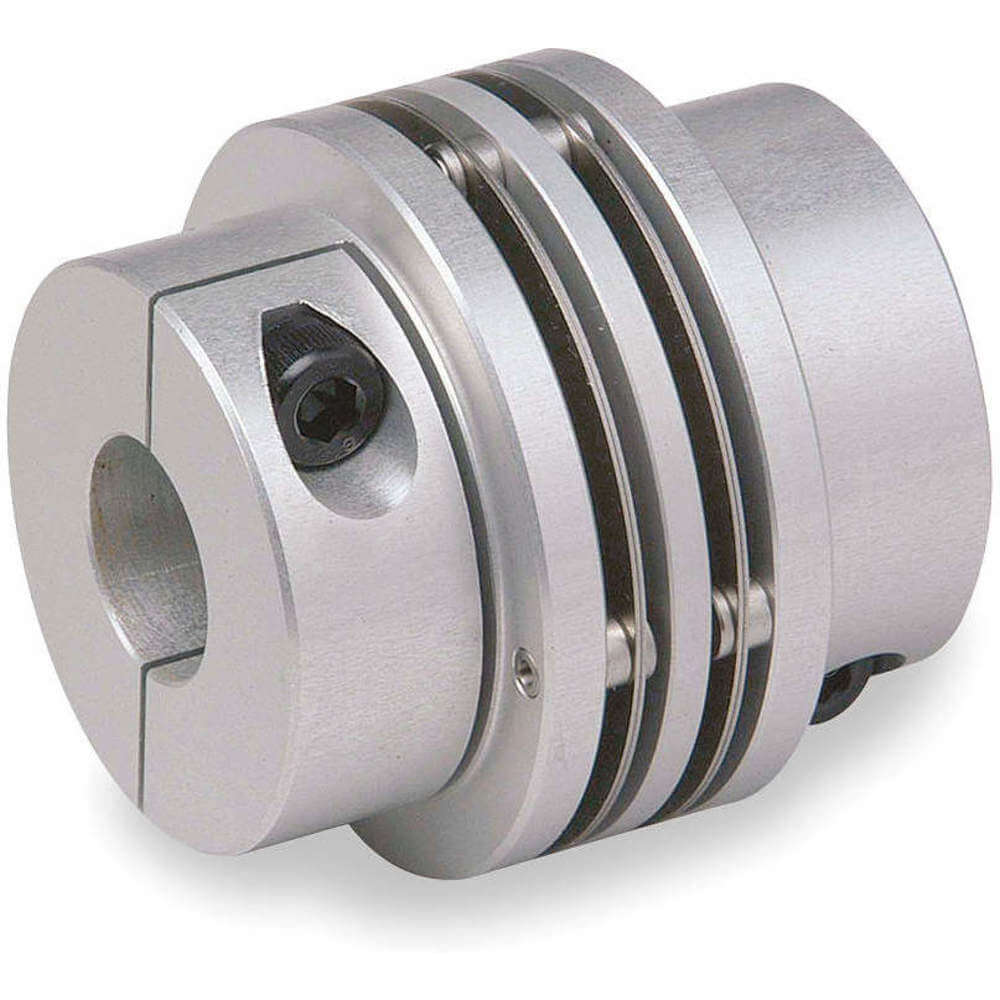

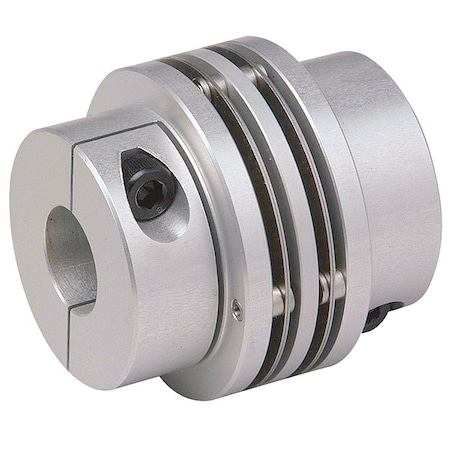

Lovejoy - MDS50C 3/4X3/4 - Motion Control Coupling: 1 Piece Clamp, 3/4 in x 3/4 in, 66 in-lb Rated Torque, Aluminum

Lovejoy - MDS50C 3/4X3/4 - Motion Control Coupling: 1 Piece Clamp, 3/4 in x 3/4 in, 66 in-lb Rated Torque, Aluminumzoom

Attributes

Key Value
Bore Dia.3/4 in x 3/4 in
Country of Origin (subj.Japan
Disc TypeStainless Steel
FinishAluminum
Hub Dia.1.535 in
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Keyway (In.)-
Length through Bore0.764 in
Length through Bore (In.0.764
Length through Bore (mm)19.40
Lubrication-
MaterialAluminum
Material - CouplingsAluminum
Max. Angular Misalignme.2 Degrees
Max. Axial Misalignment.+/-0.024
Max. Bore (In.)0.787 in
Max. Bore (mm)20 mm
Max. Parallel Misalignm.0.007 in
Max. RPM3,100 RPM
Max. Temp.300 Degrees F
Max. Temp. Range (F)300
Min. Bore (In.)0.394 in
Min. Bore (mm)10.0
Outside Dia.1.969 in
Outside Dia. (In.)1.969
Outside Dia. (mm)50
Overall Length2.05 in
Overall Length (In.)2.047
Overall Length (mm)52
Rated Torque66 in-lb
Screw SizeM5
Screw Size (mm)M5
Screw TypeClamp Screw
Setscrew Location-
Shaft Locking Type - Co.1 Piece Clamp
SizeMDS50C
StyleMini Disc Spacer Clamp
Torque (In.-Lbs.)66

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1250121148.01In Stock16Lovejoy0.15148.0 @ 1
Grainger1CYL4237.981In StockLOVEJOY237.98 @ 1
thumbzoomRaptor SuppliesAA9FXV245.31419251In StockLOVEJOY245.3141925 @ 1
