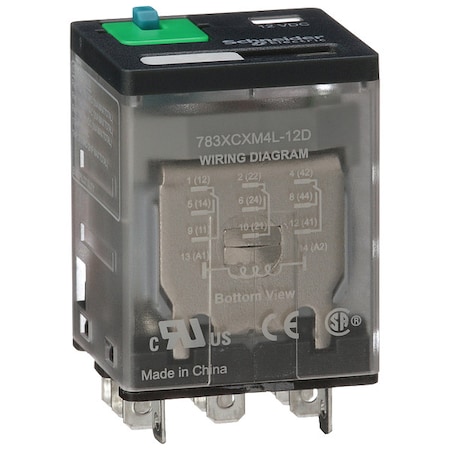

Magnecraft / Schneider 783XCXM4L-12D

B07SGG6PYC

783XCXM4L-12D, MagneCraft/Schneider (2 Items)

783XCXM4L-12D, MagneCraft/Schneider (2 Items)zoom

Attributes

Key Value
AC Contact Rating - Rel.12A @ 277V, 15A @ 120V
ApprovalsCE, CSA, UL
Base Type - Plug In Rel.Square
Bifurcated ContactNo
Body Depth1.54 in
Body Depth - Relay1.1 in
Body Height1.07 in
Body Height - Relay1.6 in
Body Width1.2 in
Body Width - Relay1.2 in
Coil Voltage120 VAC ; 110/115/120/1.
Coil Volts12V DC
Contact Current Rating15 A
Contact Form3PDT
Contact Form - Relay3PDT
Contact MaterialGold Flashed Silver All.
Contact Voltage Rating300 VAC
Contacts3PDT
Control Voltage120
Current Rating15 A
DC Contact Rating - Rel.12A @ 28V
Depth0.157 in
Dielectric Rating2500 V (RMS) (Pole to P.
Dimensions1.10 x W 1.21 x H 1.54 .
DiodeNo
EnclosurePlastic
Family SeriesSchneider Relays, 700 S.
FeaturesGold Flashed Contacts
Flat Pin Width0.187 in
FunctionGeneral Purpose
Gross Weight0.0022 lbs
Height1.575" (40mm)
HP @ 120V1/2 hp
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number783XCXM4L-12D
Length1.212 in
Life10000000 Operations
ManufacturerSchneider
Manufacturer Part NumberC833014M
Max Current15 A
Maximum Operating Tempe.55 ?C
Mechanical LatchYes
Minimum Operating Tempe.-40 ?C
MountingPlug In
Mounting - RelayPlug In
Mounting TypeSocket Mount
Net Weight0.0022 lbs
Nominal Coil Voltage12 VDC
Number of Electrical Co.11
Number of Pins - Relay11
Overall Depth2.07 in
Overall Height - Relay1.85 in
Pins11
Power Consumption - Rel.1.5 W
Primary TypePower Relays
Product Header783 Series Ice Cube Rel.
Product Series700
Published Coil Voltage12 VDC
Push-to-TestYes
Rating @ 120 VAC15 A
Rating @ 220/240/277 VAC12 A
Rating @ 24/28/30 VDC12 A
Relay TypeElectromechanical
RoHSYes
Safety GuidedNo
Series791 Series
StandardsUL, CSA, CE, RoHS, CE C.
Status IndicatorYes
TerminationQC Tabs, .187 " Flat Bl.
Voltage Rating300 V
