Martin HMK424A

B004BDOCU6

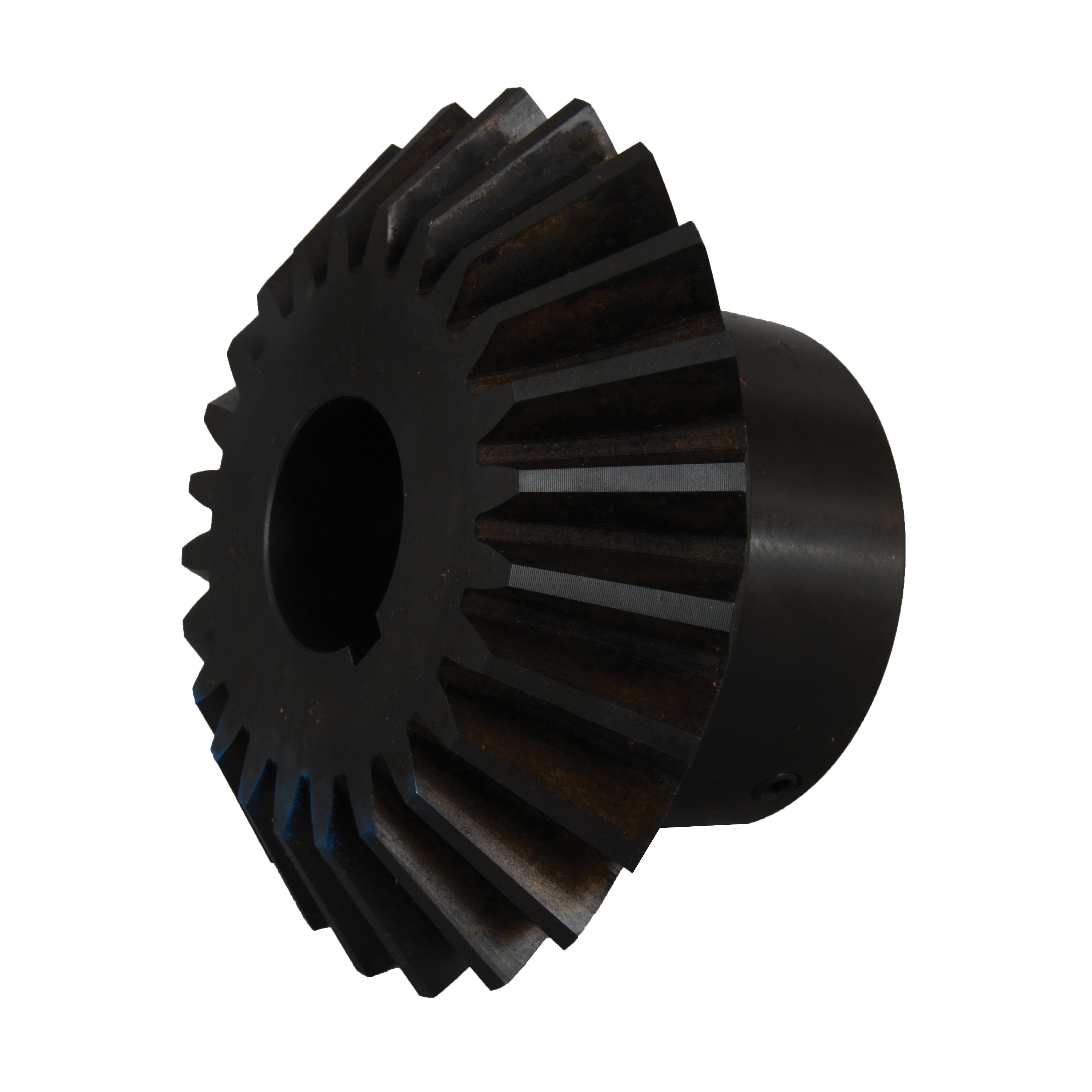

Martin HMK424A Miter Gear, 20? Pressure Angle, High Carbon Steel, Inch, 1.330" Face, 1 3/4" Bore Diameter, 6" Pitch Diameter, 6.36" Outer Diameter, 24 Teeth

Martin HMK424A Miter Gear, 20? Pressure Angle, High Carbon Steel, Inch, 1.330" Face, 1 3/4" Bore Diameter, 6" Pitch Diameter, 6.36" Outer Diameter, 24 Teethzoom

Attributes

Key Value
Bearing Type - Sprockets1.75
Bore TypeBored to Size
Diametral Pitch4
Face Width1.333
Gear Ratio0.0423611111111111
Gear TypeRight Angle Drive
Hub Dia.4
Hub Projection (In.)1.938
Keyway Size3/8 X 3/16
Length through Bore3.5625
Manufacturer Number1
MaterialSteel
Mating GearM424, M424A, HM424, HM4.
Min. Bore1.75
Mounting Distance5.5
Number Of Teeth24
Outside Dia6.354"
Outside Diameter6.354
Pitch Diameter6
Pressure Angle20
Set Screw LocationOver Keyway
Set Screw Size3/8-15x3/8
Storage Height3.5625
Storage Length6.354
Storage Width6.354
Weight13.64

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comHMK424A567.571In StockMartin1.0567.57 @ 1
thumbzoomMRO Supply250924653.61In StockMartin Sprocket653.6 @ 1
thumbzoomapexindustrialautomation.comHMK424A738.861In StockMartin Sprocket738.86 @ 1
thumbzoomPurvisHMK424A832.341In StockMartin832.34 @ 1
thumbzoomZoroG3318258872.991In StockMartin Sprocket & Gear13.64872.99 @ 1
