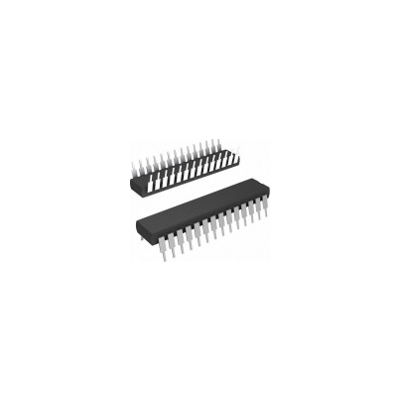

MICROCHIP TECHNOLOGY PIC18F242-I/SP

mpnPIC18F242-I/SP
brandname: Microchip Technology Inc.
manufacturername: Microchip Technology Inc.

8-bit Microcontrollers - MCU 16KB 768 RAM 23I/O (1 piece)

Brand: MICROCHIP TECHNOLOGY
PartNumber: PIC18F242-I/SP
PackageQuantity: 1
Binding: Electronics
Manufacturer: Microchip Technology
Label: Microchip Technology

Attributes

Key	Value
A/D Bit Size	10 bit
A/D Channels Available	5
ADC Resolution	10 bit
Alternate Part No.	579-PIC18F242-I/SP
Architecture	RISC
Brand	Microchip Technology
BRAND	Microchip Tech
Comparator Type	2
Core	PIC
CPU Speed	10 MIPS
Data Bus Width	8 bit
Data RAM Size	768 B
Data Rate	10 MIPS
Data ROM Size	256 B
Data ROM Type	EEPROM
Dimensions	35.18 x 7.49 x 3.43 mm
EEPROM Memory	256 B
Family Name	PIC18
Frequency	40
Height	0.135" (3.43mm)
Input Output	25
Interface	MSSP/SPI/I2C/PSP/USART
Interface Type	I2C, MSSP, PSP, SPI, US.
Length	1.385 in
Manufacturer	Microchip
Manufacturer Part No.	PIC18F242-I/SP
MANUFACTURERS PART NUMB.	PIC18F242-I/SP
Maximum Clock Frequency	40 MHz
Maximum Number of I2C C.	1
Maximum Number of SPI C.	1
Maximum Number of UART .	1
Maximum Operating Tempe.	+ 85 C, +85 ?C
Memory Type	Flash
Minimum Operating Tempe.	- 40 C, -40 ?C
Mounting Style	Through Hole
Mounting Type	Through Hole
Number of ADCs	5 x 10 bit
Number of Bits	8
Number of I/Os	23 I/O
Number of IO Ports	23
Number of Pins	28
Number of PWM Units	1
Number of Timers	4 Timer, 4
On-Chip ADC	Yes
Operating Supply Voltage	2 V to 5.5 V
Operating Voltage	4.2 to 5.5 V
Package Type	SPDIP
Package/Case	SPDIP-28
Packaging	Tube
Processor Series	PIC18
Product Category	8-bit Microcontrollers .
Program Memory Size	16 kB
Program Memory Type	Flash
Programmable Memory	16K Bytes
Pulse Width Distortion	2 x 10 bit
PWM Channels	2
PWM Resolution	10 bit
RAM Size	768 B
Series	PIC 18F Series, PIC18
Speed	40 MHz
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.2 V
Temperature Operating R.	-40 to +85 ?C
Timer Resolution	8, 16 bit
Timers	1 x 8 bit, 3 x 16 bit
Type	PIC
TYPE	Microcontrollers
USB Channels	0
Voltage Range	2-5.5 V
Width	0 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Hotenda	H2308345	4.99	1	741	Microchip Technology	4.99 @ 5
Avnet	61K3470	5.28	1	5	Microchip	5.28 @ 5
Global Industrial	WBB2871825	5.4	10	5	Microchip Tech	5.4 @ 10
Onlinecomponents.com	PIC18F242-I/SP	5.984	15	201	Microchip	5.984 @ 5
Newark	87K3177	7.13	1	41	MICROCHIP	7.13 @ 5
us.rs-online.com	70045664	7.49	1	813	Microchip Technology Inc.	7.49 @ 5
TME	PIC18F242-I/SP	8.44	1	5	MICROCHIP TECHNOLOGY	8.44 @ 5
swatee.com	PIC18F242-I/SP	11.39	1	88	Microchip	11.39 @ 5
RS Delivers	467-1993P	11.568	1	1343	Microchip	11.568 @ 5
Radwell	PIC18F242ISP	11.84	1	5	MICROCHIP TECHNOLOGY INC	11.84 @ 5
