Molex / Waldom 09-48-2151

B07QQDB1DK

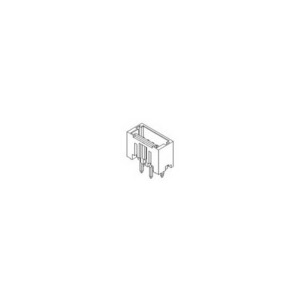

09-48-2151, Conn Socket Strip RCP 15 POS 3.96mm Solder RA Thru-Hole KK Tray (25 Items)

09-48-2151, Conn Socket Strip RCP 15 POS 3.96mm Solder RA Thru-Hole KK Tray (25 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.A-41815-0211
ApplicationsAutomotive, General Pur.
Base Product Number000948
CategoryConnectors, Interconnec.
Connector TypeReceptacle
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Post0.145" (3.68mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeFemale Socket
Country of Origin (subj.India
Current Rating (Amps)4.5A
DescriptionCONN RCPT 15P 0.156 TIN.
Detailed Description15 Position Receptacle .
Digi-Key Part Number0009482151-ND
Fastening TypeLocking Ramp
FeaturesBoard Hooks
Ingress Protection-
Insulation ColorNatural
Insulation Height0.308" (7.82mm)
Insulation MaterialPolyester
ManufacturerMolex
Manufacturer Product Nu.0009482151
Manufacturer Standard L.23 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeBoard Edge, Through Hol.
Number of Contacts15
Number of Positions15
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 80?C
PackageTray
Pitch3.96 mm (0.156")
Pitch - Mating0.156" (3.96mm)
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating-
SeriesKK 396 Series, KK396, 4.
StyleBoard to Board or Cable
TerminationSolder
TypeReceptacle
Voltage Rating600V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 09-48-21511.514025MOLEX1.51 @ 40
thumbzoomjensentools.com101503892.01125Molex2.01 @ 25
Newark54H66582.1438525MOLEX2.14 @ 250
thumbzoomDigi-Key30717232.2616938525Molex2.26169 @ 385
us.rs-online.com707639582.69125Molex Incorporated2.69 @ 25
thumbzoomZoroG33113723.08325Molex3.08 @ 25
