Molex / Waldom 15-24-7040

B07QP1C9T8

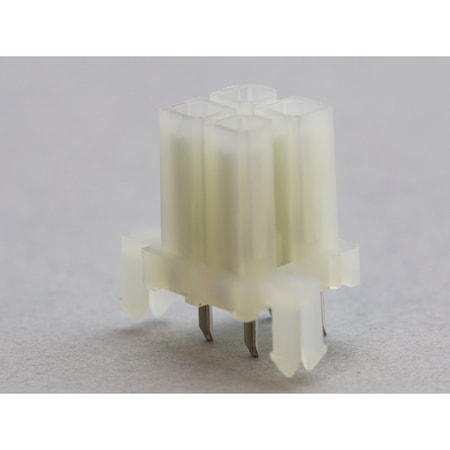

15-24-7040, Conn Power RCP 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Mini-Fit BMI Tray (50 Items)

15-24-7040, Conn Power RCP 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Mini-Fit BMI Tray (50 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.A-42385-04A1
Alternate Part No.538-15-24-7040
AngleStraight
ApplicationsGeneral Purpose, Indust.
BrandMolex
ColorNatural
Connector TypeReceptacle
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Post0.138" (3.50mm)
Contact MaterialBrass
Contact PlatingTin
Contact ShapeSquare
Contact TypeFemale Socket
Current Rating9 A
Current Rating (Amps)-
Family NameMini-Fit BMI
Fastening TypePush-Pull
FeaturesBoard Lock
Flammability RatingUL 94V-2
Hole Center to Center4.2 mm
Housing MaterialNylon
Ingress Protection-
Insulation ColorNatural
Insulation Height0.446" (11.33mm)
Insulation MaterialPolyamide (PA66), Nylon.
ManufacturerMolex
Manufacturer Part No.15-24-7040
Mated Stacking Heights-
MaterialNylon
Material Flammability R.UL94 V-2
Max. Temp.240?C
Max. Voltage600V AC/DC
MfrMolex
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Circuits4
Number of Contacts4
Number of Positions4
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
OrientationVertical
Package Quantity1
PackagingTray
Part # Aliases0015247040 A-42385-04A1
Part StatusActive
Pitch4.2 mm, 4.20 mm (0.165")
Pitch - Mating0.165" (4.20mm)
Plating MaterialTin
Primary TypeSoft Shell
Product CategoryHeaders & Wire Housings
Product TypeHeader Assemblies
Row Spacing5.5 mm
Row Spacing - Mating0.165" (4.20mm)
Series42385, 42385 Series
Special FeaturesLow-Halogen
StandardsCSA Certified; UL E29179
StyleBoard to Board or Cable
Terminal TypeThrough Hole
TerminationSolder
Termination StyleThrough Hole
TradenameMini-Fit BMI
TypeReceptacle Assembly, Ve.
Voltage Rating600V, 600 VAC/DC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com15-24-70400.7911530MOLEX / WALDOM0.79 @ 5
WaldomMOLEX 15-24-70400.8365143MOLEX0.83 @ 65
thumbzoomjensentools.com101521631.091143Molex1.09 @ 5
thumbzoomNEP Electronics15-24-70401.132465143Molex1.1324 @ 65
thumbzoomNewark07AH50051.2811826MOLEX1.28 @ 5
HotendaH14184691.3815Molex1.38 @ 5
us.rs-online.com701915851.6611481Molex Incorporated1.66 @ 5
thumbzoomswatee.com15-24-70401.881758Molex1.88 @ 5
RS Delivers821-55502.1121173Molex2.112 @ 5
thumbzoomRadwell15-24-70402.2515MOLEX2.25 @ 5
thumbzoomTMEMX-15-24-70402.95165MOLEX2.95 @ 5
thumbzoomZoroG00046301794.25655Molex94.25 @ 65
