Murata LQG18HN56NJ00D

B07CGNCSS4

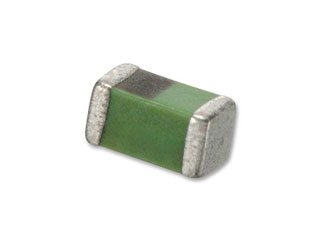

MURATA LQG18HN56NJ00D LQG Series 0603 56 nH ?5 % Tol. 300 mA SMT High Frequency Multilayer Inductor - 4000 item(s)

MURATA LQG18HN56NJ00D LQG Series 0603 56 nH ?5 % Tol. 300 mA SMT High Frequency Multilayer Inductor - 4000 item(s)zoom

Attributes

Key Value
Base Product NumberLQG18HN
Case - inch0603
Case - mm1608
CategoryInductors, Coils, Chokes
Current - Saturation (I.-
Current Rating (Amps)400 mA
DC Resistance (DCR)750mOhm Max
DescriptionFIXED IND 56NH 300MA 75.
Detailed Description56 nH Unshielded Multil.
Digi-Key Part Number490-6583-2-ND - Tape & .
Frequency - Self Resona.1.1GHz
Height - Seated (Max)0.037" (0.95mm)
Inductance56 nH, 56nH
Inductance Frequency - .100 MHz
ManufacturerMurata Electronics, MUR.
Manufacturer Product Nu.LQG18HN56NJ00D
Manufacturer seriesLQG
Manufacturer Standard L.16 Weeks
Material - CoreAir
MfrMurata Electronics
MountingSMD
Mounting TypeSurface Mount
Operating current400mA
Operating Temperature-40?C ~ 85?C
Operating temperature-40...85?C
PackageTape & Reel (TR)
Package / Case0603 (1608 Metric)
Product StatusActive
Q @ Freq12 @ 100MHz
Q factor12
Ratings-
Resistance0.75?
Resonant frequency1100MHz
SeriesLQG18
ShieldingUnshielded
Size / Dimension0.063" L x 0.031" W (1..
Supplier Device Package0603 (1608 Metric)
Tolerance?5%
TypeMultilayer
Type of inductorair coil

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
TMELQG18HN56NJ00D0.046440004000MURATA0.0464 @ 4000
HotendaH21358700.0786614000Murata Electronics0.07866 @ 4000
thumbzoomDigi-Key25942630.0878114000Murata Electronics0.08781 @ 4000
Future Electronics21023290.0937280004000Murata0.09372 @ 4000
AmazonSCB07CGNCSS4537.5414000Murata537.54 @ 4000
