Nichicon UUT1H100MCL1GS

B00MMYFD8Q

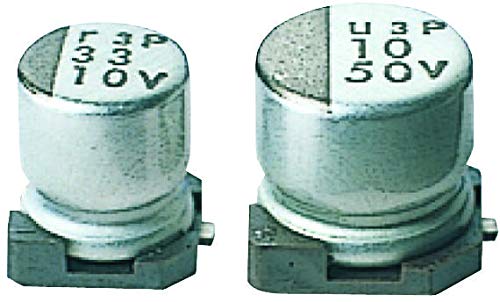

NICHICON UUT1H100MCL1GS CAPACITOR ALUM ELEC 10UF 50V 20%, SMD (1 piece)

NICHICON UUT1H100MCL1GS CAPACITOR ALUM ELEC 10UF 50V 20%, SMD (1 piece)zoom

Attributes

Key Value
Alternate Mfr Part Numb.7392785P
Alternate Part No.647-UUT1H100MCL1GS
ApplicationsGeneral Purpose
BrandNichicon
Capacitance10 uF, 10 ?F
Capacitance Range1 to 99 uF
Case Diameter6.3 mm
Case Length5.8 mm
CategoryCapacitors
ConfigurationRadial ; Can
Dissipation Factor DF0.12
Element MaterialAluminum Electrolytic
ESR (Equivalent Series .-
Height - Seated (Max)0.240" (6.10mm)
Lead Spacing-
Leakage Current3 uA
Lifetime @ Temp.2000 Hrs @ 105?C
Load Life2000 h
ManufacturerNichicon
Manufacturer Part No.UUT1H100MCL1GS
Maximum Operating Tempe.+ 105 C
MfrNichicon
Minimum Operating Tempe.- 55 C, -55 C
Mounting TypePCB Mount, Surface Mount
Operating Temperature-55?C ~ 105?C
PackageTape & Reel (TR)
Package / CaseRadial, Can - SMD
PackagingReel
PolarizationPolar
ProductAluminum Electrolytic C.
Product CategoryAluminium Electrolytic .
Product StatusNot For New Designs
Ratings-
Ripple Current30 mA
Ripple Current @ High F.45 mA @ 10 kHz
Ripple Current @ Low Fr.30 mA @ 120 Hz
SeriesUUT, UUT Series, UT
Size / Dimension0.248" Dia (6.30mm)
Surface Mount Land Size0.260" L x 0.260" W (6..
TerminationSMD
Termination StyleSMD/SMT
Tolerance?20%, 20 %
TypeAluminum Capacitors SMD.
Voltage - Rated50 V
Voltage Rating50 VDC
Voltage Rating DC50 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH2713450.11514112000Nichicon0.11514 @ 1
thumbzoomNewark55K16880.1652000606NICHICON0.165 @ 2000
us.rs-online.com704097200.2134510606Nichicon0.21345 @ 10
Future Electronics47637360.276117039Nichicon0.276 @ 1
RS Delivers739-27850.49081606Nichicon0.4908 @ 1
Digi-Key34390610.511606Nichicon0.51 @ 1
thumbzoomswatee.comUUT1H100MCL1GS0.95111383Nichicon0.95 @ 1
AmazonTPB07346J4J845.2916065NICHICON45.29 @ 1
AmazonSCB07346J4J847.981606Nichicon47.98 @ 1
