Nichicon UWP1H2R2MCL1GB

B07346QTWN

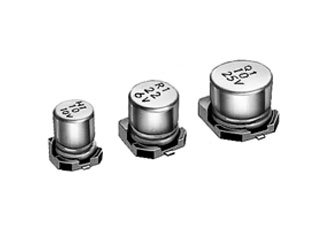

NICHICON UWP1H2R2MCL1GB WP Series 2.2 uF 50 V 85?C ?5 x 5.4mm SMT Chip Aluminum Electrolytic Cap - 1000 item(s)

NICHICON UWP1H2R2MCL1GB WP Series 2.2 uF 50 V 85?C ?5 x 5.4mm SMT Chip Aluminum Electrolytic Cap - 1000 item(s)zoom

Attributes

Key Value
Alternate Part No.647-UWP1H2R2MCL
ApplicationsGeneral Purpose
BrandNichicon
Capacitance2.2 uF, 2.2 ?F
Case Diameter5 mm
Case Length5.4 mm
CategoryCapacitors
ESR (Equivalent Series .-
Height - Seated (Max)0.217" (5.50mm)
Lead Spacing-
Leakage Current10 uA
Lifetime @ Temp.1000 Hrs @ 85?C
Load Life1000 h
ManufacturerNichicon
Manufacturer Part No.UWP1H2R2MCL1GB
Maximum Operating Tempe.+ 85 C
MfrNichicon
Minimum Operating Tempe.- 40 C
Mounting TypeSurface Mount
Operating Temperature-40?C ~ 85?C
PackageTape & Reel (TR)
Package / CaseRadial, Can - SMD
PackagingReel
PolarizationBi-Polar
ProductBi-Polar/Non-Polar Elec.
Product CategoryAluminium Electrolytic .
Product StatusActive
Ratings-
Ripple Current13 mA
Ripple Current @ High F.19.5 mA @ 10 kHz
Ripple Current @ Low Fr.13 mA @ 120 Hz
SeriesUWP, WP
Size / Dimension0.197" Dia (5.00mm)
Surface Mount Land Size0.209" L x 0.209" W (5..
Termination StyleSMD/SMT
Tolerance?20%, 20 %
Voltage - Rated50 V
Voltage Rating DC50 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH2652980.1373611000Nichicon0.13736 @ 1000
Allied ElectronicsE47778530.161610001000Nichicon0.1616 @ 1000
Future Electronics69873660.182410002000Nichicon0.1824 @ 1000
thumbzoomNewark55K28590.21310001000NICHICON0.213 @ 1000
Digi-Key39631600.2287411000Nichicon0.22874 @ 1000
thumbzoomRadwellUWP1H2R2MCL1GB0.720001000NICHICON0.7 @ 2000
thumbzoomNEP ElectronicsUWP1H2R2MCL1GB-CT1.051000Nichicon1.0 @ 1000
thumbzoomswatee.comUWP1H2R2MCL1GB1.1711455Nichicon1.17 @ 1000
