Panasonic Industrial Devices ECW-F6103HLB

B00KGTGCHU

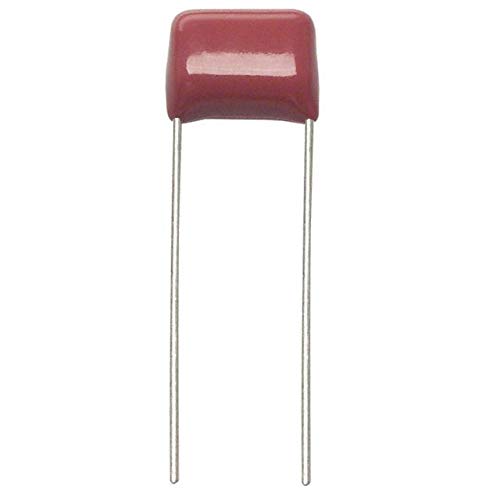

PANASONIC ECW-F6103HLB CAPACITOR FILM PP, 0.010UF, 3%, 630VDC, RADIAL

PANASONIC ECW-F6103HLB CAPACITOR FILM PP, 0.010UF, 3%, 630VDC, RADIALzoom

Attributes

Key Value
ApplicationsHigh Frequency, Switchi.
Base Product NumberECW-F6103
BrandPanasonic
Capacitance0.01 uF, 10000 pF, 10nF
Capacitance Range0.001 to 0.099 uF
CategoryCapacitors
ConfigurationRadial
Depth5.2mm
DescriptionCAP FILM 10000PF 3% 630.
Detailed Description10000 pF Film Capacitor.
DielectricPP
Dielectric MaterialPolypropylene (PP), Met.
Digi-Key Part NumberECW-F6103HLB-ND
Dimensions12.5 x 5.2 x 13mm
Element MaterialPolypropylene Metallized
Features-
Height13mm
Height - Seated (Max)0.571" (14.50mm)
Lead Diameter0.6mm
Lead Pitch7.5mm
Lead Spacing0.295" (7.50mm)
Lead TypeCrimped
Length12.5mm
ManufacturerPanasonic Electronic Co.
Manufacturer Product Nu.ECW-F6103HLB
Manufacturer Standard L.40 Weeks
Maximum Operating Tempe.+105?C, 105 C
MfrPanasonic Electronic Co.
Minimum Operating Tempe.-40 C, -40?C
Mounting TypeThrough Hole, PCB Mount
Operating Temperature-40?C ~ 105?C
PackageBulk
Package / CaseRadial
PackagingBulk
Product StatusActive
Ratings-
SeriesECWF-A Series, ECW-F(L).
Size / Dimension0.492" L x 0.205" W (12.
StockStock
Terminal TypeThrough Hole
TerminationThrough Hole, PC Pins
Tolerance?3%, Tolerance, 3% %
Voltage630V dc
Voltage Rating630 VDC
Voltage Rating - AC-
Voltage Rating - DC630V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEECWF6103HLB0.298200050PANASONIC0.298 @ 2000
Onlinecomponents.comECW-F6103HLB0.5121847PANASONIC0.512 @ 50
thumbzoomNewark52W59770.82330050PANASONIC0.823 @ 100
VericalECW-F6103HLB0.866100100Panasonic0.866 @ 100
thumbzoomDigi-Key21387030.99627630050Panasonic Electronic Components0.996276 @ 300
us.rs-online.com702603712.1040510050Panasonic Electronic Components2.10405 @ 100
