Parker 0.31PSR01.00

B074JCK8CT

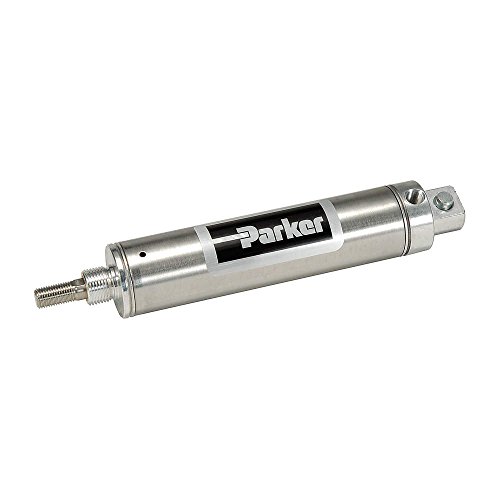

Parker 0.31PSR01.00 5/16" Bore Diameter with 1" Stroke Stainless Steel, Pivot Mounted Air Cylinder

Parker 0.31PSR01.00 5/16" Bore Diameter with 1" Stroke Stainless Steel, Pivot Mounted Air Cylinderzoom

Attributes

Key Value
Air Cylinder MountPivot
Air Cylinder Product Gr.Air Cylinder
Air Cylinder TypeRound Body
Body MaterialStainless steel
Bore Dia.5/16 in
Country of Origin (subj.United States
Cushion TypeNone
Cylinder ActionSingle Acting
Cylinder TypeRound Non-Repairable
Dimension A19/50 in
Dimension Cb0.25 in
Dimension Cc0.125 in
Dimension Cd0.125 in
Dimension E0.25 in
Dimension Kk#5-40 UNC
Dimension L0.34 in
Dimension N13/8"-24
End Cap MaterialAluminum
FeaturesNon-Switch Ready
FinishSilver
ItemAir Cylinder
Magnetic PistonNo
Max. Pressure250 psi
MountPivot
Nose Mount Thread3/8"-24
Overall Length3.56 in
Piston MaterialAluminum
Piston Rod MaterialStainless steel
Pivot Hole Dia.0.125 in
Port Size#10-32 UNF
Rod Dia.0.125 in
Rod Thread Length0.38 in
Rod Thread Size#5-40 UNC
Single Acting/Double Ac.Single Acting
Spring Retraction Force0.5 lb
Stroke1 in
Temp. Range-10 Degrees to 165 Deg.
Tube MaterialStainless steel
