Parker A6VC6-MG

B00I4IEG0U

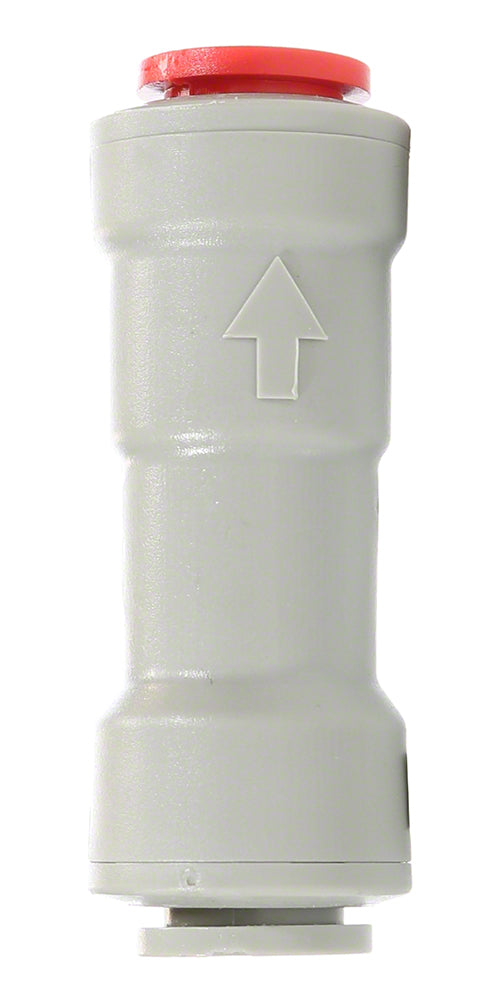

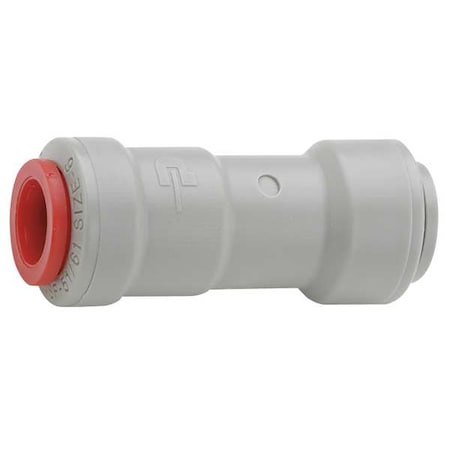

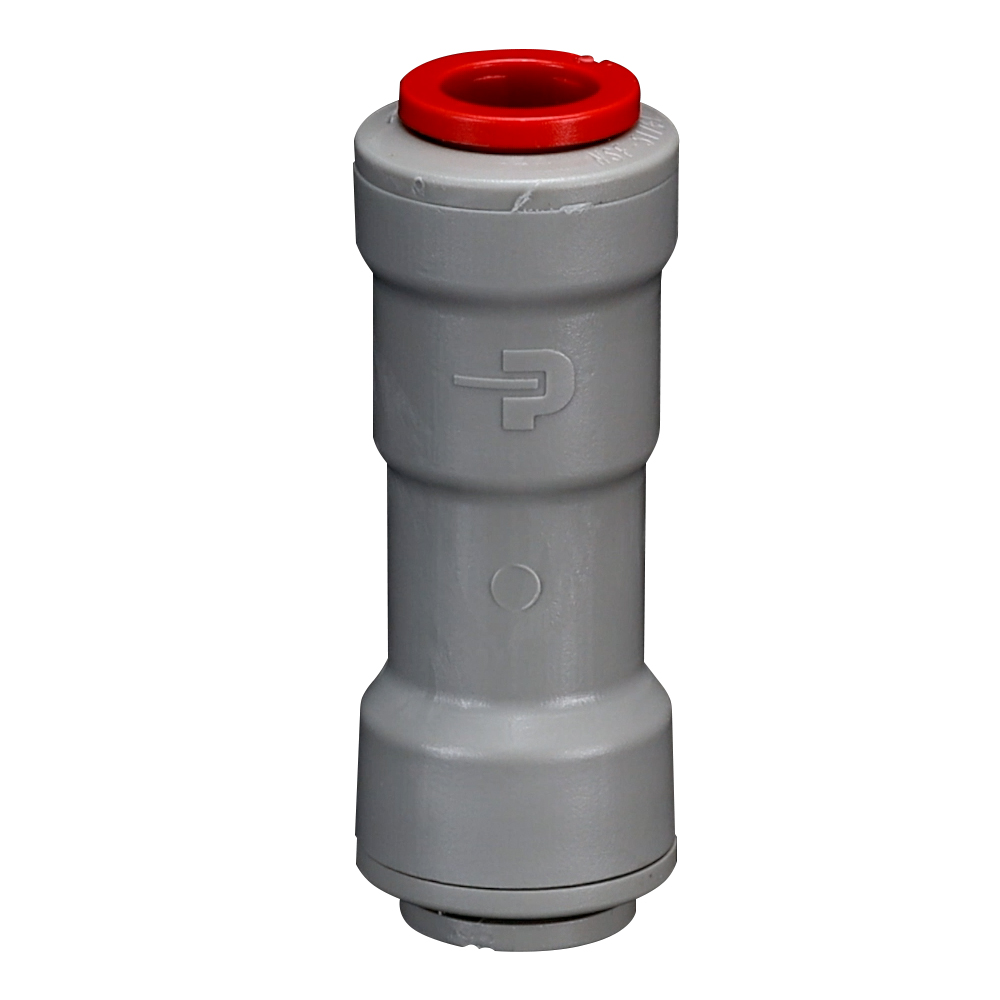

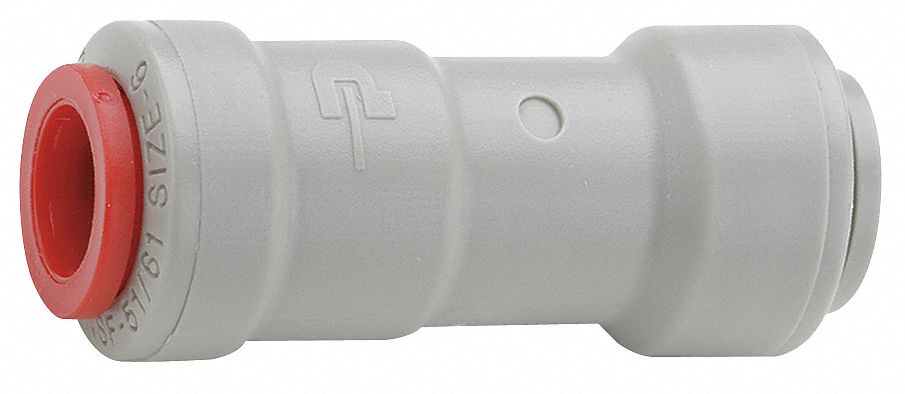

Parker A6VC6-MG Check Valve, Tube to Tube, Nylon, Push-to-Connect in-Line, 3/8"

Parker A6VC6-MG Check Valve, Tube to Tube, Nylon, Push-to-Connect in-Line, 3/8"zoom

Attributes

Key Value
Application - ValvesCorrosives
Body MaterialNylon
Body Material - ValvesAcetal Resin Copolymer
BrandParker
Catalog Page NumberP-230
ConfigurationPush-Connect x Push-Con.
Connection TypePush, Push x Push
Connection Type - Check.Push x Push
Country of OriginUSA
Country of Origin (subj.United States
Cracking Pressure0.33 psi
Cracking Pressure - Che.0.33 psi
Cross Reference #A6VC6-MG
Current Stock42
Flow DesignSingle
Full Flow - ValvesYes
Green Certification or .NSF(R) Certified (Susta.
International ShippingNo
ItemBall Check Valve
Item - Check ValvesCheck Valve
Item Number60940
Length2 5/32 in
Length (Straight Wirewa.2 5/32 in
ManufacturerParker Hannifin
Manufacturer Part #A6VC6-MG
MaterialAcetal
Material of ConstructionAcetal Resin Copolymer
Max. Pressure145 psi
Max. Steam Pressure - V.Not Rated
Max. Temp.150 Degrees F
Max. Temp. - Valves150 Degrees F
Max. Water Pressure150 psi
Max. Water Pressure - V.150 psi
Mechanism and Body Desi.Inline Ball
Min. Temp. - Valves34 Degrees F
Mounting OrientationHorizontal, Vertical
Mounting Orientation - .Horizontal, Vertical
MpnA6VC6-MG
Pipe or Tube Size3/8 in
Pipe or Tube Size - Che.3/8 in
Pipe Size3/8"
Poolweb Item #A6VC6-MG
Product CategoryCheck Valves
Prop 65WARNING: Cancer and Rep.
Seal MaterialEPDM
Seal Material - Check V.EPDM
Seat MaterialEPDM
Seat Material - Check V.EPDM
Shipping Weight0.04 lb
Size3/8", 3/8" x 3/8"
SKUZO-G1601327
StandardsFDA Compliant and RoHS .
Sub-CategoryAcetal Resin Copolymer
SubCategoryPlumbing
Weight0.031 lbs
Width13/16 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusplastic.com6094010.941In StockParker Hannifin0.03110.94 @ 1
Airline HydraulicsPARKER A6VC6-MG12.261In StockParker12.26 @ 1
thumbzoomZoroG160132715.491750Parker0.0315.49 @ 1
thumbzoomsustainablesupply.comC191096716.091In StockParker1.016.09 @ 1
grainger.caWWG5UMV317.02015071In StockPARKER0.0317.0201507 @ 1
thumbzoomRaptor SuppliesAE6QMQ20.79388351In StockPARKER20.7938835 @ 1
thumbzoomsimsupply.comZO-G160132722.08142Parker22.08 @ 1
thumbzoompoolweb.comA6VC6-MG29.64123Parker Hannifin0.0429.64 @ 1
thumbzoomNational Supply Network5058303835.941In StockParker35.94 @ 1
