Ruland BS16-8-4-A

B016APOWRK

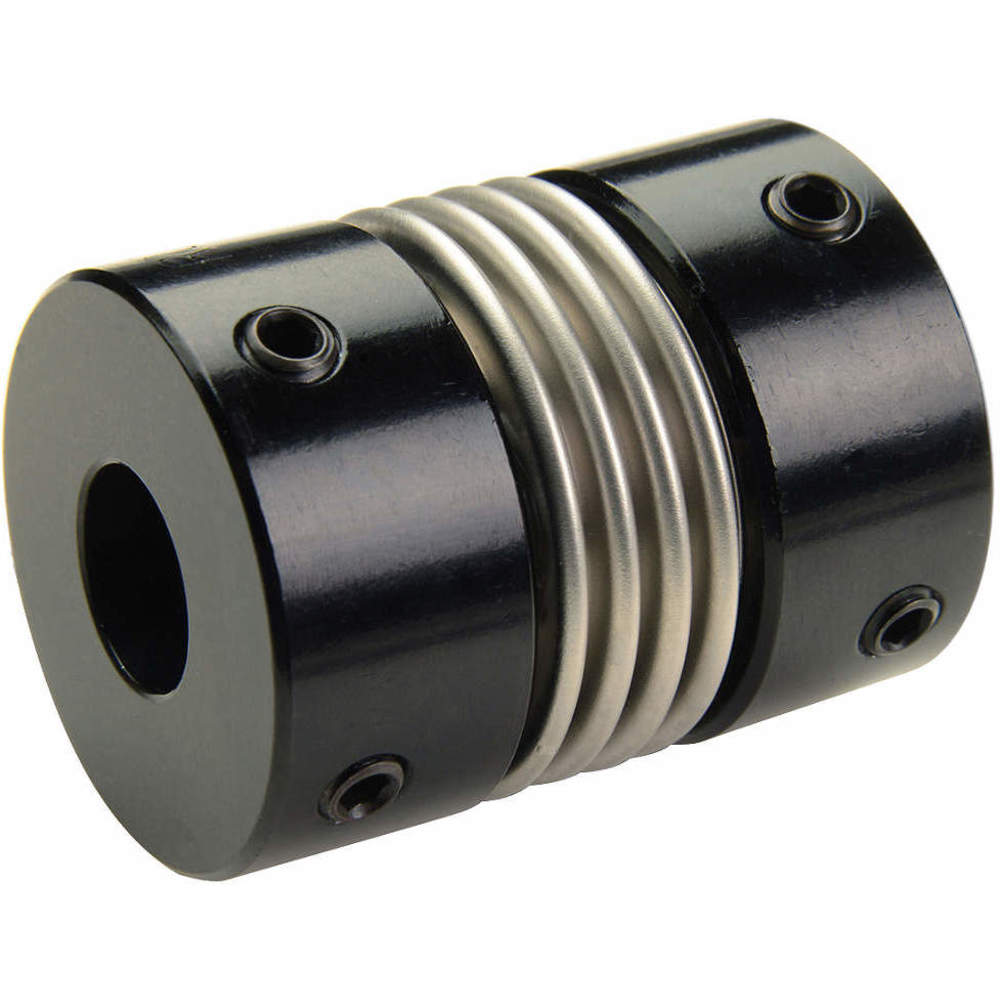

Ruland BS16-8-4-A 2024 or 7075 Aluminum Hubs Bellows Coupling, Set Screw Style, 0.500" x 0.250" Bores, 1.000" OD

Ruland BS16-8-4-A 2024 or 7075 Aluminum Hubs Bellows Coupling, Set Screw Style, 0.500" x 0.250" Bores, 1.000" ODzoom

Attributes

Key Value
Angular Misalignment1.5?
Axial Motion0.012 in
B1 Max Shaft Penetration0.626 in
B2 Max Shaft Penetration0.626 in
Balanced DesignYes
Bellows Attachment Meth.Epoxy
Bore (B1)0.5000 in
Bore Size0.5 x 0.25 in
Bore Tolerance+0.001 in / -0.000 in
Country of OriginUSA
Dynamic Torque Non-Reve.30 lb-in
Dynamic Torque Reversing15 lb-in
Finish SpecificationSulfuric Anodized MIL-A.
Forged Set ScrewM4
Full Bearing Support Re.Yes
Hex Wrench Size2.0 mm
Hub Width (LH)0.467 in
Length (L)1.313 in
Length Tolerance+/- 0.030 in
ManufacturerRuland Manufacturing
Material2024 Aluminum Hubs ; 32.
Material SpecificationHubs: 2024-T351 Aluminu.
Maximum Speed10,000 RPM
Note 1This product has been d.
Note 2Torque ratings are at m.
Note 3Performance ratings are.
Note 4Torque ratings for the .
Number of Screws4 ea
Outer Diameter1" (25.4mm)
Outer Diameter (OD)1.000 in
Overall Length1.313" (33.4mm)
Parallel Misalignment0.004 in
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Seating Torque2.2 Nm
SizeNO KWY
Small Bore (B2)0.2500 in
Static Torque60 lb-in
StyleSet Screw Style
Tariff Code8483.60.8000
Temperature-40?F to 200?F (-40?C t.
Torsional Stiffness244 lb-in/Deg
UNSPC31163018
UPC634529063194
UPC Code63452906319
Weight0.07
Weight (lbs)0.072500
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com7234326788.281In StockRuland Manufacturing88.28 @ 1
Grainger30VF18140.51In StockRULAND MANUFACTURING140.5 @ 1
motionindustries.com02336532153.951In StockRuland Manufacturing Co Inc153.95 @ 1
thumbzoomsustainablesupply.comC1650959155.441In StockRuland Manufacturing0.07155.44 @ 1
thumbzoomRulandBS16-8-4-A156.471In StockRuland0.0725156.47 @ 1
thumbzoomRaptor SuppliesAF9WFV258.61065751In StockRULAND MANUFACTURING258.6106575 @ 1
