Samtec TSW-107-08-G-D-RA

mpnTSW-107-08-G-D-RA
brandname: Samtec
manufacturername: Samtec

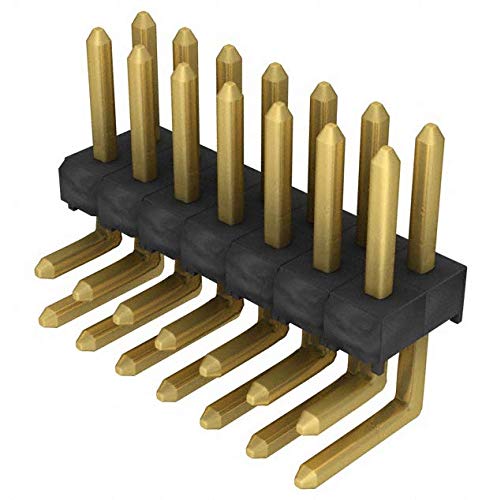

SAMTEC TSW-107-08-G-D-RA Header New Lot Quantity-10

SAMTEC TSW-107-08-G-D-RA Header New Lot Quantity-10

zoom

Brand: Samtec
PartNumber: TSW-107-08-G-D-RA
Model: TSW-107-08-G-D-RA
Manufacturer: SAMTEC
Label: SAMTEC

Attributes

Key	Value
Applications	-
Base Product Number	TSW-107
Category	Connectors, Interconnec.
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thicknes.	10.0?in (0.25?m)
Contact Finish Thicknes.	3.00?in (0.076?m)
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.090" (2.29mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	-
Description	CONN HEADER R/A 14POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	SAM1037-07-ND
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.219" (5.56mm)
Insulation Material	Polybutylene Terephthal.
Manufacturer	Samtec Inc.
Manufacturer Product Nu.	TSW-107-08-G-D-RA
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Samtec Inc.
Mounting Type	Through Hole, Right Ang.
Number of Positions	14
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-55?C ~ 125?C
Overall Contact Length	-
Package	Bulk
Pitch - Mating	0.100" (2.54mm)
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	TSW
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	TSW-107-08-G-D-RA	0.93	1	25		Samtec		0.9 @ 26
	Newark	12P1593	1.5	1	1565		SAMTEC		1.5 @ 25
	RS Delivers	180-3167	1.722	1	25		Samtec		1.722 @ 25
	Arrow	TSW-107-08-G-D-RA	1.79	1	60		Samtec		1.79 @ 25
	Samtec	TSW-107-08-G-D-RA	1.79	1	1168		Samtec		1.79 @ 25
	Digi-Key	1101717	2.0516	1	1621		Samtec Inc.		2.0516 @ 25
	Hotenda	H1340458	2.455	1	25		Samtec, Inc.		2.455 @ 25
