- mpnFN256-160-40
- brandname: Schaffner
- manufacturername: Schaffner

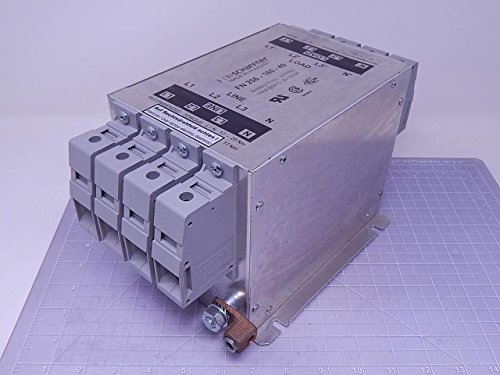

Schaffner FN 256-160-40 Filter 480VAC/50-60HZ T17317
- Brand: Schaffner
- PartNumber: FN256-160-40
- Manufacturer: Schaffner
- Label: Schaffner
Attributes
| Key | Value |
|---|
| Application | For entire systems, ins. |
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Base Product Number | FN256 |
| Brand | Schaffner |
| Category | Filters |
| Configuration | Single Stage |
| Current | 160 A |
| Current Rating | 160 A |
| Dimensions | 160 H x 140 W x 200 L mm |
| Filter Type | Three Phase (Wye), EMC . |
| Frequency - Operating | DC ~ 60Hz |
| Inductance | 0.46 mH, -, 460 ?H |
| IP Rating | IP20 |
| Leakage Current | 6.8 mA |
| Line to Ground Hipot Ra. | 2650 |
| Line to Line Hipot Rati. | 2100 VDC |
| Maximum Current Rating | 160A |
| Maximum Voltage Rating | 3 x 480 V ac |
| Mfr | Schaffner EMC Inc. |
| Mounting Type | Panel Mount, Chassis Mo. |
| Number of Phases | 3 |
| Number of Stages | Single Stage |
| Operating Frequency | 0 ? 60Hz |
| Operating Temperature | -25?C ~ 100?C |
| Operating Voltage | 480 to 277 V |
| Package | Tray |
| Phase | 3 Phase |
| Power Loss | 30.7W |
| Primary Type | 1-Stage, AC, General Pu. |
| Product Header | Compact General Purpose. |
| Product Status | Last Time Buy |
| Resistance | 680k?, 0.68 Megaohms |
| Schaffner Part Number | 296-401 |
| Series | FN 256 Series, FN 256, . |
| Standards | UL Recognized ; CSA Cer. |
| Termination Style | Terminal Block |
| Type | Filter |
| Voltage - Rated AC | - |
| Voltage - Rated AC (Pha. | 277 V |
| Voltage - Rated AC (Pha. | 480 V |
| Voltage - Rated DC | - |
| Voltage Range | 480 VAC |
| Voltage Rating | 480 V |
| Wire Size | 4/0 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Radwell | FN256-160-40 | 660.0 | 1 | In Stock | | SCHAFFNER | | 660.0 @ 1 |
| Sager Electronics | FN256-160-40 | 690.15 | 1 | In Stock | | Schaffner | | 690.15 @ 1 |
 | RS Delivers | 882-5964 | 799.74 | 1 | In Stock | | Schaffner | | 799.74 @ 1 |
| Digi-Key | 1997048 | 900.34 | 1 | In Stock | | Schaffner EMC Inc. | | 900.34 @ 1 |
| us.rs-online.com | 70027140 | 922.14 | 1 | In Stock | | Schaffner | | 922.14 @ 1 |
