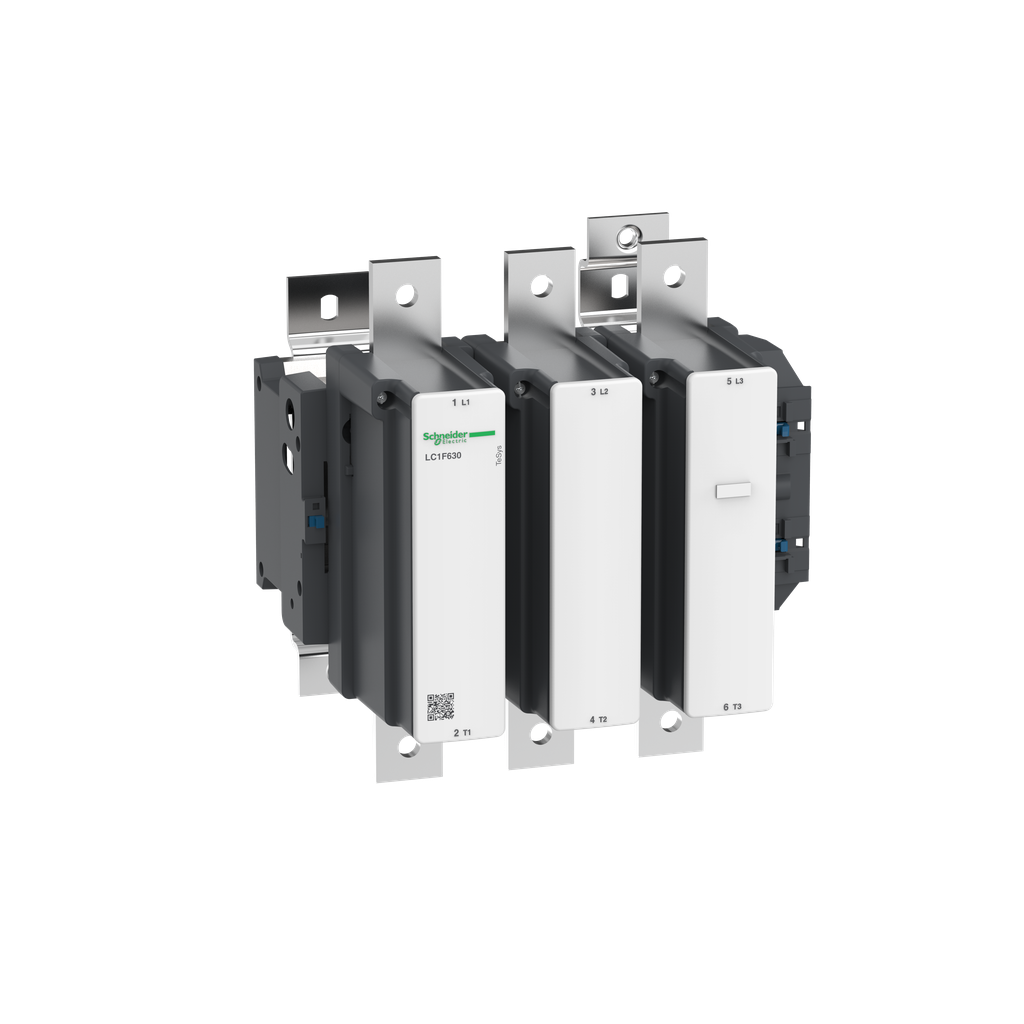

Schneider Electric LC1F630N7

B00CONH298

SCHNEIDER ELECTRIC Contactor 600-Vac 630-Amp Iec Plus Options LC1F630N7 Cable End Markers Letter E 1 Card = 200 Pcs

SCHNEIDER ELECTRIC Contactor 600-Vac 630-Amp Iec Plus Options LC1F630N7 Cable End Markers Letter E 1 Card = 200 Pcszoom

Attributes

Key Value
[Icw] Rated Short-Time .5050 A 40 ?C - 10 s || .
[Ith] Conventional Free.1000 A 40 ?C || 1250 A
[Uc] Control Circuit Vo.415 V AC 40...400 Hz
[Ui] Rated Insulation V.1000 V IEC 60947-4-1 ||.
[Uimp] Rated Impulse Wi.8 kV
Ambient Air Temperature.-5-55 ?C
Ambient Air Temperature.-60-80 ?C
Average Impedance0.12 mOhm - Ith 1000 A .
California Proposition .Lead and lead compounds.
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1505009EN
Compatibility CodeLC1F
Connections - Terminalscontrol circuit screw c.
Contactor Applicationresistive load || motor.
Control Circuit TypeAC 40...400 Hz
Control Circuit Voltage.operational 0.85...1.1 .
Depth255 mm
Device Short NameLC1F
Environmental DisclosureENVPEP1505009EN
Eu Rohs DirectiveCompliant
Heat Dissipation20-20 W
Height304 mm
Hold-In Power Consumpti.22-22 VA, 40...400 Hz 0.
Inrush Power In Va1650-1650 VA, 40...400 .
Ip Degree Of ProtectionIP20 front face with sh.
Maximum Operating Rate1200 cyc/h 55 ?C
Mechanical Durability5 Mcycles
Mercury FreeYes
Motor Power Kw335 kW 380...400 V AC 5.
Mounting Supportplate
Net Weight18.6 kg
Operating Altitude9842.52 ft (3000 m) wit.
Operating Time40...80 ms closing || 1.
Overvoltage CategoryIII
Permissible Ambient Air.-40-70 ?C
Pole Contact Composition3 NO
Poles Description3P
Power Dissipation Per P.120 W AC-1 || 48 W AC-3
Product CertificationsRINA || CCC || RMRoS ||.
Product Or Component Ty.contactor
Protective TreatmentTH
RangeTeSys
Range Of ProductTeSys F
Rated Breaking Capacity5040 A IEC 60947-4-1
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
StandardsEN 60947-1 || JIS C8201.
Sustainable Offer StatusGreen Premium product
Tightening Torquecontrol circuit 1.2 N.m.
Utilisation CategoryAC-3 || AC-4 || AC-1
Warranty18 months
WeeeThe product must be dis.
Width309 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwellLC1F630N76950.01In StockSCHNEIDER ELECTRIC SQUARE D6950.0 @ 1
thumbzoommayerelectric.comSQDLC1F630N77573.171In StockSCHNEIDER ELECTRIC40.927573.17 @ 1
thumbzoommostelectric.comLC1F630N77688.521In StockSQUARE D/TELEMECANIQUE7688.52 @ 1
