Schneider Electric LR2K0302

B00CONBRHG

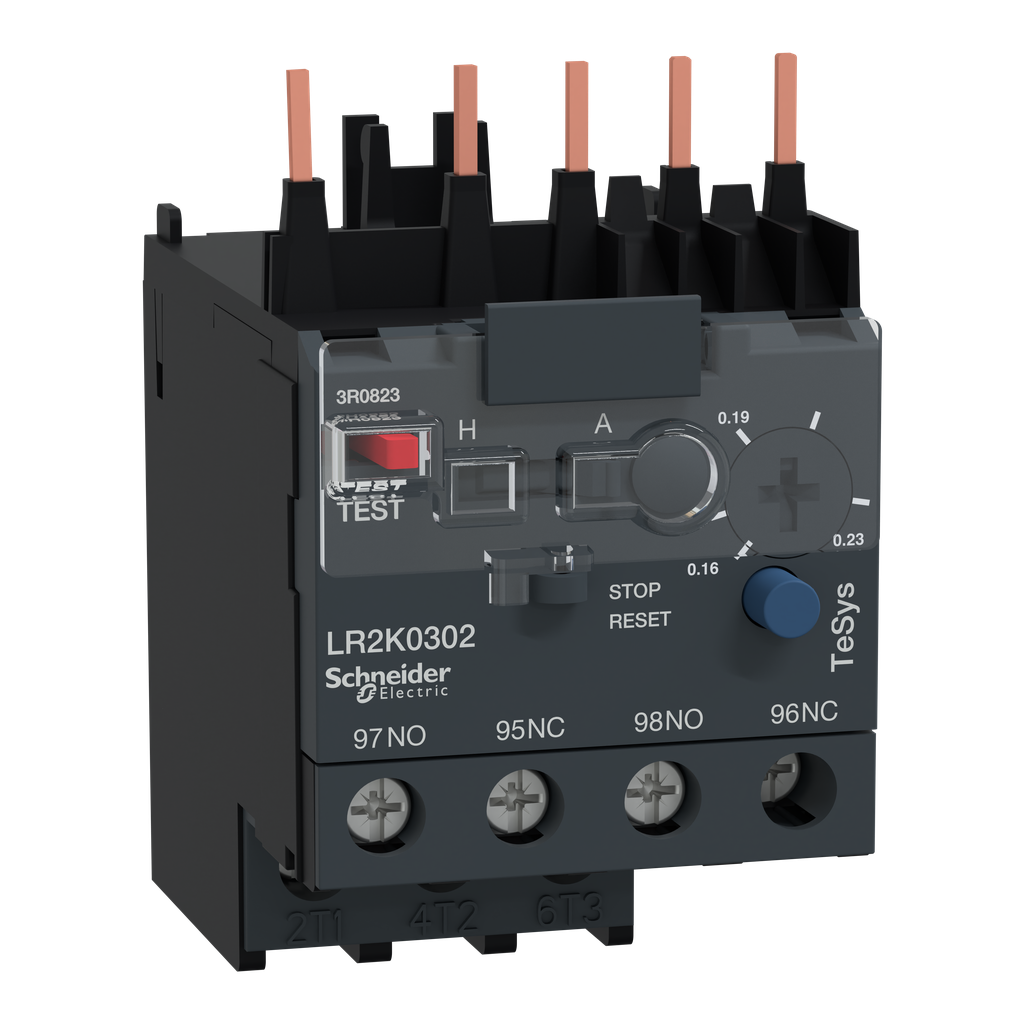

SCHNEIDER ELECTRIC Bimetallic O/Load Relay 575-Vac .23-Amp Iec LR2K0302 Sw Not Fusible Hd 600V 400A 3P Stainless

SCHNEIDER ELECTRIC Bimetallic O/Load Relay 575-Vac .23-Amp Iec LR2K0302 Sw Not Fusible Hd 600V 400A 3P Stainlesszoom

Attributes

Key Value
[Ith] Conventional Free.6 A signalling circuit
[Ui] Rated Insulation V.power circuit 690 V BS .
[Uimp] Rated Impulse Wi.6 kV
Ambient Air Temperature.-20-55 ?C without derat.
Ambient Air Temperature.-40-70 ?C
Amperage Rating0.16-0.23A
ApplicationMotor protection;LC1K;L.
Associated Fuse Rating6 A gG signalling circu.
Auxiliary Contact Compo.1 NO + 1 NC
Body Depth - Relay2.56 in
Body Height - Relay2.28 in
Body Width - Relay1.77 in
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLR2K0302
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211018
Class Rating10
ComponentIEC Overload Relay
Connection TypeScrew Clamp
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration1 NO + 1 NC
Contact Operation1NO/1NC
Control TypeRed push-button trip te.
Control Voltage690
Country of OriginCzech Republic, CZ - Cz.
Current Range0.16 to 0.23A
Depth2.28", 65 mm
Device Short NameLR2K
ECCNEAR99
Environmental DisclosureENVPEP2211018
Eu Rohs DirectiveCompliant
Family NameTeSys Family
FeaturesSingle Phase Sensitivit.
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94 .
For Use WithTeSys K AC or DC IEC Co.
Height2.56", 58 mm
InsulationPOWER CIRCUIT 690 V BS .
Ip Degree Of ProtectionIP2X conforming to IEC .
ItemOverload Relay
Item - RelayIEC Style Overload Relay
Item Typedifferential thermal ov.
Local Signallingtrip indicator Yellow)
Made in USANo
ManufacturerSchneider Electric
Mechanical Robustnessshocks NO contact10 Gn .
Mercury FreeYes
MountingRail Plate
Mounting StyleDIN Rail, Plate
Mounting Supportunder contactor || plat.
Net Weight0.145 kg
Network TypeAC || DC
Number of Poles3
Operating Altitude6561.68 ft (2000 m) wit.
Operating Temperature-20-55 A Degrees C WITH.
Overall Height - Relay2.28 in
Overload Relay Current .0.16 to 0.23 A, 0.16 to.
Phase Failure Sensitivi.yes IEC 60947-4-1
Power Dissipation Per P.2 W
Product CertificationsUL || CSA || UKCA
Product CompatibilityLC1K || LP4K || LP1K ||.
Product NameTeSys LRK
Product Or Component Ty.differential thermal ov.
Protective TreatmentTC IEC 60068 || TC DIN .
RangeTeSys
Reach RegulationReference contains Subs.
Relay Applicationmotor protection
Reset Type - RelayAuto, Manual
Rohs Exemption Informat.Yes
Sensing MethodBIMETALLIC
SeriesTeSys LRK, TeSys LR2K S.
Size2.56
Special FeaturesRed push-button trip te.
Standard850 A Degrees C IEC 606.
StandardsUL File/CCN E164353/NKC.
Starter Amperage0.23 Amp
Starter ClassClass 10A
Starter ModelLR2K
Starter TypeIEC
Sub BrandTeSys LRK;LR2K
Sub ComponentTeSys K Non-Differentia.
Supply Voltage690 VAC
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Clamp
Thermal Overload Classclass 10A IEC 60947-4-1
Thermal Protection Adju.0.16-0.23 A
Tightening Torque1.3 N.m screw clamp ter.
Trip Class10
Trip Class - Overload10
Trip TypeCLASS 10A CONFORMING TO.
UNSPSC39122330
UPC785901883081
UPC Code785901883081
Use With - Contactors a.Mfr. Series LC1K, LC7K,.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width1.77", 45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers372-897553.07615Schneider Electric53.076 @ 1
grainger.caTLQLR2K030253.107225021In StockSCHNEIDER ELECTRIC0.3553.10722502 @ 1
thumbzoomTMELR2K030257.011SCHNEIDER ELECTRIC57.0 @ 1
standardelectricsupply.com225657959.081In StockSchneider Electric59.08 @ 1
thumbzoomZoroG147525761.551In StockSchneider Electric0.3561.55 @ 1
thumbzoommayerelectric.comSQDLR2K030265.051In StockSQUARE D0.31965.05 @ 1
rspsupply.comSCHNEIDER LR2K030272.61In StockSchneider Electric72.6 @ 1
simplybreakers.comLR2K030275.991In StockSchneider Electric75.99 @ 1
Graybar9607399177.08961In StockSquare D (Schneider Electric)77.0896 @ 1
thumbzoomsustainablesupply.comC120871077.331In StockSchneider Electric0.3577.33 @ 1
Grainger6B18379.75130SCHNEIDER ELECTRIC79.75 @ 1
thumbzoomcrescentelectric.com51094180.271In StockSchneider Electric80.27 @ 1
Newark16B72586.41In StockSCHNEIDER ELECTRIC86.4 @ 1
us.rs-online.com7037879687.5311Schneider Electric87.53 @ 1
thumbzoomRaptor SuppliesAG7EHF122.24926351In StockSCHNEIDER ELECTRIC122.2492635 @ 1
