Square D LR2K0308

B005T8JECS

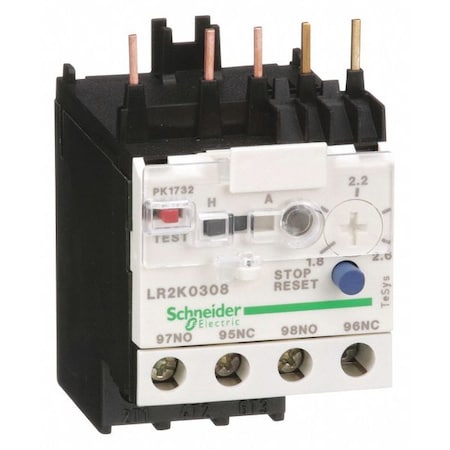

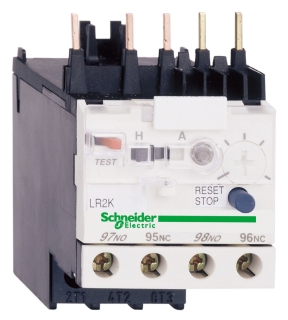

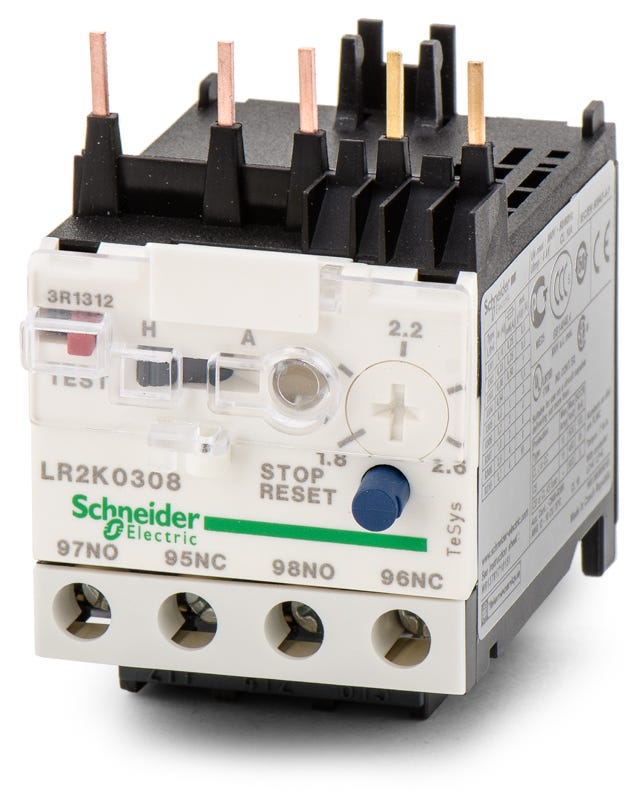

Square D. Company LR2K0308 1.8-2.6A IEC Overload Relay

Square D. Company LR2K0308 1.8-2.6A IEC Overload Relayzoom

Attributes

Key Value
[Ith] Conventional Free.6 A signalling circuit
[Ui] Rated Insulation V.power circuit 690 V BS .
[Uimp] Rated Impulse Wi.6 kV
Ambient Air Temperature.-20-55 ?C without derat.
Ambient Air Temperature.-40-70 ?C
Ambient Temperature Ran.-4-131 ?F
Amperage Rating1.8-2.6A
ApplicationMotor protection;LP4K;L.
ApprovalsCSA, UL
Associated Fuse Rating6 A gG for signalling c.
Auxiliary Contact Compo.1 NO + 1 NC
Body Depth - Relay2.56 in
Body Height - Relay2.28 in
Body Width - Relay1.77 in
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLR2K0308
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211018
Class Rating10
ComponentIEC Overload Relay
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration1 NO + 1 NC
Contact Rating1.8 to 2.6 A
Control TypeRed push-button trip te.
Control Voltage690
Country of OriginCzech Republic, CZ - Cz.
Current Range1.80 to 2.60A
Current Rating1.8 to 2.6 A
Current Setting Range1.8-2.6 A
Current Stock97
Current, Ratings2.6
Depth2.559 in, 2.28", 65 mm
Device Short NameLR2K
Dimensions1.772 x 2.283 x 2.559 ;.
ECCNEAR99
Environmental DisclosureENVPEP2211018
Eu Rohs DirectiveCompliant with Exemptio.
Family NameTeSys Family
Family SeriesSquare D Overload Relays
FeaturesSingle Phase Sensitivit.
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94 .
For Use WithTeSys K AC or DC IEC Co.
FunctionOverload
Gross Weight0.355 lbs
Gtin785901883067
Height2.56", 58 mm
InsulationPOWER CIRCUIT 690 V BS .
International ShippingNo
Ip Degree Of ProtectionIP2X conforming to IEC .
ItemOverload Relay
Item - RelayIEC Style Overload Relay
Item NumberLR2K0308
Item Typedifferential thermal ov.
Lead TimeExpected to ship in 1-2.
Length1.772 in
Local Signallingtrip indicator Yellow)
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberLR2K0308
Maximum Operating Tempe.60 C
Mechanical Robustnessshocks NO contact10 Gn .
Mercury FreeYes
Minimum Operating Tempe.-20?C
MountingRail Plate
Mounting StyleDIN Rail, Plate
Mounting Supportunder contactor || plat.
MpnLR2K0308
Net Weight0.3 lbs, 0.145 kg
Network TypeDC || AC
Number of Circuits1
Number of Poles3
Operating Altitude6561.68 ft (2000 m) wit.
Operating Temperature-20C TO 55C
Output Contacts1NO, 1NC
Overall Height - Relay2.28 in
Overload Relay Current .1.80 to 2.60 A, 1.80 to.
Phase Failure Sensitivi.yes IEC 60947-4-1
Power Dissipation Per P.2 W
Primary TypeContactor
Product CertificationsUL || CSA || UKCA
Product CompatibilityLP4K || LC1K || LC7K ||.
Product NameTeSys LRK
Product Or Component Ty.differential thermal ov.
Protective TreatmentTC IEC 60068 || TC DIN .
RangeTeSys
Reach RegulationReference contains Subs.
Relay Applicationmotor protection
Relay TypeElectromechanical
Reset TypeMANUAL OR AUTO, Automat.
Reset Type - RelayAuto, Manual
Rohs Exemption Informat.Yes
Sensing MethodBIMETALLIC
SeriesTeSys LRK, LR, TeSys LR.
Size2.56, 65 L x 58 H x 45 .
SKUZO-G3269935
Special FeaturesRed push-button trip te.
StandardUL LISTED - CSA CERTIFI.
StandardsUL File/CCN E164353/NKC.
Starter Amperage2.6 Amp
Starter ClassClass 10A
Starter ModelLR2K
Starter TypeIEC
Sub BrandTeSys LRK;LR2K
Sub ComponentTeSys K Non-Differentia.
SubCategoryElectrical
Supply Voltage690 VAC
Sustainable Offer StatusGreen Premium product
Temperature Operating R.-20 to 60?C
Terminal TypeScrew Clamp
Thermal Overload Classclass 10A IEC 60947-4-1
Thermal Protection Adju.1.8-2.6 A
Tightening Torque1.3 N.m screw clamp ter.
Trip Class10, Class 10A
Trip Class - Overload10
Trip TypeTHERMAL - AMBIENT COMPE.
TypeOverload
UNSPSC39122330
Upc785901883067
UPC785901883067
UPC Code785901883067
Use With - Contactors a.Mfr. Series LC1K, LC7K,.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width0 in, 1.77", 45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELR2K030837.03124SCHNEIDER ELECTRIC37.03 @ 10
RS Delivers758-95149.872158Schneider Electric49.872 @ 10
grainger.caTLQLR2K030854.1814179110SCHNEIDER ELECTRIC0.3554.1814179 @ 10
thumbzoomkempstoncontrols.co.ukLR2-K030855.6552035110Schneider55.6552035 @ 10
standardelectricsupply.com3688256.721302Schneider Electric56.72 @ 10
thumbzoomgordonelectricsupply.comLR2K030861.0911010SQUARE D61.09 @ 10
thumbzoommayerelectric.comSQDLR2K030865.05110SQUARE D0.31965.05 @ 10
thumbzoomsustainablesupply.comC120871666.84110Schneider Electric0.3566.84 @ 10
thumbzoomZoroG326993567.491126Schneider Electric0.3567.49 @ 10
AmazonSCB01M1942I368.26110Schneider68.26 @ 10
AmazonTPB00CONBN0M68.621102SCHNEIDER ELECTRIC68.62 @ 10
thumbzoomsuperbreakers.comLR2K030868.88138Schneider Electric68.88 @ 10
thumbzoomGalcoLR2K0308-SQD69.13110Square D0.35569.13 @ 10
thumbzoommostelectric.comLR2K030870.07110SQUARE D/TELEMECANIQUE70.07 @ 10
thumbzoomblackhawksupply.comLR2K030870.75110Square D70.75 @ 10
rspsupply.comSCHNEIDER LR2K030872.6110Schneider Electric72.6 @ 10
Onlinecomponents.comLR2K030873.0110Schneider Electric73.0 @ 10
Graybar9501181674.9728110Square D (Schneider Electric)74.9728 @ 10
hvacdiscountstore.comSCH--LR2K030877.42110SCHNEIDER ELECTRIC (SQUARE D)77.42 @ 10
thumbzoomgsistore.comLR2K030877.53110Schneider Electric77.53 @ 10
thumbzoomsimsupply.comZO-G326993579.98197Schneider Electric79.98 @ 10
thumbzoomcrescentelectric.com16017580.27110Schneider Electric80.27 @ 10
us.rs-online.com7000726082.63126Schneider Electric82.63 @ 10
thumbzoomNewark67AH277883.71110SCHNEIDER ELECTRIC83.71 @ 10
thumbzoomVoomi SupplyLR2K030888.7110Schneider Electric88.7 @ 10
thumbzoommidwestapplianceparts.comLR2K0308-SQ-P90.67110Squared90.67 @ 10
thumbzoomptacsolutions.comLR2K030893.29110Schneider Electric (Square D)93.29 @ 10
thumbzoomNational Supply Network6952699494.409110Schneider Electric94.409 @ 10
thumbzoomRaptor SuppliesAG7EHM131.914341110SCHNEIDER ELECTRIC131.914341 @ 10
simplybreakers.comLR2K0308179.99110Schneider Electric179.99 @ 10
industrialrefrigerationparts.comLR2K0308512.22110Schneider Electric512.22 @ 10
