Square D LR2K0310

B005T8K3RS

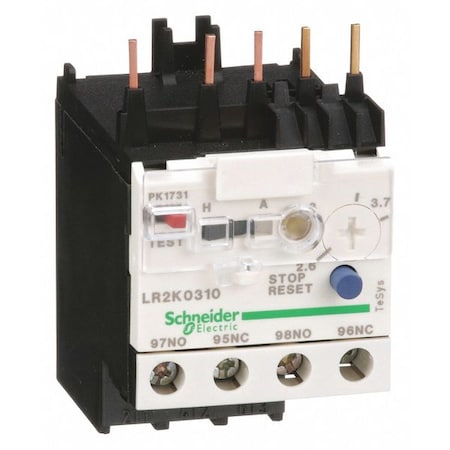

Square D. Company LR2K0310 2.6-3.7A Overload Relay

Square D. Company LR2K0310 2.6-3.7A Overload Relayzoom

Attributes

Key Value
Ambient Temperature Ran.-4-131 ?F
ApplicationMotor protection;LC7K;L.
ApprovalsCSA, UL
Body Depth - Relay2.56 in
Body Height - Relay2.28 in
Body Width - Relay1.77 in
BrandSchneider Electric
Catalog NumberLR2K0310
Class Rating10
ComponentIEC Overload Relay
Contact Configuration1 NO + 1 NC
Contact Rating2.6 to 3.7 A
Control Voltage690
Country of OriginCzech Republic, CZ - Cz.
Current Range2.60 to 3.70A
Current Rating2.6 to 3.7 A
Current Setting Range2.6-3.7 A
Current Stock97
Current, Ratings3.7
Depth2.559 in, 2.28"
Dimensions1.772 x 2.283 x 2.559 ;.
ECCNEAR99
Family NameTeSys Family
Family SeriesSquare D Overload Relays
FeaturesSingle Phase Sensitivit.
For Use WithTeSys K AC or DC IEC Co.
FunctionOverload
Gross Weight0.34 lbs
Height2.56"
InsulationPOWER CIRCUIT 690 V BS .
International ShippingNo
Ip Degree Of ProtectionIP2X conforming to IEC .
ItemOverload Relay
Item - RelayIEC Style Overload Relay
Item NumberLR2K0310
Item TypeDifferential thermal ov.
Lead TimeExpected to ship in 1-2.
Length1.772 in
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number422264
Maximum Operating Tempe.60 C
Mechanical Robustnessshocks NO contact10 Gn .
Minimum Operating Tempe.-20?C
MountingRail Plate
Mounting StyleDIN Rail, Plate
MpnLR2K0310
Net Weight0.32 lbs
Number of Circuits1
Number of Poles3
Operating Temperature-20C TO 55C
Output Contacts1NO, 1NC
Overall Height - Relay2.28 in
Overload Relay Current .2.6 to 3.7 A, 2.6 to 3..
Phase Failure Sensitivi.yes IEC 60947-4-1
Poles3
Primary TypeContactor
Relay TypeElectromechanical
Reset TypeManual or Auto, Automat.
Reset Type - RelayAuto, Manual
Sensing MethodBIMETALLIC
SeriesTeSys LRK, TeSys LR2K S.
Size2.56, 65 L x 58 H x 45 .
SKUZO-G1785305
Special FeaturesRed push-button trip te.
StandardUL LISTED - CSA CERTIFI.
StandardsUL File/CCN E164353/NKC.
Starter Amperage3.7 Amp
Starter ClassClass 10A
Starter ModelLR2K
Starter TypeIEC
Sub BrandTeSys LRK;LR2K
Sub ComponentTeSys K Non-Differentia.
SubCategoryElectrical
Supply Voltage690 VAC
Temperature Operating R.-20 to 60?C
Terminal TypeScrew Clamp
Trip Class10
Trip Class - Overload10
Trip TypeTHERMAL - AMBIENT COMPE.
TypeOverload
UNSPSC39122330
UPC785901883050
UPC Code785901883050
Use With - Contactors a.Mfr. Series LC1K, LC7K,.
Warranty DescriptionContractual Warranty:18.
Width0 in, 1.77"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialautomationparts.comREL-0044-E24.061In StockSCHNEIDER ELECTRIC24.06 @ 1
thumbzoomebay.com_expertplcsLR2K031030.281In StockSchneider30.28 @ 1
thumbzoomebay.com_8-millionLR2K031035.251In StockSchneider35.25 @ 1
us.rs-online.com7000726138.151641Schneider Electric38.15 @ 1
thumbzoomebay.com_kelly-lan1581LR2K031040.81In StockSchneider40.8 @ 1
AmazonTPB001ZRQ74K41.031In Stock5Schneider Electric41.03 @ 1
thumbzoomTMELR2K031041.62118SCHNEIDER ELECTRIC41.62 @ 1
thumbzoomebay.com_rayray1848LR2K031045.01In StockSchneider45.0 @ 1
RS Delivers758-96752.488143Schneider Electric52.488 @ 1
thumbzoomebay.com_mroglobalsolutionsLR2K031053.01In StockSchneider53.0 @ 1
thumbzoomebay.com_plccenterLR2K031053.921In StockSchneider53.92 @ 1
grainger.caTLQLR2K031054.18141791In StockSCHNEIDER ELECTRIC0.3554.1814179 @ 1
thumbzoomkempstoncontrols.co.ukLR2-K031055.655203516Schneider55.6552035 @ 1
thumbzoomebay.com_supramachinetoolLR2K031059.11In StockSchneider59.1 @ 1
thumbzoomComponent Electronics299-1416461.5411SCHNEIDER61.54 @ 1
thumbzoomsustainablesupply.comC120871769.231In StockSchneider Electric0.3569.23 @ 1
thumbzoomGalcoLR2K0310-SQD69.6414Square D0.3469.64 @ 1
thumbzoommostelectric.comLR2K031070.071In StockSQUARE D/TELEMECANIQUE70.07 @ 1
hvacdiscountstore.comSCH--LR2K031070.1916SCHNEIDER ELECTRIC (SQUARE D)70.19 @ 1
thumbzoomblackhawksupply.comLR2K031070.751In StockSquare D70.75 @ 1
thumbzoomZoroG178530570.99185Schneider Electric0.3570.99 @ 1
rspsupply.comSCHNEIDER LR2K031072.61In StockSchneider Electric72.6 @ 1
Graybar9502909774.97281In StockSquare D (Schneider Electric)74.9728 @ 1
thumbzoomebay.com_klr-storeLR2K031078.11In StockSCHNEIDER ELECTRIC78.1 @ 1
crescentelectric.com8364480.2711Schneider Electric80.27 @ 1
thumbzoomVoomi SupplyLR2K031082.131In StockSCHNEIDER ELECTRIC82.13 @ 1
thumbzoomebay.com_lae1988LR2K031085.01In StockSchneider85.0 @ 1
thumbzoommidwestapplianceparts.comLR2K0310-SQ-P90.671In StockSquared90.67 @ 1
thumbzoomNewark67AH277992.9213SCHNEIDER ELECTRIC92.92 @ 1
thumbzoomebay.com_hvacdiscountstoreLR2K031092.931In StockSchneider92.93 @ 1
ptacsolutions.comLR2K031093.291In StockSchneider Electric (Square D)93.29 @ 1
thumbzoomsimsupply.comZO-G178530593.43197Schneider Electric93.43 @ 1
thumbzoomNational Supply Network3730229699.141In StockSchneider Electric99.14 @ 1
thumbzoomebay.com_wechselrichter-online-deLR2K0310115.921In StockSchneider115.92 @ 1
thumbzoomRaptor SuppliesAG7EHN133.3892431In StockSCHNEIDER ELECTRIC133.389243 @ 1
