Square D LR2K0312

B005T8K4JA

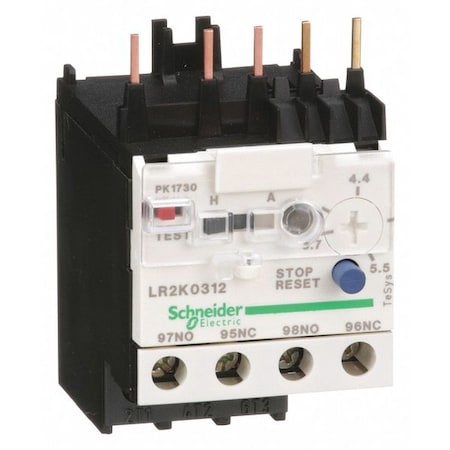

Square D. Company LR2K0312 3.8/5.5A Overload Relay

Square D. Company LR2K0312 3.8/5.5A Overload Relayzoom

Attributes

Key Value
[Ui] Rated Insulation V.power circuit 690 V BS .
[Uimp] Rated Impulse Wi.6 kV
Ambient Temperature Ran.-4-131 ?F
Amperage Rating3.8-5.5A
ApplicationMotor protection;LC7K;L.
ApprovalsCSA, UL
Body Depth - Relay2.56 in
Body Height - Relay2.28 in
Body Width - Relay1.77 in
BrandSchneider Electric
Catalog NumberLR2K0312
Class Rating10
ComponentIEC Overload Relay
Contact Configuration1 NO + 1 NC
Contact Rating3.7 to 5.5 A
Control Voltage690
Country of OriginCzech Republic, CZ - Cz.
Current Range3.80 to 5.50A
Current Rating3.8 to 5.5 A
Current Setting Range3.7-5.5 A
Current Stock97
Current, Ratings5.5
Depth2.559 in, 2.28"
Device Short NameLR2K
Dimensions1.772 x 2.283 x 2.559 ;.
ECCNEAR99
Family NameTeSys Family
Family SeriesSquare D Overload Relays
FeaturesSingle Phase Sensitivit.
For Use WithTeSys K AC or DC IEC Co.
FunctionOverload
Gross Weight0 lbs
Height2.56"
InsulationPOWER CIRCUIT 690 V BS .
International ShippingNo
ItemOverload Relay
Item - RelayIEC Style Overload Relay
Item NumberLR2K0312
Item TypeDifferential thermal ov.
Lead TimeExpected to ship in 1-2.
Length1.772 in
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberLR2K0312
Maximum Operating Tempe.60 C
Minimum Operating Tempe.-20?C
MountingRail Plate
Mounting StyleDIN Rail, Plate
MpnLR2K0312
Net Weight0 lbs
Number of Circuits1
Number of Poles3
Operating Temperature-20C TO 55C
Output Contacts1NO, 1NC
Overall Height - Relay2.28 in
Overload Relay Current .3.8 to 5.5A
Primary TypeContactor
Relay TypeElectromechanical
Reset TypeMANUAL OR AUTO, Automat.
Reset Type - RelayAuto, Manual
Sensing MethodBIMETALLIC
SeriesTeSys LRK, TeSys LR2K S.
Size2.56, 65 L x 58 H x 45 .
SKUZO-G2537376
Special FeaturesRed push-button trip te.
StandardUL LISTED - CSA CERTIFI.
StandardsUL File/CCN E164353 / N.
Starter Amperage5.5 Amp
Starter ClassClass 10A
Starter ModelLR2K
Starter TypeIEC
Sub BrandTeSys LRK;LR2K
Sub ComponentTeSys K Non-Differentia.
SubCategoryElectrical
Supply Voltage690 VAC
Temperature Operating R.-20 to 60?C
Terminal TypeScrew Clamp
Trip Class10, Class 10A
Trip Class - Overload10
Trip TypeTHERMAL - AMBIENT COMPE.
TypeOverload
UNSPSC39122330
UPC785901883036
UPC Code785901883036
Use With - Contactors a.LC7K, LP1K, LP4K Contac.
Warranty DescriptionContractual Warranty:18.
Width0 in, 1.77"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB005T8K4JA40.61In Stock4Square D. Company40.6 @ 1
thumbzoomTMELR2K031242.74182SCHNEIDER ELECTRIC42.74 @ 1
RS Delivers758-97352.488145Schneider Electric52.488 @ 1
thumbzoomkempstoncontrols.co.ukLR2-K031255.655203514Schneider55.6552035 @ 1
standardelectricsupply.com14589157.311161Schneider Electric57.31 @ 1
thumbzoomgordonelectricsupply.comLR2K031261.091In StockSQUARE D61.09 @ 1
thumbzoomZoroG253737665.491166Schneider Electric0.3565.49 @ 1
AmazonSCB01LZARG3U66.241In StockSchneider66.24 @ 1
thumbzoomGalcoLR2K0312-SQD69.131In StockSquare D69.13 @ 1
thumbzoommostelectric.comLR2K031270.071In StockSQUARE D/TELEMECANIQUE70.07 @ 1
hvacdiscountstore.comSCH--LR2K031270.1912SCHNEIDER ELECTRIC (SQUARE D)70.19 @ 1
thumbzoomblackhawksupply.comLR2K031270.751In StockSquare D70.75 @ 1
rspsupply.comSCHNEIDER LR2K031272.61In StockSchneider Electric72.6 @ 1
thumbzoomsustainablesupply.comC120871877.331In StockSchneider Electric0.3577.33 @ 1
thumbzoomsimsupply.comZO-G253737677.61197Schneider Electric77.61 @ 1
crescentelectric.com15460580.271In StockSchneider Electric80.27 @ 1
Graybar9606889283.08161In StockSquare D (Schneider Electric)83.0816 @ 1
thumbzoomNewark42M223386.41In StockSCHNEIDER ELECTRIC86.4 @ 1
us.rs-online.com7000726289.49126Schneider Electric89.49 @ 1
thumbzoomVoomi SupplyLR2K031298.991In StockSchneider Electric (Square D)98.99 @ 1
simplybreakers.comLR2K031298.991In StockSchneider Electric98.99 @ 1
thumbzoomNational Supply Network6952696099.141In StockSchneider Electric99.14 @ 1
thumbzoommidwestapplianceparts.comLR2K0312-SQ-P101.171In StockSquared101.17 @ 1
thumbzoomRaptor SuppliesAG7EHP131.63500351In StockSCHNEIDER ELECTRIC131.6350035 @ 1
