CAI - SCHNEIDER ELECTRIC LR2K0314

B07J2VY2TB

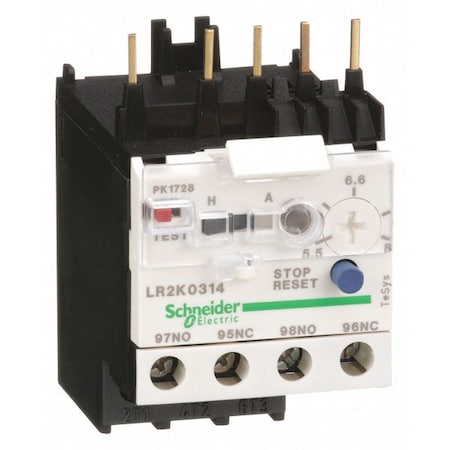

Schneider Electric IEC Style Overload Relay, 5.5 to 8.0A, 3 Poles, Auto, Manual Reset, Trip Class: 10

Schneider Electric IEC Style Overload Relay, 5.5 to 8.0A, 3 Poles, Auto, Manual Reset, Trip Class: 10zoom

Attributes

Key Value
[Ith] Conventional Free.6 A signalling circuit
[Ui] Rated Insulation V.power circuit 690 V BS .
[Uimp] Rated Impulse Wi.6 kV
Ambient Air Temperature.-20-55 ?C without derat.
Ambient Air Temperature.-40-70 ?C
Ambient Temperature Ran.-4-131 ?F
Amperage Rating5.5-8A
ApplicationMotor protection;LC7K;L.
ApprovalsCSA, UL
Associated Fuse Rating6 A gG for signalling c.
Auxiliary Contact Compo.1 NO + 1 NC
Body Depth - Relay2.56 in
Body Height - Relay2.28 in
Body Width - Relay1.77 in
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLR2K0314
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211018
Class Rating10
ComponentIEC Overload Relay
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration1 NO + 1 NC
Contact Rating5.5 to 8 A
Control TypeRed push-button trip te.
Control Voltage690
Country of OriginCzech Republic, CZ - Cz.
Current Range5.50 to 8.00A
Current Rating5.5 to 8 A
Current Setting Range5.5-8 A
Current Stock97
Current, Ratings8
Depth2.559 in, 2.28", 65 mm
Device Short NameLR2K
Dimensions1.772 x 2.283 x 2.559 ;.
ECCNEAR99
Environmental DisclosureENVPEP2211018
Eu Rohs DirectiveCompliant with Exemptio.
Family NameTeSys Family
Family SeriesSquare D Overload Relays
FeaturesSingle Phase Sensitivit.
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94 .
For Use WithTeSys K AC or DC IEC Co.
FunctionOverload
Gross Weight0 lbs
Height2.56", 58 mm
InsulationPOWER CIRCUIT 690 V BS .
International ShippingNo
Ip Degree Of ProtectionIP2X conforming to IEC .
ItemOverload Relay
Item - RelayIEC Style Overload Relay
Item NumberLR2K0314
Item Typedifferential thermal ov.
Lead TimeExpected to ship in 1-2.
Length1.772 in
Local Signallingtrip indicator Yellow)
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberLR2K0314
Maximum Operating Tempe.60 C
Mechanical Robustnessshocks NO contact10 Gn .
Mercury FreeYes
Minimum Operating Tempe.-20?C
MountingRail Plate
Mounting StyleDIN Rail, Plate
Mounting Supportunder contactor || plat.
MpnLR2K0314
Net Weight0 lbs, 0.145 kg
Network TypeDC || AC
Number of Circuits1
Number of Poles3
Operating Altitude6561.68 ft (2000 m) wit.
Operating Temperature-20C TO 55C
Output Contacts1NO, 1NC
Overall Height - Relay2.28 in
Overload Relay Current .5.5 to 8.0 A, 5.5 to 8..
Phase Failure Sensitivi.yes IEC 60947-4-1
Power Dissipation Per P.2 W
Primary TypeContactor
Product CertificationsUL || CSA || UKCA
Product CompatibilityLC7K || LC1K || LP4K ||.
Product NameTeSys LRK
Product Or Component Ty.differential thermal ov.
Protective TreatmentTC IEC 60068 || TC DIN .
RangeTeSys
Reach RegulationReference contains Subs.
Relay Applicationmotor protection
Relay TypeElectromechanical
Reset TypeMANUAL OR AUTO, Automat.
Reset Type - RelayAuto, Manual
Rohs Exemption Informat.Yes
Sensing MethodBIMETALLIC
SeriesTeSys LRK, TeSys LR2K S.
Size2.56, 65 L x 58 H x 45 .
SKUZO-G1095446
Special FeaturesRed push-button trip te.
StandardUL LISTED - CSA CERTIFI.
StandardsUL File/CCN E164353/NKC.
Starter Amperage8 Amp
Starter ClassClass 10A
Starter ModelLR2K
Starter TypeIEC
Sub BrandTeSys LRK;LR2K
Sub ComponentTeSys K Non-Differentia.
SubCategoryElectrical
Supply Voltage690 VAC
Sustainable Offer StatusGreen Premium product
Temperature Operating R.-20 to 60?C
Terminal TypeScrew Clamp
Thermal Overload Classclass 10A IEC 60947-4-1
Thermal Protection Adju.5.5-8 A
Tightening Torque1.3 N.m screw clamp ter.
Trip Class10, Class 10A
Trip Class - Overload10
Trip TypeTHERMAL - AMBIENT COMPE.
TypeOverload
UNSPSC39122330
UPC785901883043
UPC Code785901883043
Use With - Contactors a.Mfr. Series LC1K, LC7K,.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width0 in, 1.77", 45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialautomationparts.comREL-0491-E24.851In StockSCHNEIDER ELECTRIC24.85 @ 1
thumbzoomebay.com_bbwillyLR2K031425.01In StockSCHNEIDER ELECTRIC25.0 @ 1
thumbzoomebay.com_industrialgaragesalesLR2K031428.251In StockSCHNEIDER ELECTRIC28.25 @ 1
thumbzoomebay.com_mactronix_desmondLR2K031429.01In StockSCHNEIDER ELECTRIC29.0 @ 1
thumbzoomebay.com_skn51LR2K031429.991In StockSCHNEIDER ELECTRIC29.99 @ 1
thumbzoomebay.com_mrsreporonLR2K031438.991In StockSCHNEIDER ELECTRIC38.99 @ 1
thumbzoomebay.com_pcmml1707LR2K031442.01In StockSCHNEIDER ELECTRIC42.0 @ 1
thumbzoomTMELR2K031442.0212SCHNEIDER ELECTRIC42.02 @ 1
thumbzoomebay.com_snshi-9LR2K031445.01In StockSCHNEIDER ELECTRIC45.0 @ 1
SuperbreakersLR2K031451.3513Schneider Electric / Telemecanique51.35 @ 1
RS Delivers758-98953.076116Schneider Electric53.076 @ 1
grainger.caTLQLR2K031454.18141791In StockSCHNEIDER ELECTRIC0.3554.1814179 @ 1
standardelectricsupply.com14611357.9124Schneider Electric57.9 @ 1
thumbzoomebay.com_plccenterLR2K031462.91In StockSCHNEIDER ELECTRIC62.9 @ 1
thumbzoommayerelectric.comSQDLR2K031465.051In StockSQUARE D0.31965.05 @ 1
thumbzoomZoroG109544666.491161Schneider Electric0.3566.49 @ 1
thumbzoomebay.com_hadalgostoreLR2K031467.561In StockSCHNEIDER ELECTRIC67.56 @ 1
thumbzoomGalcoLR2K0314-SQD69.131In StockSquare D69.13 @ 1
thumbzoommostelectric.comLR2K031470.071In StockSQUARE D/TELEMECANIQUE70.07 @ 1
rspsupply.comSCHNEIDER LR2K031470.451In StockSchneider Electric70.45 @ 1
thumbzoomblackhawksupply.comLR2K031470.751In StockSquare D70.75 @ 1
Graybar9600956074.97281In StockSquare D (Schneider Electric)74.9728 @ 1
AmazonTPB001ZRXRDO74.991In Stock5SCHNEIDER ELECTRIC74.99 @ 1
thumbzoomsustainablesupply.comC120871977.331In StockSchneider Electric0.3577.33 @ 1
hvacdiscountstore.comSCH--LR2K031477.391In StockSCHNEIDER ELECTRIC (SQUARE D)77.39 @ 1
simplybreakers.comLR2K031477.991In StockSchneider Electric77.99 @ 1
thumbzoomsimsupply.comZO-G109544678.8197Schneider Electric78.8 @ 1
crescentelectric.com15975780.271In StockSchneider Electric80.27 @ 1
thumbzoommidwestapplianceparts.comLR2K0314-SQ-P90.671In StockSquared90.67 @ 1
thumbzoomebay.com_hvacdiscountstoreLR2K031491.981In StockSCHNEIDER ELECTRIC91.98 @ 1
us.rs-online.com7000726392.9117Schneider Electric92.91 @ 1
thumbzoomptacsolutions.comLR2K031493.2913Schneider Electric (Square D)93.29 @ 1
thumbzoomindustrialstores.comLR2K031494.5813Square D94.58 @ 1
thumbzoomVoomi SupplyLR2K031498.991In StockSchneider Electric (Square D)98.99 @ 1
thumbzoomNational Supply Network6468199299.141In StockSchneider Electric99.14 @ 1
thumbzoomNewark16B73499.511In StockSCHNEIDER ELECTRIC99.51 @ 1
thumbzoomRaptor SuppliesAG7EHQ127.14325651In StockSCHNEIDER ELECTRIC127.1432565 @ 1
