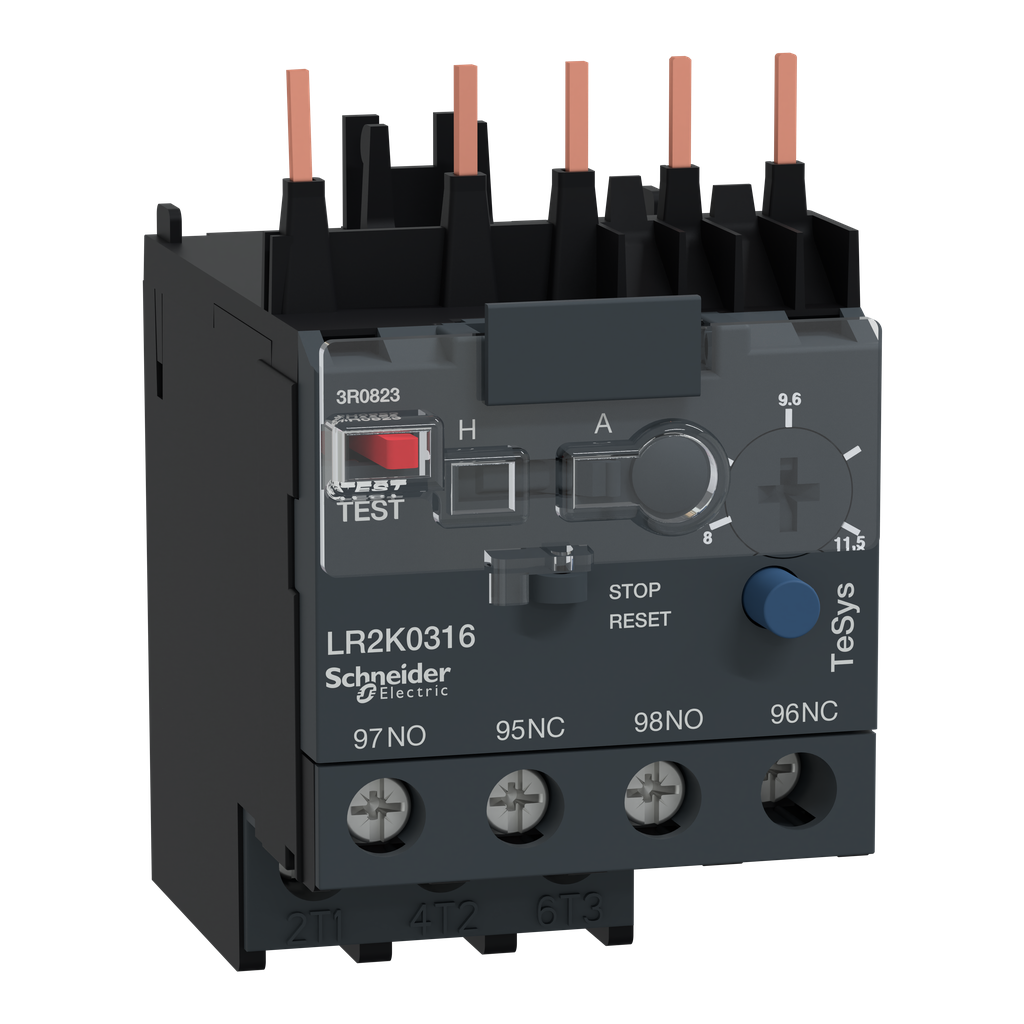

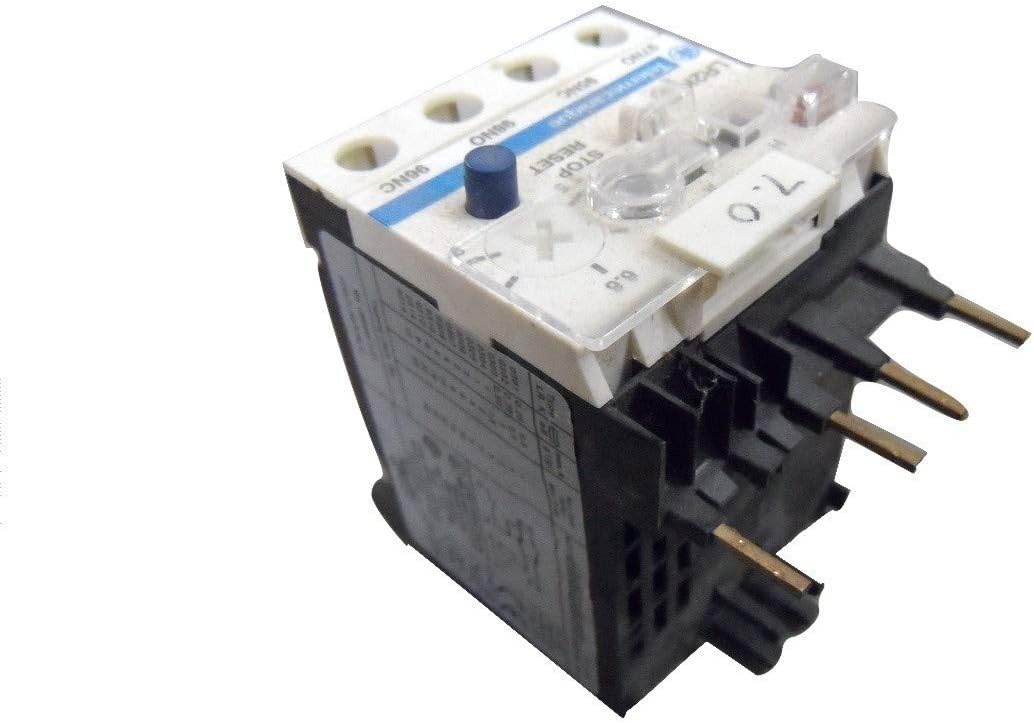

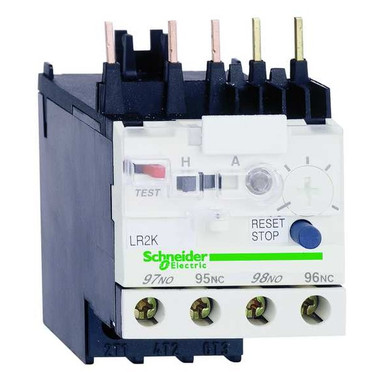

Schneider Electric LR2K0316

mpnLR2K0316
brandname: Schneider Electric
manufacturername: Schneider Electric

SCHNEIDER ELECTRIC Bimetallic Overload Relay 575-Vac 11.5-Amp LR2K0316 Switch Not Fusible Hd 600V 600A 4P Nema1

Brand: Schneider Electric
PartNumber: LR2K0316
Model: LR2K0316
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: SCHNEIDER ELECTRIC
Label: SCHNEIDER ELECTRIC

Attributes

Key	Value
[Ith] Conventional Free.	6 A signalling circuit
[Ui] Rated Insulation V.	power circuit 690 V BS .
[Uimp] Rated Impulse Wi.	6 kV
Ambient Air Temperature.	-20-55 ?C without derat.
Ambient Air Temperature.	-40-70 ?C
Ambient Temperature Ran.	-4-131 ?F
Amperage Rating	8-11.5A
Application	Motor protection;LC7K;L.
Approvals	CSA, UL
ASIN	B00CONBYII
Associated Fuse Rating	6 A gG signalling circu.
Auxiliary Contact Compo.	1 NO + 1 NC
Batteries Required?	No
Body Depth - Relay	2.56 in
Body Height - Relay	2.28 in, 2.28"
Body Width - Relay	1.77", 1.77 in
Brand	Schneider Electric
California Proposition .	Antimony oxide & Antimo.
Catalog Number	LR2K0316
China Rohs Regulation	Product out of China Ro.
Circularity Profile	ENVEOLI2211018
Class Rating	10
Component	IEC Overload Relay
Connections - Terminals	screw clamp terminals 1.
Contact Configuration	1 NO + 1 NC
Contact Rating	8 to 11.5 A
Control Type	Red push-button trip te.
Control Voltage	690
Country of Origin	Czech Republic, CZ - Cz.
Current Range	8.00 to 11.5A
Current Rating	8 to 11.5 A
Current Setting Range	8-11.5 A
Current Stock	97
Current, Ratings	11.5
Depth	2.559 in, 2.28", 65 mm
Device Short Name	LR2K
Dimensions	1.772 x 2.283 x 2.559 ;.
ECCN	EAR99
Environmental Disclosure	ENVPEP2211018
Eu Rohs Directive	Compliant
Family Name	TeSys Family
Family Series	Square D Overload Relays
Features	Single Phase Sensitivit.
Fire Resistance	850 ?C IEC 60695-2-1
Flame Retardance	V1 conforming to UL 94 .
For Use With	TeSys K AC or DC IEC Co.
Function	Overload
Gross Weight	0.355 lbs
Height	2.56", 58 mm
Included Components	LR2K0316
Insulation	POWER CIRCUIT 690 V BS .
International Shipping	No
Ip Degree Of Protection	IP2X conforming to IEC .
Item	Overload Relay
Item - Relay	IEC Style Overload Relay
Item model number	LR2K0316
Item Number	LR2K0316
Item Package Quantity	1
Item Type	differential thermal ov.
Lead Time	Expected to ship in 1-2.
Length	1.772 in
Local Signalling	trip indicator Yellow)
Made in USA	No
Manufacturer	Square D, Schneider Ele.
Maximum Operating Tempe.	60 C
Mechanical Robustness	shocks NO contact10 Gn .
Mercury Free	Yes
Minimum Operating Tempe.	-20?C
Mounting	Rail Plate
Mounting Style	DIN Rail, Plate
Mounting Support	under contactor \|\| plat.
Mpn	LR2K0316
Net Weight	0.305 lbs, 0.145 kg
Network Type	DC \|\| AC
Number of Circuits	1
Number of Poles	3
Operating Altitude	6561.68 ft (2000 m) wit.
Operating Temperature	-20C TO 55C
Output Contacts	1NO, 1NC
Overall Height - Relay	2.28 in
Overload Relay Current .	8.0 to 11.5 A, 8.0 to 1.
Part Number	LR2K0316
Phase Failure Sensitivi.	yes IEC 60947-4-1
Power Dissipation Per P.	2 W
Primary Type	Contactor
Product Certifications	UL \|\| CSA \|\| UKCA
Product Compatibility	LC7K \|\| LP1K \|\| LC1K \|\|.
Product Name	TeSys LRK
Product Or Component Ty.	differential thermal ov.
Protective Treatment	TC IEC 60068 \|\| TC DIN .
Range	TeSys
Reach Regulation	Reference contains Subs.
Relay Application	motor protection
Relay Type	Electromechanical
Reset Type	MANUAL OR AUTO, Automat.
Reset Type - Relay	Auto, Manual
Rohs Exemption Informat.	Yes
Sensing Method	BIMETALLIC
Series	TeSys LRK, TeSys LR2K S.
Size	K-LINE, 65 L x 58 H x 4.
SKU	ZO-G0601903
Special Features	Red push-button trip te.
Standard	UL LISTED - CSA CERTIFI.
Standards	UL File/CCN E164353/NKC.
Starter Amperage	11.5 Amp
Starter Class	Class 10A
Starter Model	LR2K
Starter Type	IEC
Sub Brand	TeSys LRK;LR2K
Sub Component	TeSys K Non-Differentia.
SubCategory	Electrical
Supply Voltage	690 VAC
Sustainable Offer Status	Green Premium product
Temperature Operating R.	-20 to 60?C
Terminal Type	Screw Clamp
Thermal Overload Class	class 10A IEC 60947-4-1
Thermal Protection Adju.	8-11.5 A
Tightening Torque	1.3 N.m screw clamp ter.
Trip Class	10, Class 10A
Trip Class - Overload	10
Trip Type	THERMAL - AMBIENT COMPE.
Type	Overload
UNSPSC	39122330
UPC	785901913580
UPC Code	785901913580
Use With - Contactors a.	Mfr. Series LC1K, LC7K,.
Warranty	18 months
Warranty Description	Contractual Warranty:18.
Weee	The product must be dis.
Width	0 in, 1.77", 45 mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
TME	LR2K0316	37.62	1	10		SCHNEIDER ELECTRIC		37.62 @ 10
ebay.com_total_control_supply	LR2K0316	41.8	1	10		SCHNEIDER ELECTRIC		41.8 @ 10
RS Delivers	758-995	49.872	1	36		Schneider Electric		49.872 @ 10
grainger.ca	TLQLR2K0316	54.1814179	1	10		SCHNEIDER ELECTRIC	0.3	54.1814179 @ 10
ebay.com_waltonsindustrial	LR2K0316	59.02	1	10		SCHNEIDER ELECTRIC		59.02 @ 10
standardelectricsupply.com	968144	59.08	1	10		Schneider Electric		59.08 @ 10
gordonelectricsupply.com	LR2K0316	61.09	1	10	10	SQUARE D		61.09 @ 10
mayerelectric.com	SQDLR2K0316	65.05	1	10		SQUARE D	0.319	65.05 @ 10
Zoro	G0601903	65.25	1	131		Schneider Electric	0.3	65.25 @ 10
mostelectric.com	LR2K0316	70.07	1	10		SQUARE D/TELEMECANIQUE		70.07 @ 10
hvacdiscountstore.com	SCH--LR2K0316	70.2	1	10		SCHNEIDER ELECTRIC (SQUARE D)		70.2 @ 10
blackhawksupply.com	LR2K0316	70.75	1	10		Square D		70.75 @ 10
Grainger	6B451	71.01	1	10		SCHNEIDER ELECTRIC	0.3	71.01 @ 10
AmazonTP	B00CONBYII	72.48	1	10	5	Schneider Electric		72.48 @ 10
rspsupply.com	SCHNEIDER LR2K0316	72.6	1	10		Schneider Electric		72.6 @ 10
Graybar	96006917	74.9728	1	10		Square D (Schneider Electric)		74.9728 @ 10
Galco	LR2K0316-SQD	75.12	1	10		Square D	0.355	75.12 @ 10
sustainablesupply.com	C1208775	77.33	1	10		Schneider Electric	0.3	77.33 @ 10
simsupply.com	ZO-G0601903	77.33	1	97		Schneider Electric		77.33 @ 10
crescentelectric.com	160457	80.27	1	10		Schneider Electric		80.27 @ 10
AmazonSC	B00CONBYII	81.2	1	10		Schneider Electric	251.0	81.2 @ 10
ebay.com_hvacdiscountstore	LR2K0316	85.98	1	10		SCHNEIDER ELECTRIC		85.98 @ 10
us.rs-online.com	70007264	88.4	1	10		Schneider Electric		88.4 @ 10
National Supply Network	69648616	90.149	1	10		Schneider Electric		90.149 @ 10
midwestapplianceparts.com	LR2K0316-SQ-P	90.67	1	10		Squared		90.67 @ 10
Newark	16B735	94.68	1	10		SCHNEIDER ELECTRIC		94.68 @ 10
Voomi Supply	LR2K0316	98.99	1	10		Schneider Electric (Square D)		98.99 @ 10
simplybreakers.com	LR2K0316	116.99	1	10		Schneider Electric		116.99 @ 10
Raptor Supplies	AG7ELH	131.5456155	1	10		SCHNEIDER ELECTRIC		131.5456155 @ 10
