Schneider LR2K0321

B00JF308NM

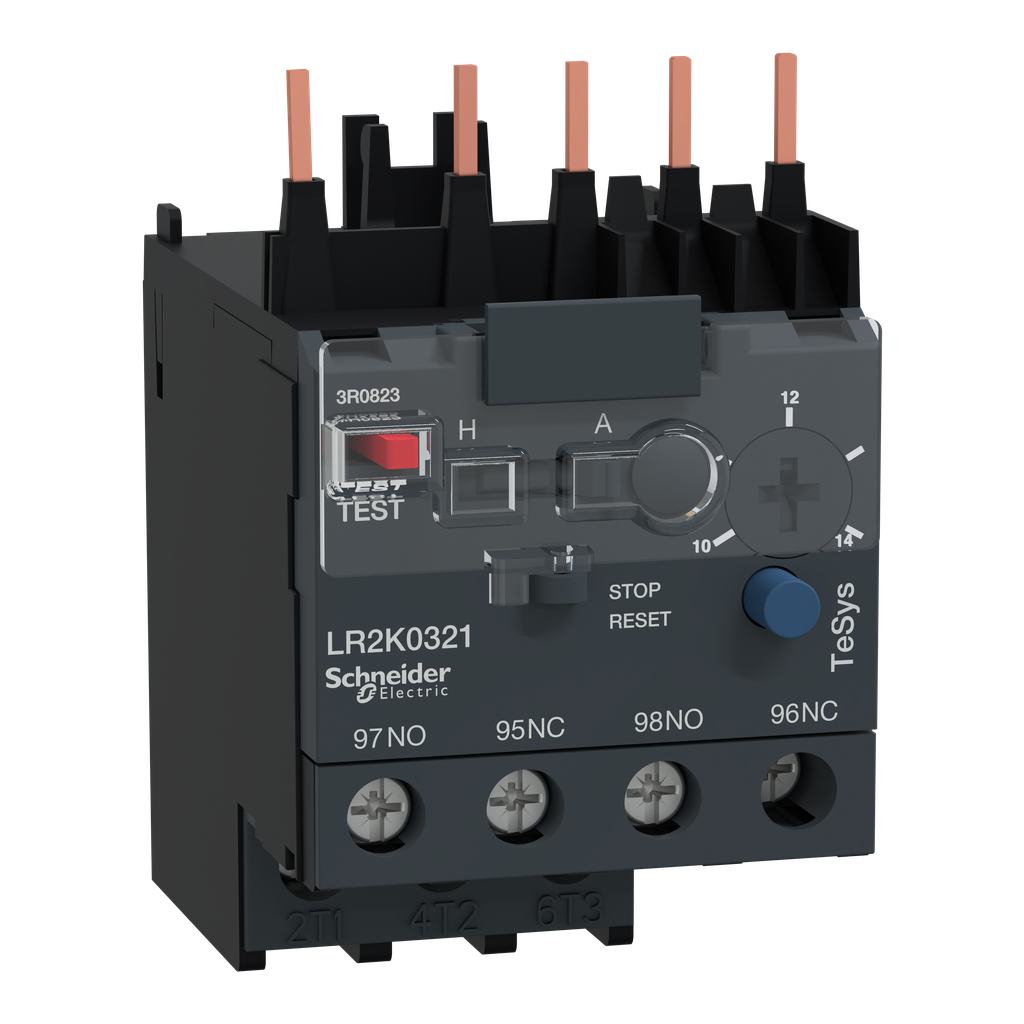

Schneider LR2K0321 TeSys K - Differential Thermal Overload relays - 10.14A - Class 10A

Schneider LR2K0321 TeSys K - Differential Thermal Overload relays - 10.14A - Class 10Azoom

Attributes

Key Value
[Ith] Conventional Free.6 A signalling circuit
[Ui] Rated Insulation V.power circuit 690 V BS .
[Uimp] Rated Impulse Wi.6 kV
Ambient Air Temperature.-20-55 ?C without derat.
Ambient Air Temperature.-40-70 ?C
Ambient Temperature Ran.-4-131 ?F
Amperage Rating10-14A
ApplicationMotor protection;LC7K;L.
ApprovalsCSA, UL
Associated Fuse Rating6 A gG signalling circu.
Auxiliary Contact Compo.1 NO + 1 NC
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLR2K0321
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211018
Class Rating10
ComponentIEC Overload Relay
Connection TypeScrew Clamp Screw Clamp
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration1 NO + 1 NC
Contact Operation1NO/1NC
Control TypeRed push-button trip te.
Control Voltage690
Country of OriginCzech Republic, CZ - Cz.
Current Setting Range10-14 A
Depth65 mm
Device Short NameLR2K
ECCNEAR99
Environmental DisclosureENVPEP2211018
Eu Rohs DirectiveCompliant
Family NameTeSys Family
Family SeriesSquare D Overload Relays
Fire Resistance850?C IEC 60695-2-1, 85.
Flame RetardanceV1 conforming to UL 94 .
Gross Weight0 lbs
Height58 mm
InsulationPOWER CIRCUIT 690 V BS .
Ip Degree Of ProtectionIP2X conforming to IEC .
ItemBIMETALLIC Overload Rel.
Item NumberLR2K0321
Item Typedifferential thermal ov.
Local Signallingtrip indicator Yellow)
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberLR2K0321
Mechanical Robustnessshocks NO contact10 Gn .
Mercury FreeYes
MountingRail Plate
Mounting StyleDIN Rail, Plate
Mounting Supportunder contactor || plat.
Net Weight0 lbs, 0.145 kg
Network TypeAC || DC
Operating Altitude6561.68 ft (2000 m) wit.
Operating Temperature-20-55 A Degrees C WITH.
Output Contacts1NO, 1NC
Phase Failure Sensitivi.yes IEC 60947-4-1
Power Dissipation Per P.2 W
Product CertificationsUL || CSA || UKCA
Product CompatibilityLC7K || LP4K || LC1K ||.
Product NameTeSys LRK
Product Or Component Ty.differential thermal ov.
Protective TreatmentTC IEC 60068 || TC DIN .
RangeTeSys
Reach RegulationReference contains Subs.
Relay Applicationmotor protection
Reset TypeAutomatic, Manual
Rohs Exemption Informat.Yes
SeriesTeSys LRK, TeSys LR2K S.
Size2.56
Special FeaturesRed push-button trip te.
Standard850 A Degrees C IEC 606.
StandardsIEC 60947 || BS 4941 ||.
Starter Amperage14 Amp
Starter ClassClass 10A
Starter ModelLR2K
Sub BrandTeSys LRK;LR2K
Sub ComponentTeSys K Non-Differentia.
Supply Voltage690 VAC
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Clamp
Thermal Overload Classclass 10A IEC 60947-4-1
Thermal Protection Adju.10-14 A
Tightening Torque1.3 N.m screw clamp ter.
Trip ClassClass 10A
Trip TypeCLASS 10A CONFORMING TO.
UNSPSC39122330
UPC785901705888
UPC Code785901705888
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELR2K032146.2913SCHNEIDER ELECTRIC46.29 @ 1
standardelectricsupply.com84810359.081In StockSchneider Electric59.08 @ 1
thumbzoomkempstoncontrols.co.ukLR2K032159.1078151In StockSchneider59.107815 @ 1
RS Delivers372-902959.316139Schneider Electric59.316 @ 1
thumbzoomZoroG085442162.051In StockSchneider Electric0.3562.05 @ 1
thumbzoommayerelectric.comSQDLR2K032165.051In StockSQUARE D0.31965.05 @ 1
thumbzoomGalcoLR2K0321-SQD69.131In StockSquare D69.13 @ 1
thumbzoommostelectric.comLR2K032170.071In StockSQUARE D/TELEMECANIQUE70.07 @ 1
thumbzoomblackhawksupply.comLR2K032170.751In StockSquare D70.75 @ 1
rspsupply.comSCHNEIDER LR2K032172.61In StockSchneider Electric72.6 @ 1
Graybar9954246074.97281In StockSquare D (Schneider Electric)74.9728 @ 1
thumbzoomcrescentelectric.com27787880.271In StockSchneider Electric80.27 @ 1
us.rs-online.com7037946585.0711Schneider Electric85.07 @ 1
Newark80C095686.41In StockSCHNEIDER ELECTRIC86.4 @ 1
thumbzoomsustainablesupply.comC303924690.331In StockSchneider Electric0.3590.33 @ 1
thumbzoomNational Supply Network6964860893.371In StockSchneider Electric93.37 @ 1
