Schneider Electric NSYCRN86300

B00CONM1GC

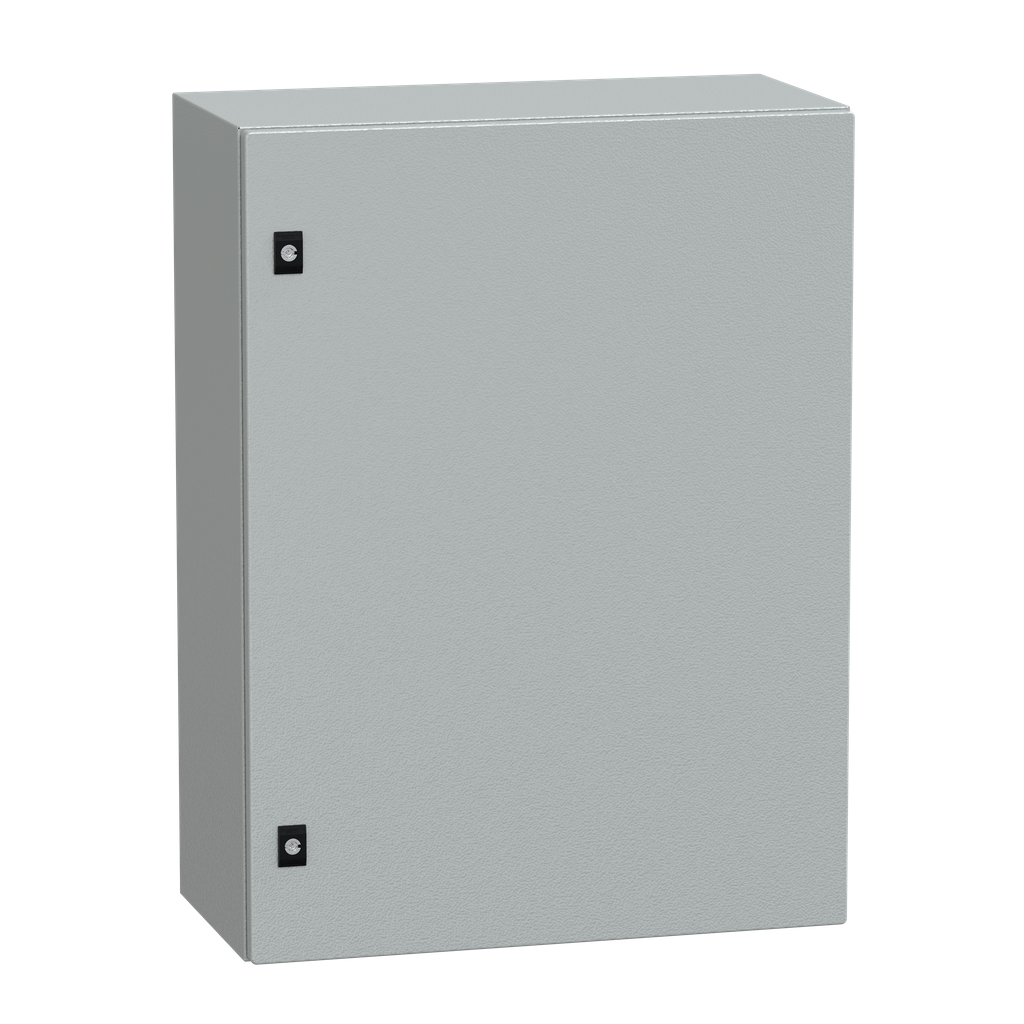

SCHNEIDER ELECTRIC NSYCRN86300 Crn 800X600X300 One Door

SCHNEIDER ELECTRIC NSYCRN86300 Crn 800X600X300 One Doorzoom

Attributes

Key Value
Accessibility For Opera.front
ApplicationMulti-purpose;Sides mad.
ApprovalscUL, UL
Approximate Depth12" (305mm)
Approximate Height32" (813mm)
Approximate Width24" (610mm)
Area (L x W)744in? (4800cm?)
BrandSchneider Electric
Catalog NumberNSYCRN86300
CategoryBoxes, Enclosures, Racks
China Rohs RegulationProduct out of China Ro.
ColorGray, Gray RAL 7035)
CompositionMetallic
Construction1 body;1 cable gland pl.
Container TypeEnclosure
Country of OriginES - Spain, Spain
Cover DesignHinged
DescriptionCRN WM ENCLOSURE 800X60.
DesignCover Included
Detailed DescriptionEnclosure Metal, Steel .
Device Applicationmulti-purpose
Device Composition1 body || 1 cable gland.
Digi-Key Part Number4008-NSYCRN86300-ND
Dimensions31.496 x 23.622 x 11.81.
Door Opening Sidereversible 120 ?)
Door TypeSolid
ECCNEAR99
Enclosure Nominal Depth300 mm
Enclosure Nominal Height800 mm
Enclosure Nominal Width600 mm
Environmental DisclosureENVPEP100104EN
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Enclosures
Features-
Gross Weight0.0624 lbs
GTIN03606480211799
Height11.811" (300.00mm), 31..
Ik Degree Of ProtectionIK10 IEC 62262
Installation Accessory .wall-mounting
Ip Degree Of ProtectionIP66 IEC 60529
Item NumberNSYCRN86300
Item TypeWall-mounting;Compact e.
Latching MechanismScrews
Lock Type3 mm double-bar lock
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number588158
Manufacturer Product Nu.NSYCRN86300
Manufacturer Standard L.8 Weeks
MaterialSteel, body steel, ABS,.
Material Flammability R.-
Mercury FreeYes
MfrSchneider Electric
MountingWall
Mounting Plate Descript.without mounting plate
Net Weight0.0624 lbs, 22 kg
Nominal Depth12 "
Nominal Height32 "
Nominal Width24 "
Number Of Doorsfront face 1
Number of Doors1
PackageBox
Product CertificationsUL || cUL || DNV-GL
Product NameSpacial CRN
Product Or Component Ty.compact enclosure
Product StatusActive
RangeSpacial
RatingsIP66
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Removable Partsdoor by hinges || cable.
RoHSYes
Rohs Exemption Informat.Yes
Series-, Spacial CRN Series
Size11.81
Size / Dimension31.496" L x 23.622" W (.
Special Features3 mm double-bar lock
StandardUL;cUL;DNV-GL;IEC 62208
StandardsIEC 62208
Sub BrandSpacial
Surface Finishepoxy-polyester powder
Sustainable Offer StatusGreen Premium product
Thickness-
TypeBox-Lid
Type Of Gland Platestandard
UNSPSC39121303
UPC785901896241
UPC Code785901896241
Variant Particularitysides made from a singl.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight-
Width23.62 in.
Window/Clear CoverNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialrefrigerationparts.comNSYCRN863008.521In StockSchneider Electric8.52 @ 1
thumbzoomGalcoNSYCRN86300-SQD208.0115Square D0.0624208.01 @ 1
thumbzoomDigi-Key16749598211.2415Schneider Electric211.24 @ 1
thumbzoomgordonelectricsupply.comNSYCRN86300230.01In Stock10SQUARE D230.0 @ 1
thumbzoommayerelectric.comSQDNSYCRN86300250.461In StockSCHNEIDER ELECTRIC48.4250.46 @ 1
thumbzoomNewark85R2168280.91In StockSCHNEIDER ELECTRIC280.9 @ 1
us.rs-online.com70747121308.9911Schneider Electric308.99 @ 1
RS Delivers707-9163318.1819Schneider Electric318.18 @ 1
thumbzoomcrescentelectric.com149908319.851In StockSchneider Electric319.85 @ 1
Graybar25393460321.65281In StockSquare D (Schneider Electric)321.6528 @ 1
