Square D by Schneider Electric 9013GHG6J65

B00CON91HY

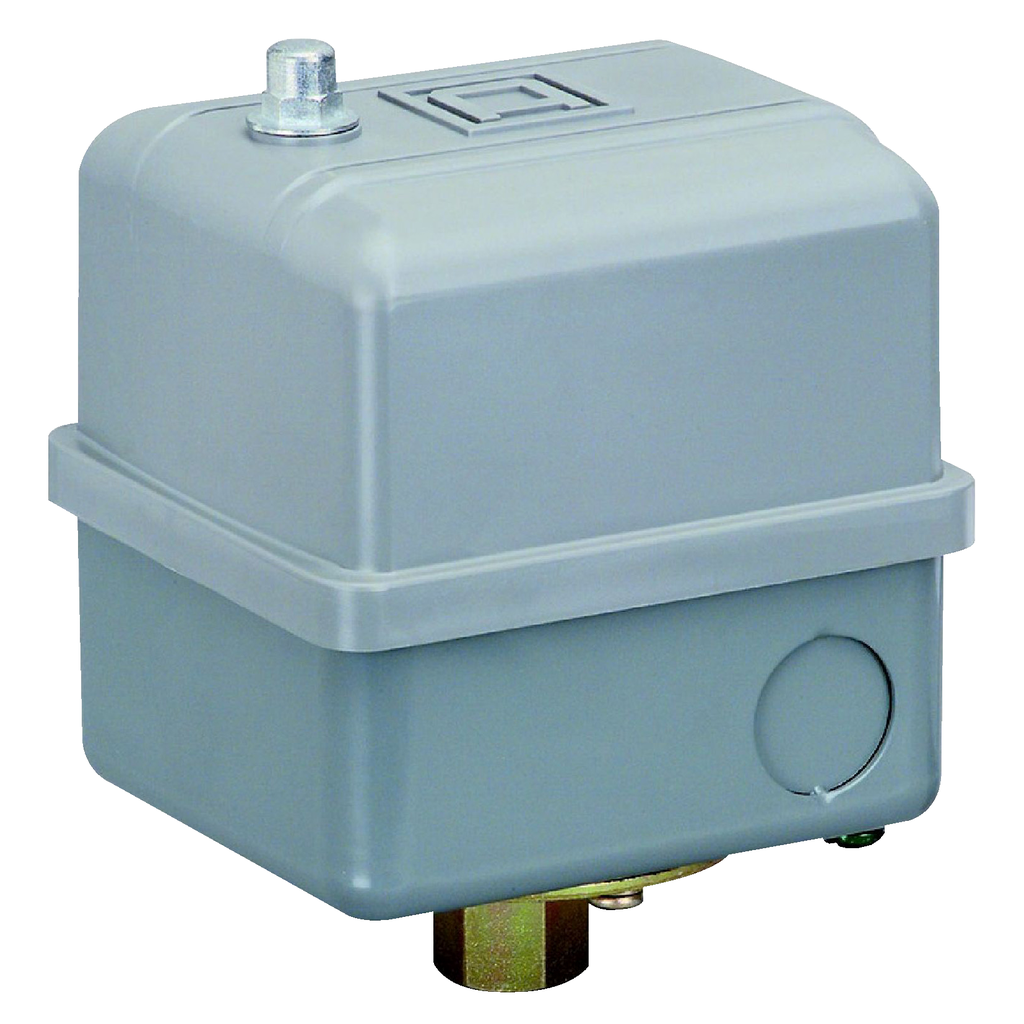

Square D by Schneider Electric 9013GHG6J65 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 3/8" NPSF, 215-250 psi Points

Square D by Schneider Electric 9013GHG6J65 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 3/8" NPSF, 215-250 psi Pointszoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
Adjustable Range On Ris.80-250 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
ApprovalsCSA, UL
Approximate Adjustable .24-45 psi
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
Circularity ProfileENVEOLI111210EN
ConditionNew
Contact TypeDPST
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Depth3.88 in
Destruction Pressure300 psi
Electrical Circuit Typepower circuit
Electrical ConnectionScrew Terminals, screw-.
Electrical Durability100000 cycles 10 cyc/mn
Enclosure RatingNEMA 1
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.7
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Pressure Switc.
Fluid Connection Type0.375 inch NPSF interna.
Gauge Proof Pressure500 psig
Gross Weight0 lbs
GTIN785901176107
Height5.4 in
Increasing Pressure80-250 psi
Ip Degree Of ProtectionIP20 conforming to IEC .
Item Number9013GHG6J65
Local Displaywithout
ManufacturerSquare D
Manufacturer Part Number155861
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Nema Degree Of Protecti.NEMA 1 UL 50
Net Weight2.25 lb(US), 2.25 lbs
Operating Positionany position
Port Connection3/8 NPT Female
Pressure Actuatordiaphragm
Pressure Sensor Name9013GH
Pressure Sensor Size250 psi 32-215 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch Type Of.regulation between 2 th.
Primary TypePressure Switch
Product CertificationsCSA file LR25490 || UL .
Product Series9013G
Product Specific Applic.control electrically dr.
Protective Treatmentnone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
StandardsCE || NSF ANSI 372 || U.
Sustainable Offer StatusGreen Premium product
Terminal Block Type4 terminals
Terminals Description I.L2-T2 || L1-T1
Type of CircuitNormally Closed
Type Of Packingindividual
Value Of Setting215...250 psi
Warranty18 months
Weight2.000000
Width3.44 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomblackhawksupply.com9013GHG6J65108.551In StockSquare-D108.55 @ 1
thumbzoomGalco9013GHG6J65-SQD108.991In StockSquare D2.25108.99 @ 1
thumbzoomindustrialrefrigerationparts.com9013GHG6J65110.381In StockSquare D2.0110.38 @ 1
thumbzoomgordonelectricsupply.com9013GHG6J65117.091In Stock10SQUARE D117.09 @ 1
thumbzoomsustainablesupply.comC2681924130.681In StockSquare D1.96130.68 @ 1
thumbzoommayerelectric.comSQD9013GHG6J65151.811In StockSQUARE D2.25151.81 @ 1
us.rs-online.com71436917161.921In StockSquare D161.92 @ 1
