Square D HJA36025

B009OYDO9C

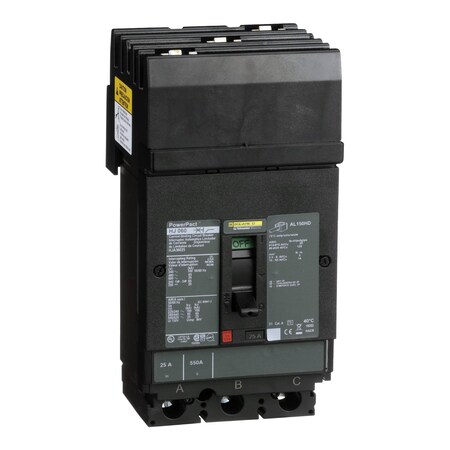

SQUARE D HJA36025 Molded Case Circuit Breaker 600V 25A

SQUARE D HJA36025 Molded Case Circuit Breaker 600V 25Azoom

Attributes

Key Value
AC Voltage Rating600VAC
Amperage Rating25, 25 A, 25
Amps25
ApplicationHACR rated Applications.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D by Schneider E.
Catalog NumberHJA36025
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
Color FamilyBlack
ConnectionI-LINE CONNECTION (ON E.
Connection typeI-Line?/Load Lug
Country of OriginMX - Mexico, Mexico
Current Rating25-25A, 25 A
Depth86 mm
Dimensions4.12 in W x 4.36 in D x.
DisplayHJA36025 Circuit breake.
ECCNEAR99
Family NamePowerPact H Family
FeaturesMercury Free; PVC Free
FrameH, H-FRAME
Frame SizeH
Frame TypeH Frame
Frequency Rating50/60, 50/60 Hz, 50/60HZ
Height163 mm, 4.5 in., 6.42
High Amp Trip Setting750 A
Interrupt Rating100 kA at 220/240V AC, .
ItemMolded Case Circuit Bre.
Item TypeMolded Case Circuit Bre.
Length16 mm, 4.8 IN
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating100 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
Mounting typePlug-On
Mounting TypeI-Line
No. of Poles3-Pole
Number of Poles3
Operating Temperature-13F AND 158F (-25 C AN.
Package Quantity1
Phase3, 3 ph
Phase ConnectionABC
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesPowerPact H-Frame Series
Special FeaturesI-LINE PLUG-ON
StandardUL || CSA || NEMA || NO.
StandardsUL, CSA, NEMA, NOM, CE,.
Sub BrandPOWERPACT
Temperature Rating (Deg.-13 to 158, -13 to 158 .
Terminal ConnectionI-Line, Lug
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range350 A Hold, 750 A, HOLD.
Trip TypeTHERMAL-MAGNETIC, Therm.
TypeThermal/Magnetic, 80% R.
UNSPSC39121616
UPC785901507291
UPC Code785901507291
Voltage Rating600 V, 600 VAC/250 VDC
Warranty DescriptionContractual Warranty:18.
Width104 mm, 104 in., 4.09
Wire Size14 to 3/0, 14 to 3/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG8PLJ1.4860755167SQUARE D1.4860755 @ 1
simplybreakers.comHJA36025979.99167Schneider Electric979.99 @ 1
thumbzoomRadwellHJA360251250.011SCHNEIDER ELECTRIC SQUARE D1250.0 @ 1
thumbzoomgordonelectricsupply.comHJA360251286.316710SQUARE D1286.3 @ 1
thumbzoomstandardelectricsupply.com22368861286.3167Square D (Schneider Electric)1286.3 @ 1
thumbzoomNewark20K01951286.311In StockSQUARE D BY SCHNEIDER ELECTRIC1286.31 @ 1
thumbzoomZoroG08550881415.99167Square D1415.99 @ 1
steinerelectric.com2817801424.39167Square D?1424.39 @ 1
us.rs-online.com709531781456.0511Square D1456.05 @ 1
thumbzoomcrescentelectric.com795482083.93167Square D by Schneider Electric2083.93 @ 1
thumbzoomsustainablesupply.comC30464332208.86167Square D5.592208.86 @ 1
Graybar250450142226.561In StockSquare D (Schneider Electric)2226.56 @ 1
thumbzoommostelectric.comHJA360252328.351In StockSQUARE D/TELEMECANIQUE2328.35 @ 1
