Schneider Electric HJA36035

B009SDVE46

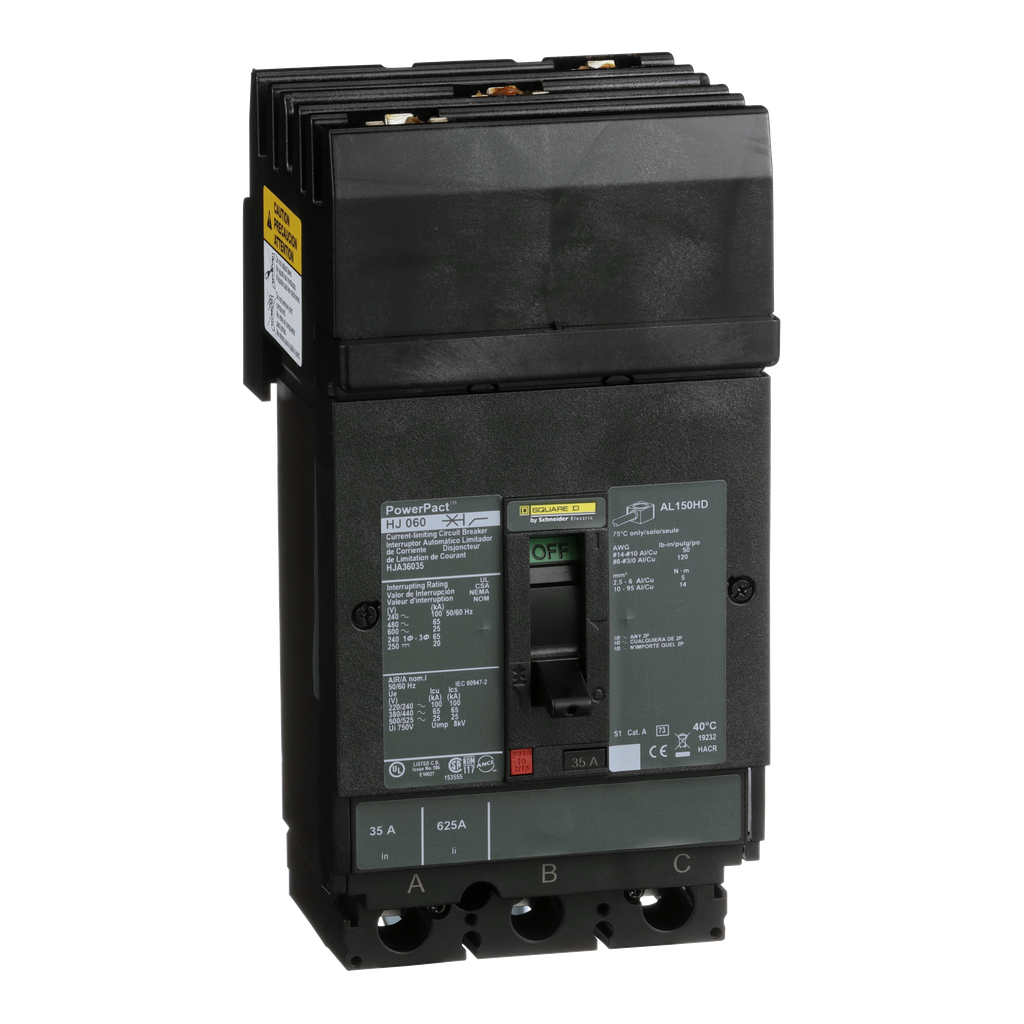

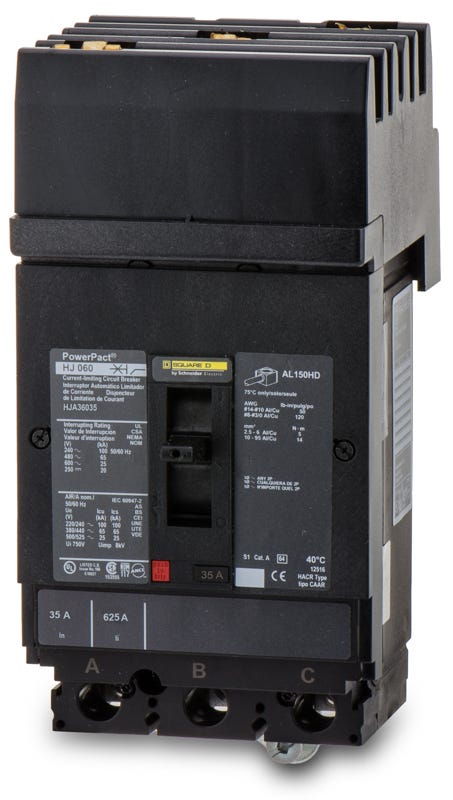

SCHNEIDER ELECTRIC HJA36035 Molded Case Circuit Breaker 600-Volt 35-Amp Electrical Box

SCHNEIDER ELECTRIC HJA36035 Molded Case Circuit Breaker 600-Volt 35-Amp Electrical Boxzoom

Attributes

Key Value
[Ics] Rated Service Bre.100 kA 220/240 V AC 50/.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating600VAC
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage Rating35
Amps35
ApplicationHACR rated Applications.
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity100 kA 240 V AC 50/60 H.
Breaking Capacity CodeJ
California Proposition .DINP, which is known to.
Catalog NumberHJA36035
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI2206027EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginMX - Mexico, Mexico
Current Rating35-35A, 35 A
Depth86 mm
Device Applicationdistribution
DisplayHJA36035 Circuit breake.
ECCNEAR99
Electrical ConnectionI-Line connection, line.
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant
Family NamePowerPact H Family
FeaturesMercury Free; PVC Free
FrameJ
Frame SizeH
Frame TypeH Frame
Gtin785901422396
Height163 mm, 4.5 in., 6.42
High Amp Trip Setting850 A
Interrupt Rating100 kA at 220/240V AC, .
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemMolded Case Circuit Bre.
Item Typecircuit breaker
Length16 mm, 4.8 IN
Line Rated Current35-35 A
Local Signallingswitched off (OFF) 1 tr.
Made in USANo
Magnetic Hold Current400 A
Magnetic Tripping Curre.850-850 A
ManufacturerSchneider Electric
Max. AIR Rating100 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height4.5 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting TypeI-Line
MpnHJA36035
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles3
Number of Poles3
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase ConnectionABC
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.3t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHJA, PowerPact H-Frame .
Special FeaturesI-Line
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range35 A,400 A,850 A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic
UNSPSC39121616
Upc785901422396
UPC785901422396
UPC Code785901422396
Utilisation Categorycategory A
Voltage Rating250 V DC-600 V AC, 600 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width4.09, 104 mm, 104 in.
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG8PLL1.4860755167SQUARE D1.4860755 @ 1
AmazonSCB009SDVE46351.12167Schneider Electric351.12 @ 1
thumbzoomsuperbreakers.comHJA36035919.011Square D919.0 @ 1
standardelectricsupply.com23932611082.51In StockSquare D1082.5 @ 1
thumbzoommayerelectric.comSQDHJA360351082.51In StockSQUARE D4.841082.5 @ 1
thumbzoomgordonelectricsupply.comHJA360351135.016710SQUARE D1135.0 @ 1
simplybreakers.comHJA360351149.991In StockSchneider Electric1149.99 @ 1
thumbzoomNewark20K01971215.621In StockSQUARE D BY SCHNEIDER ELECTRIC1215.62 @ 1
thumbzoomRadwellHJA360351250.011SCHNEIDER ELECTRIC SQUARE D1250.0 @ 1
thumbzoomZoroG08550971295.2816710Square D5.791295.28 @ 1
Graybar250499171401.60161In StockSquare D (Schneider Electric)1401.6016 @ 1
steinerelectric.com2412621424.39167Square D?1424.39 @ 1
us.rs-online.com709531821462.311Square D1462.3 @ 1
thumbzoomsustainablesupply.comC30464342025.3167Square D5.792025.3 @ 1
thumbzoomcrescentelectric.com995992083.93167Square D by Schneider Electric2083.93 @ 1
