Schneider Electric HJA36100

B00A2BQ1MI

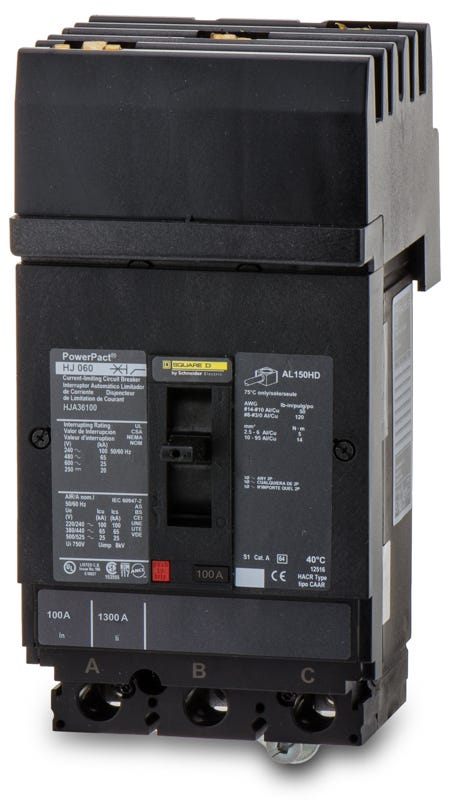

SCHNEIDER ELECTRIC 600-VOLT 100-AMP HJA36100 Molded CASE Circuit Breaker 600V 100A

SCHNEIDER ELECTRIC 600-VOLT 100-AMP HJA36100 Molded CASE Circuit Breaker 600V 100Azoom

Attributes

Key Value
100% RatedNo
AC Voltage Rating600VAC
Alarm SwitchNo
Amperage100A
Amperage Rating100
Amps100
ApplicationHACR rated Applications.
ApprovalUL Listed, CSA Certified
ApprovalsCE, CSA, IEC, UL
ASINB00A2BQ1MI
Auxiliary SwitchNo
AWG RangeAWG 14...AWG 3/0 alumin.
Batteries Included?No
Batteries Required?No
BrandSquare D, Square D by S.
BusbarNo
Catalog NumberHJA36100
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
Color FamilyBlack
ConnectionI-LINE CONNECTION (ON E.
Country of OriginMX - Mexico, Mexico
Current Rating100-100A, 100 A
Depth86 mm
DisplayHJA36100 Circuit breake.
ECCNEAR99
Family NamePowerPact H Family
Family SeriesSquare D Circuit Breake.
FeaturesMercury Free; PVC Free
FrameH-Frame
Frame SizeH
Frame TypeH Frame, H-Frame
Frequency Rating50/60HZ
Gross Weight0 lbs
Gtin785901600978
Height163 mm, 4.5 in., 6.42
High Amp Trip Setting1700 A
Included ComponentsHJA36100
Interrupt Rating100 kA at 220/240V AC, .
Is Discontinued By Manu.No
ItemMolded Case Circuit Bre.
Item model numberHJA36100
Item NumberHJA36100
Item Package Quantity1
Item TypeMolded Case Circuit Bre.
kAIC @ 240 VAC100
kAIC @ 250 VDC20
kAIC @ 480 VAC65
kAIC @ 600 VAC25
Length16 mm, 4.8 IN
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number458093
Max Voltage600 VAC
Max. AIR Rating100 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
Mounting TypePlug-On, I-Line
MpnHJA36100
National Stock Number5925-01-574-6082
Net Weight6.07 lbs
No. of Poles3
Number of Poles3
Operating Temperature-13F AND 158F (-25 C AN.
Part NumberHJA36100
Phase3
Phase ConnectionABC
Poles3
Product SeriesPowerPact H
Rated Voltage690V AC 50/60 Hz IEC 60.
RoHSYes
SeriesHJA, PowerPact H-Frame .
Shunt TripNo
Special FeaturesI-LINE PLUG-ON
StandardUL || CSA || NEMA || NO.
StandardsUL, CSA, NEMA, NOM, CE,.
Sub BrandPOWERPACT
Terminal ConnectionI-Line, Lug
Terminals IncludedLine and Load
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip RangeHOLD: 900A - TRIP: 1700A
Trip TypeTHERMAL-MAGNETIC, Therm.
Trip UnitFixed Thermal / Fixed M.
TypeThermal/Magnetic
Undervoltage ReleaseNo
UNSPSC39121616
Upc785901600978
UPC785901600978
UPC Code785901600978
Voltage600
Voltage Rating600 V, 600 VAC/250 VDC
Warranty DescriptionContractual Warranty:18.
Width4.09, 104 mm, 104 in.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG8PLU1.4860755167SQUARE D1.4860755 @ 1
thumbzoomAmazonB00A2BQ1MI383.29167Schneider Electric383.29 @ 1
simplybreakers.comHJA36100999.991In StockSchneider Electric999.99 @ 1
thumbzoomsuperbreakers.comHJA361001078.01In StockSquare D1078.0 @ 1
thumbzoomblackhawksupply.comHJA361001379.361In StockSquare D1379.36 @ 1
thumbzoomRadwellHJA361001400.016SCHNEIDER ELECTRIC SQUARE D1400.0 @ 1
thumbzoomgordonelectricsupply.comHJA361001439.616710SQUARE D1439.6 @ 1
standardelectricsupply.com11923801439.61In StockSquare D1439.6 @ 1
thumbzoomZoroG08548351469.016710Square D5.81469.0 @ 1
Graybar250406261568.683216Square D (Schneider Electric)1568.6832 @ 1
thumbzoomGalcoHJA36100-SQD1569.65167Square D6.071569.65 @ 1
steinerelectric.com2469111594.19167Square D?1594.19 @ 1
Newark20K02051606.381In StockSQUARE D BY SCHNEIDER ELECTRIC1606.38 @ 1
us.rs-online.com709531991637.65167Square D1637.65 @ 1
thumbzoomcrescentelectric.com1393152332.3713Square D by Schneider Electric2332.37 @ 1
thumbzoomsustainablesupply.comC30463342445.38167Square D5.82445.38 @ 1
thumbzoommostelectric.comHJA361002605.9211SQUARE D/TELEMECANIQUE2605.92 @ 1
