Magnecraft / Schneider 788XBXRC-24A

B07SLKB62B

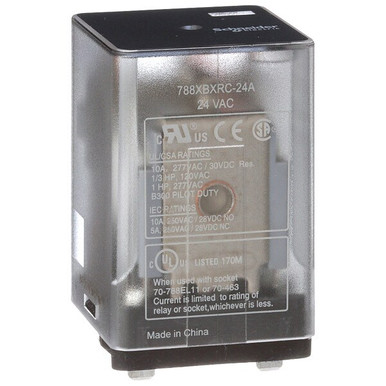

788XBXRC-24A, Electromechanical Relay 24VAC 72Ohm 10A DPDT ((35mm 35.7mm 50mm)) Socket

788XBXRC-24A, Electromechanical Relay 24VAC 72Ohm 10A DPDT ((35mm 35.7mm 50mm)) Socketzoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 277V, 10 A @ 277 V
Base Type - Plug In Rel.Square
Body Depth1.97 in
Body Depth - Relay1.38", 1.38 in
Body Height1.4 in
Body Height - Relay1.97", 1.97 in
Body Width1.38 in
Body Width - Relay1.40", 1.4 in
BrandSchneider Electric
Coil Voltage24 VAC
Coil Volts24VAC, 24V AC
Contact Current Rating10 A
Contact FormDPDT
Contact Form - RelayDPDT
Contact MaterialSilver Alloy
Contact Rating10A @ 277VAC/30VDC
Contact Voltage Rating300 VAC
Control Voltage24
Country of Origin00 - Unknown
Current Rating10 A
Current Stock97
DC Contact Rating - Rel.10A @ 28V, 10 A @ 28 V
Family SeriesSchneider Electric
FeaturesClear Cover
Flat Pin Width0.189 in
FunctionGeneral Purpose
Gross Weight0 lbs
HP @ 120V1/3 hp, 1/3
HP @ 240V1/2
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number788XBXRC-24A
Lead TimeExpected to ship in 1-2.
ManufacturerSchneider Electric
Manufacturer Part NumberC887399M
Mounting - RelayPlug In
Mounting TypeSocket Mount
Mpn788XBXRC-24A
Net Weight0 lbs
Number of Pins - Relay8
Overall Depth1.97 in
Overall Height - Relay1.97", 1.97 in
Power Consumption - Rel.3 VA, 3.0VA
Primary TypePower Relays
Product Header788 Series Power Relay
Push To TestNo
Relay TypeElectromechanical
Series788R Series, 788R
SKUZO-G9784397
Socket Code - RelayC
StandardsUL ; CSA ; CE, UL Liste.
Status IndicatorMechanical Flag
SubCategoryElectrical
TerminationQC Tabs
Voltage Rating300 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com788XBXRC-24A12.2191140Magnecraft / Schneider Electric12.219 @ 1
thumbzoomZoroG978439714.491216Schneider Electric0.1714.49 @ 1
grainger.caWWG35KR4917.34676341In StockSCHNEIDER ELECTRIC0.1717.3467634 @ 1
thumbzoomGalco788XBXRC-24A-MGCR20.5510In StockSchneider Electric20.55 @ 10
us.rs-online.com7036392022.910In StockSchneider Electric/Legacy Relays22.9 @ 10
thumbzoomsimsupply.comZO-G978439723.12197Schneider Electric23.12 @ 1
thumbzoomRaptor SuppliesAH4TMY27.98961751In StockSCHNEIDER ELECTRIC27.9896175 @ 1
Graybar2637402428.10081In StockSquare D (Schneider Electric)28.1008 @ 1
thumbzoomNewark13AC966229.1810In StockSCHNEIDER ELECTRIC/LEGACY RELAY29.18 @ 10
