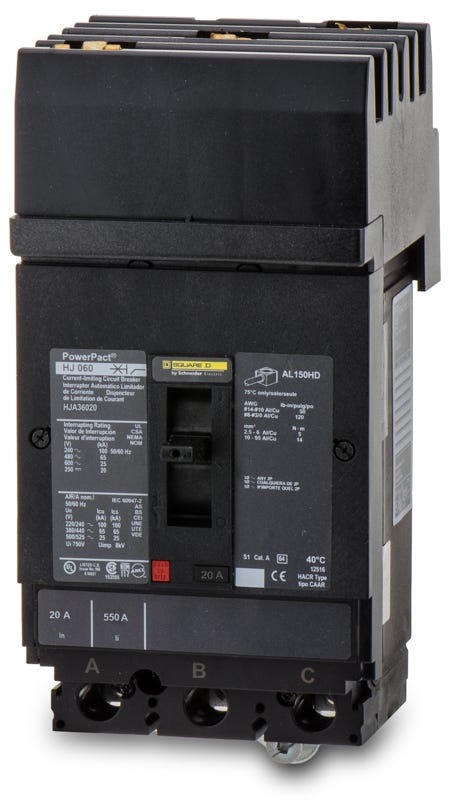

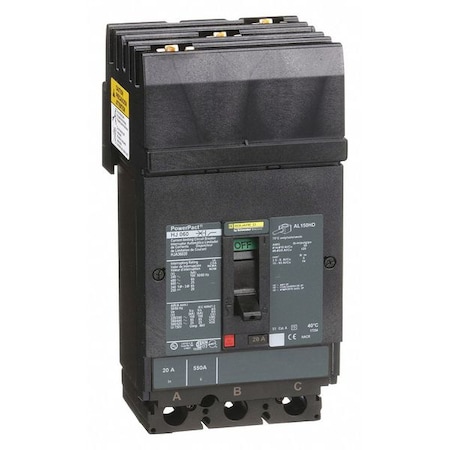

Square D HJA36020

B00KXK0ITA

HJA36020

HJA36020zoom

Attributes

Key Value
100% RatedNo
AC Voltage Rating600VAC
Alarm SwitchNo
Amperage20A
Amperage Rating20
Amps20
ApplicationHACR rated Applications.
ApprovalUL Listed, CSA Certified
ApprovalsCSA, UL
Auxiliary SwitchNo
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
BusbarNo
Catalog NumberHJA36020
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
Color FamilyBlack
ConditionNew
ConnectionI-LINE CONNECTION (ON E.
Country of OriginMX - Mexico, Mexico
Current Rating20-20A, 20 A
Depth86 mm
DisplayHJA36020 Circuit breake.
ECCNEAR99
Estimated Lead Time (in.6
Family SeriesSquare D Circuit Breake.
FeaturesMercury Free; PVC Free
FrameH-Frame
Frame SizeH
Frame TypeH-Frame
Frequency Rating50/60HZ
GFCINo
Gross Weight0 lbs
GTIN785901600947
Gtin785901600947
Height163 mm, 4.5 in., 6.42
High Amp Trip Setting750 A
Interrupt Rating100 kA at 220/240V AC, .
ItemMolded Case Circuit Bre.
Item NumberHJA36020
Item TypeMolded Case Circuit Bre.
kAIC @ 240 VAC100
kAIC @ 250 VDC20
kAIC @ 277/480 VAC65
kAIC @ 480 VAC65
kAIC @ 600 VAC25
Length16 mm, 4.8 IN
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberHJA36020
Max Voltage600 VAC
Max. AIR Rating100 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
Mounting TypePlug-On, I-Line
MpnHJA36020
Net Weight0 lbs
Neutral PoleNo
Neutral ProtectionNo
No. of Poles3
Number of Poles3
Operating Temperature-13F AND 158F (-25 C AN.
Phase3
Phase ConnectionABC
Poles3
Rated Voltage690V AC 50/60 Hz IEC 60.
RoHSYes
SeriesHJA
Shunt TripNo
Special FeaturesI-LINE PLUG-ON
StandardUL || CSA || NEMA || NO.
StandardsUL, CSA, NEMA, NOM, CE
Sub BrandPOWERPACT
Terminal ConnectionI-Line, Lug
Terminal TypeLugs Included
Terminals IncludedLine and Load
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip RangeHOLD: 350A - TRIP: 750A
Trip TypeTHERMAL-MAGNETIC, Therm.
Trip UnitFixed Thermal / Adj. Ma.
Undervoltage ReleaseNo
UNSPSC39121616
Upc785901600947
UPC785901600947
Voltage600
Voltage Rating600 VAC/250 VDC
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width4.09, 104 mm, 104 in.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG8PLH1.4860755167SQUARE D1.4860755 @ 1
AmazonSCB009OYDMPI400.0167Square D400.0 @ 1
thumbzoomsuperbreakers.comHJA36020889.0118Square D889.0 @ 1
simplybreakers.comHJA36020899.991In StockSchneider Electric899.99 @ 1
standardelectricsupply.com11923691074.51In StockSquare D1074.5 @ 1
thumbzoomgordonelectricsupply.comHJA360201135.016710SQUARE D1135.0 @ 1
thumbzoomNewark20K01941215.621In StockSQUARE D BY SCHNEIDER ELECTRIC1215.62 @ 1
thumbzoomblackhawksupply.comHJA360201232.211In StockSquare D1232.21 @ 1
thumbzoomRadwellHJA360201250.011SCHNEIDER ELECTRIC SQUARE D1250.0 @ 1
thumbzoomindustrialrefrigerationparts.comHJA360201291.361In StockSquare D2.01291.36 @ 1
thumbzoomZoroG08550791327.6616745Square D5.681327.66 @ 1
Graybar250450131401.601611Square D (Schneider Electric)1401.6016 @ 1
thumbzoomGalcoHJA36020-SQD1523.651In StockSquare D1523.65 @ 1
thumbzoomcrescentelectric.com21972083.93167Square D by Schneider Electric2083.93 @ 1
thumbzoomsustainablesupply.comC30463582151.89167Square D5.682151.89 @ 1
thumbzoommostelectric.comHJA360202328.3512SQUARE D/TELEMECANIQUE2328.35 @ 1
